5 | About the units and options
Installer reference guide
28
ERLA11~16DAV3+W1 + EBVH16SU23DJ
Daikin Altherma 3 R F
4P655196-1 – 2021.09
5 About the units and options
INFORMATION
EBVH16SU23DJ6V is a heating only model. Therefore, all references to cooling in this
document are NOT applicable.
In this chapter
5.1 Identification........................................................................................................................................................................... 28
5.1.1 Identification label: Outdoor unit .......................................................................................................................... 28
5.1.2 Identification label: Indoor unit ............................................................................................................................. 29
5.2 Combining units and options.................................................................................................................................................. 29
5.2.1 Possible options for the outdoor unit.................................................................................................................... 29
5.2.2 Possible options for the indoor unit ...................................................................................................................... 29
5.2.3 Possible combinations of indoor unit and outdoor unit ....................................................................................... 32
5.1 Identification

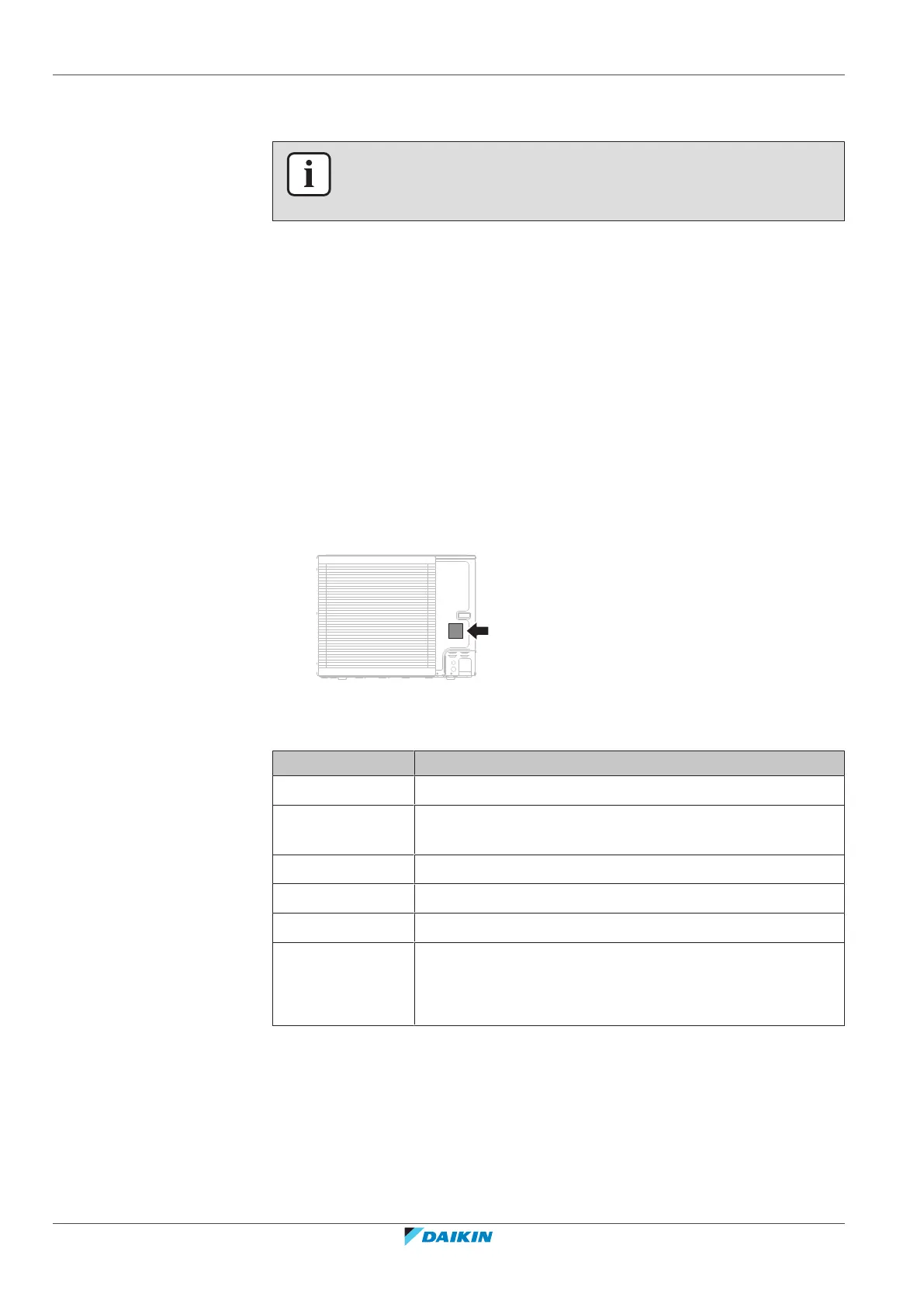

5.1.1 Identification label: Outdoor unit
Location
Model identification
Example: ERLA16DAV3
Code Explanation
ER European refrigerant split outdoor pair heat pump
L Low water temperature – ambient zone 2 (see operation
range)
A Refrigerant R32
16 Capacity class
DA Model series
V3 Power supply:
V3=1N~, 230VAC, 50Hz
W1=3N~, 400VAC, 50Hz
