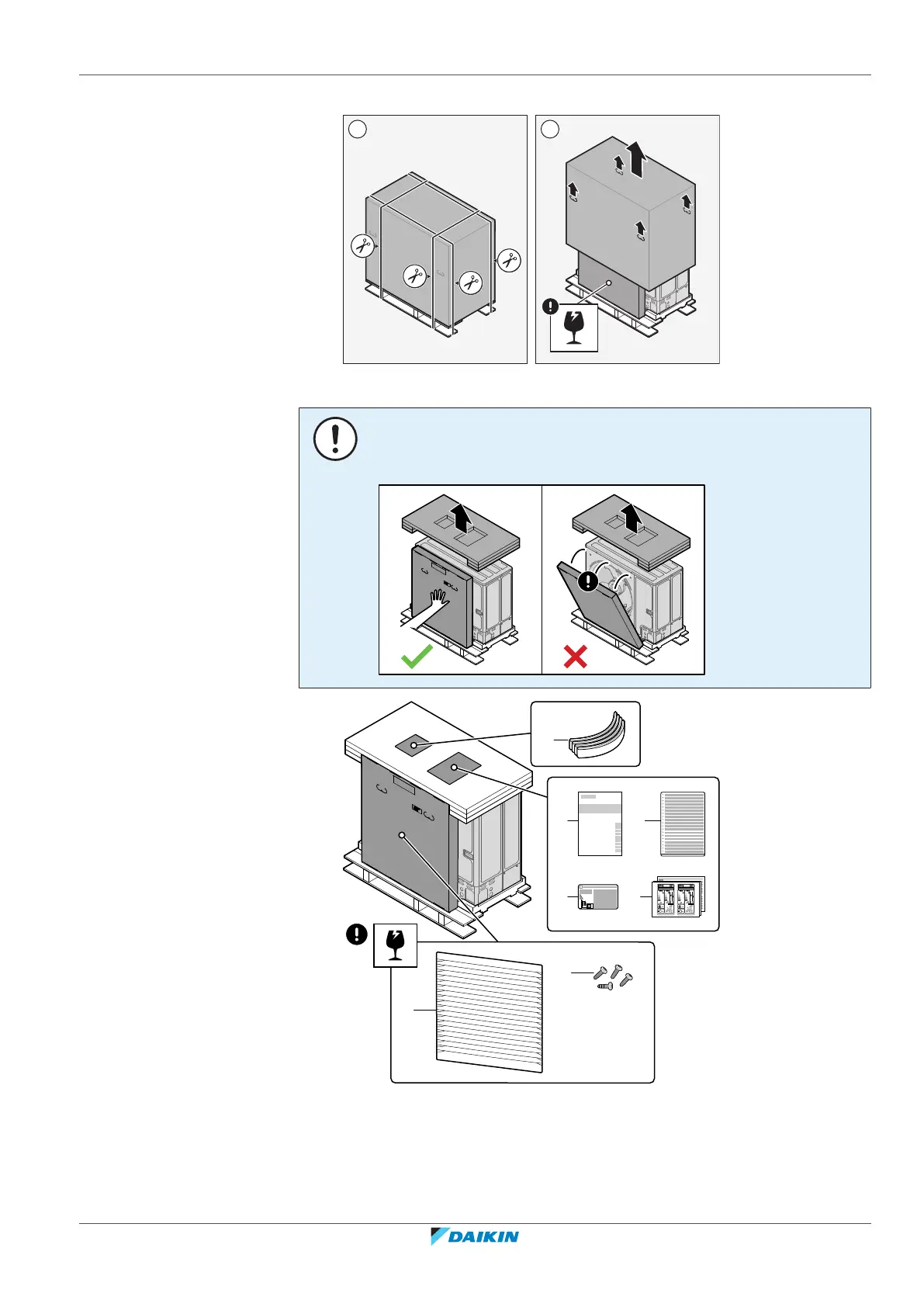

2 When you are near the final installation position, remove the cardboard box.
1 2
3 Remove the accessories and top packaging.
NOTICE
Unpacking – Top packaging. When you remove the top packaging, hold the box
containing the discharge grille to prevent it from falling.
a
cb
d e
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
f
g
a Sling to carry the unit
b Installation manual – Outdoor unit
c Multilingual fluorinated greenhouse gases label
d Fluorinated greenhouse gases label
e Energy labels
f Discharge grille
g Screws for discharge grille
