7 | Unit installation
Installer reference guide
74
ERLA11~16DAV3+W1 + EBVH16SU23DJ
Daikin Altherma 3 R F
4P655196-1 – 2021.09

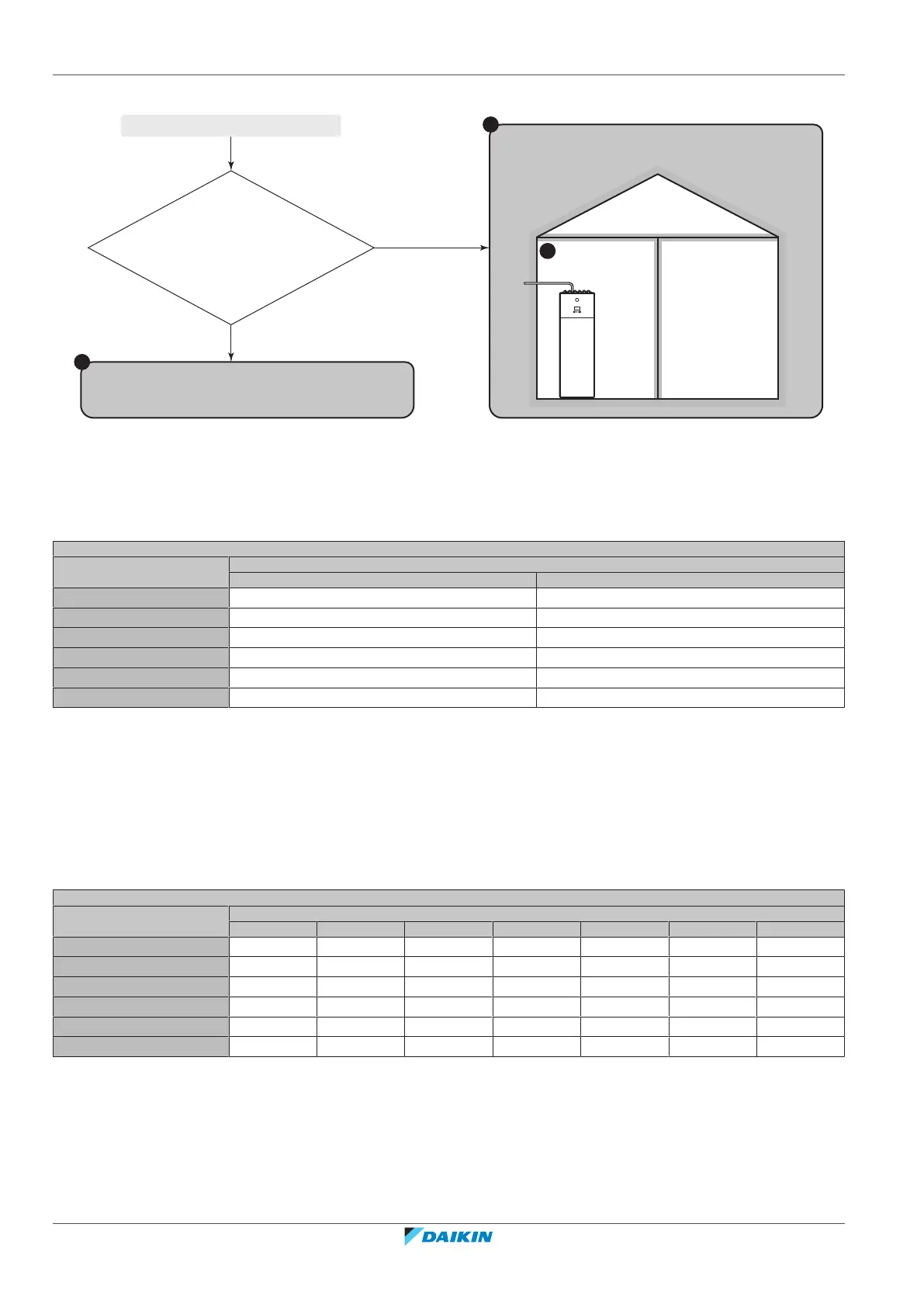

PATTERN 3
No
Yes
START PATTERN 3
A
You can install the unit in room A if you lead the chimney outside
the building.
3a
You CANNOT install the unit in the room. Place the unit in a larger
room.
3b
See table 3:
Is it possible to lead a chimney
outside the building respecting the maximum
chimney length?
Tables for PATTERN 1, 2 and 3
Table 1: Minimum floor area
For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is
4.3kg, use the row of 4.5kg.
Minimum floor area (m²)
Charge (kg) Release height without chimney (m)
1.66 (Unit=180l) 1.86 (Unit=230l)
3.8 16.04 12.76
4 17.77 14.14
4.5 22.49 17.90
5 27.76 22.09
5.5 33.59 26.73
5.8 37.36 29.73
Table 2: Minimum release height
Take the following into account:
• For intermediate floor areas, use the column with the lower value. Example: If the floor area is 22.50m², use the
column of 20.00m².
• For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is
4.3kg, use the row of 4.5kg.
• (*): The release height of the unit without chimney (for 180l units: 1.66m; for 230l units: 1.86m) is already
higher than the minimum required release height. => OK (no chimney needed).
Minimum release height (m)
Charge (kg) Floor area (m²)
5.00 10.00 15.00 20.00 25.00 30.00 35.00
3.8 3.30 2.10 1.72 (*) (*) (*) (*)
4 3.47 2.21 1.81 (*) (*) (*) (*)
4.5 3.91 2.49 2.03 1.76 (*) (*) (*)
5 4.34 2.77 2.26 1.96 1.75 (*) (*)
5.5 4.78 3.04 2.49 2.15 1.93 1.76 (*)
5.8 5.04 3.21 2.62 2.27 2.03 1.85 1.72
