5 | About the system
Installer and user reference guide
26
FAA71+100BUV1B
Split system air conditioner
4P654517-1 – 2021.03

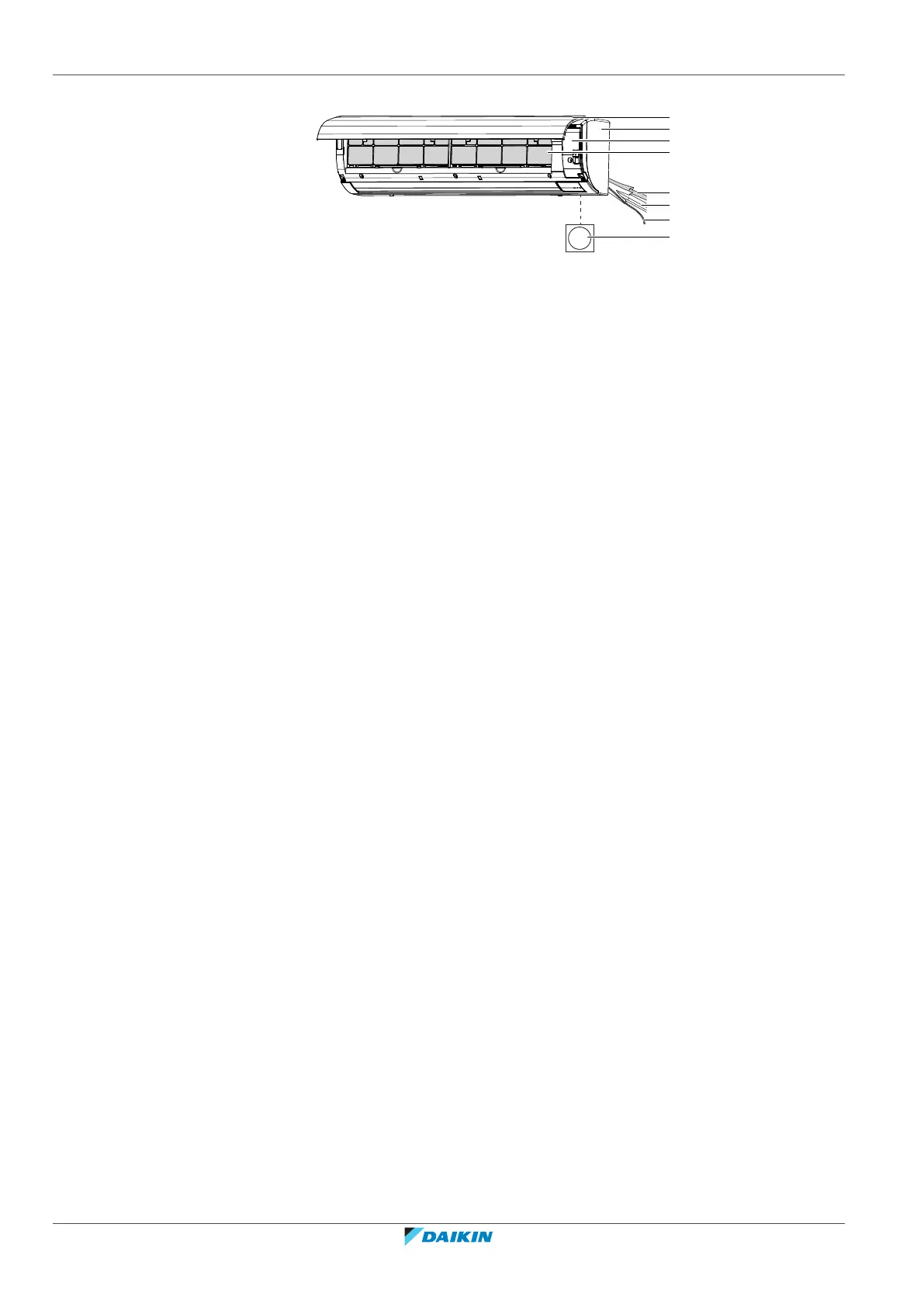

e Drain pipe
a
c
d
b
e
f
g
h
a Front panel
b Front grille
c Service cover
d Air filters
e Drain hose
f Refrigerant pipes
g Electrical wiring
h User interface
