15 About the units and options
In this chapter
15.1 Identification........................................................................................................................................................................... 47
15.1.1 Identification label: Indoor unit ............................................................................................................................. 47
15.2 About the indoor unit ............................................................................................................................................................. 47
15.3 System layout.......................................................................................................................................................................... 48
15.4 Combining units and options.................................................................................................................................................. 49
15.4.1 Possible options for the indoor unit ...................................................................................................................... 49
15.1 Identification

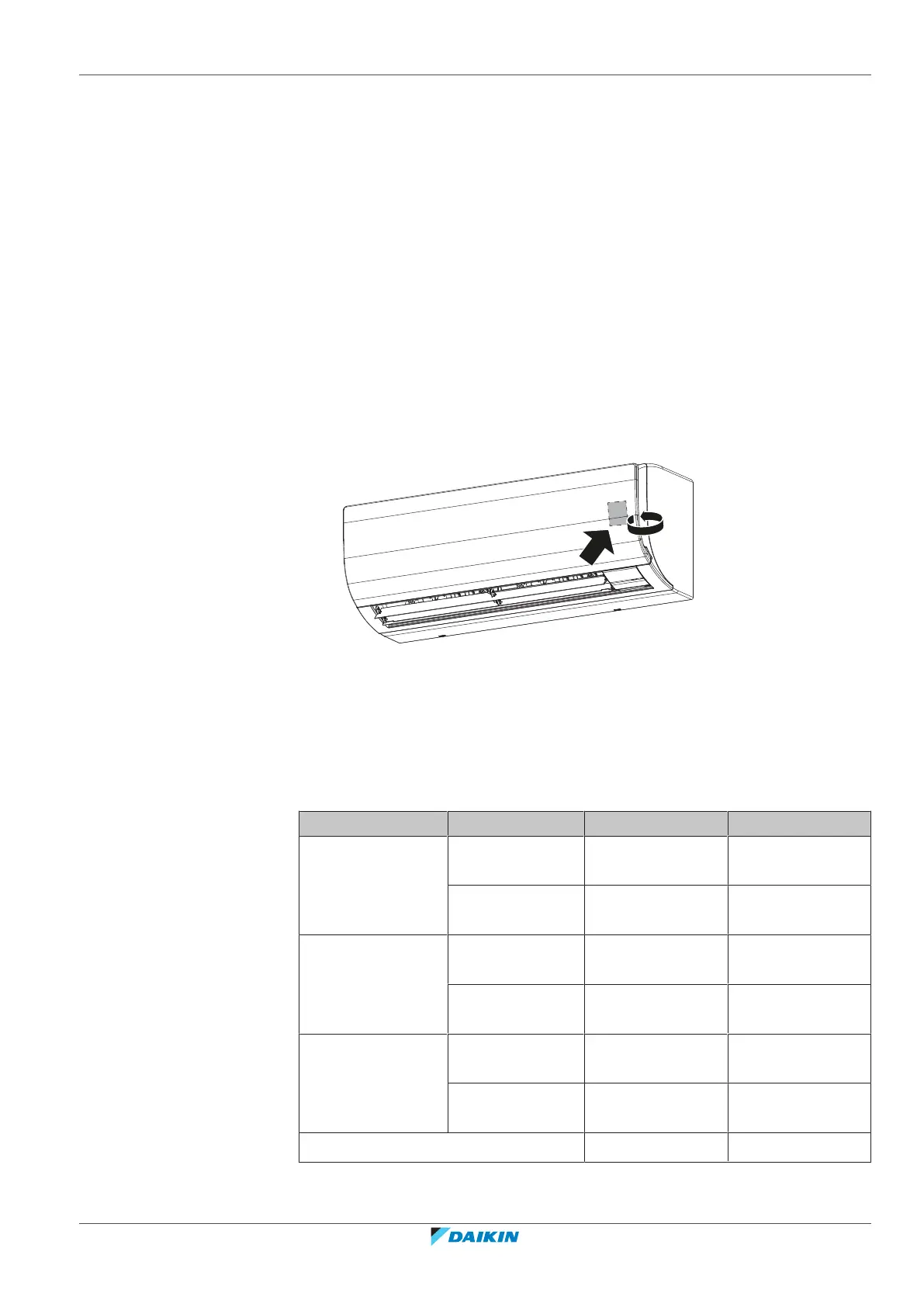

15.1.1 Identification label: Indoor unit
Location
15.2 About the indoor unit
Use the system in the following temperature and humidity ranges for safe and
effective operation.
For combination with R410A outdoor unit, refer to the following table:
Outdoor units Cooling Heating
RZQ200 Outdoor
temperature
–5~46°C DB –15~15°C WB
Indoor
temperature
14~28°C WB 10~27°C DB
RZQG71~140 Outdoor
temperature
–15~50°C DB –20~15.5°C WB
Indoor
temperature
12~28°C WB 10~27°C DB
RZQSG71~140 Outdoor
temperature
–15~46°C DB –15~15.5°C WB
Indoor
temperature
14~28°C WB 10~27°C DB
Indoor humidity ≤80%
(a)
—
