16 | Unit installation
Installer and user reference guide
54
FAA71+100BUV1B
Split system air conditioner
4P654517-1 – 2021.03
16.2.5 To open the service cover
1 Remove 1 screw from the service cover.
2 Pull out the service cover horizontally away from the unit.
a Service cover screw
b Handle
c Service cover
3 Remove 1 screw from the shield plate.
4 Pull out the shield plate horizontally away from the unit.
a Shield plate
b Screw

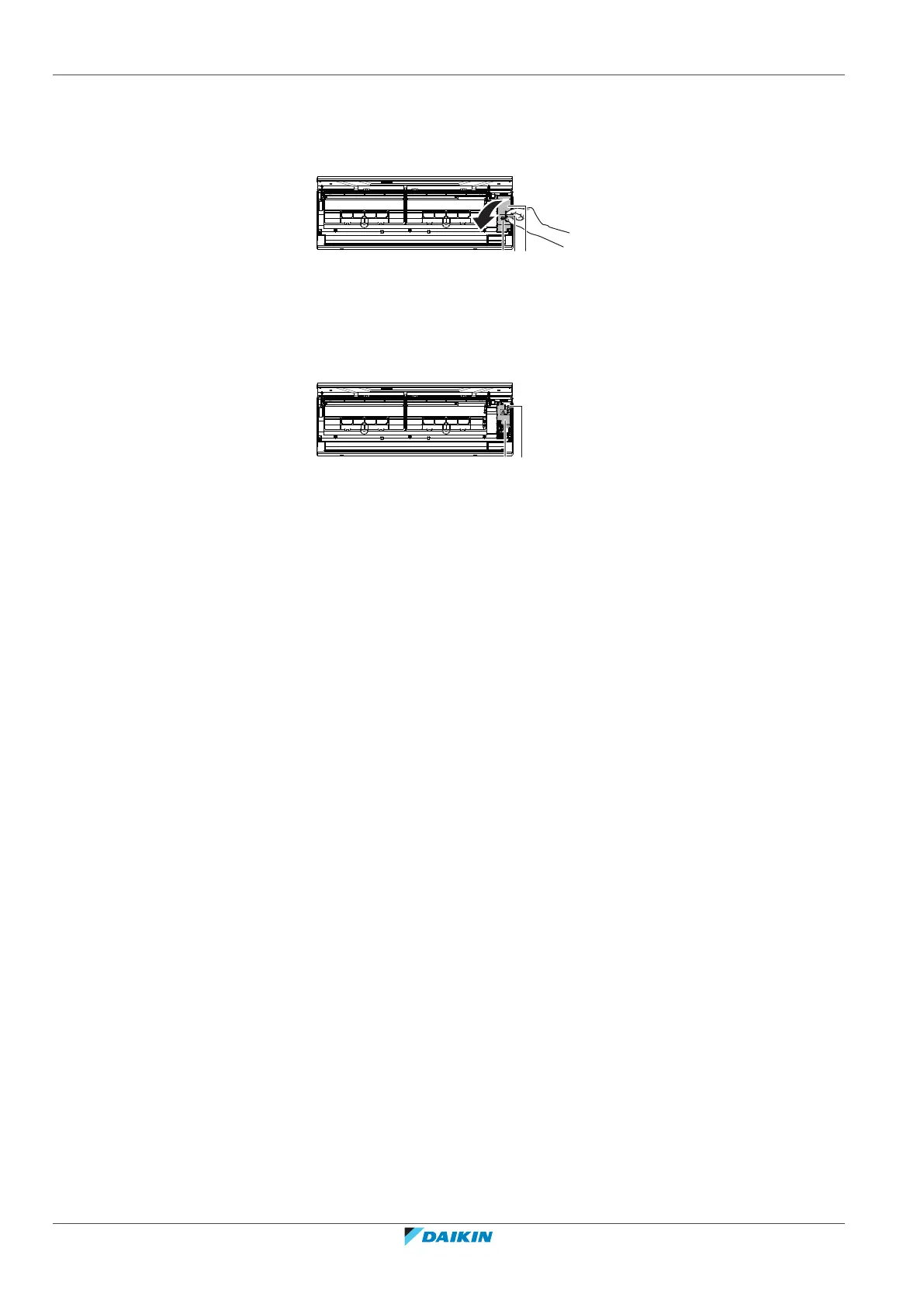

16.2.6 To close the service cover
1 Place the shield plate to its original place on the unit.
2 Install 1 screw back on the shield plate.
3 Place the service cover to its original place on the unit.
4 Install 1 screw back on the service cover.
16.3 Mounting the indoor unit
In this chapter
16.3.1 To install the mounting plate................................................................................................................................. 54
16.3.2 To drill a wall hole .................................................................................................................................................. 56
16.3.3 To remove the pipe port cover.............................................................................................................................. 57
16.3.4 To hook the unit on the mounting plate ............................................................................................................... 58
16.3.5 To pass the pipes through the wall hole................................................................................................................ 58
16.3.6 To provide drainage ............................................................................................................................................... 59
16.3.1 To install the mounting plate
1 Remove the mounting plate from the unit.
▪ Remove 2 screws from class 71 or 1 screw from class 100.
▪ Push the knobs in the direction of the arrow.
▪ Remove the mounting plate.
