Daikin FAA100BUV1B - To Re-Install the Front Grille

16 | Unit installation
Installer and user reference guide
53
FAA71+100BUV1B
Split system air conditioner
4P654517-1 – 2021.03

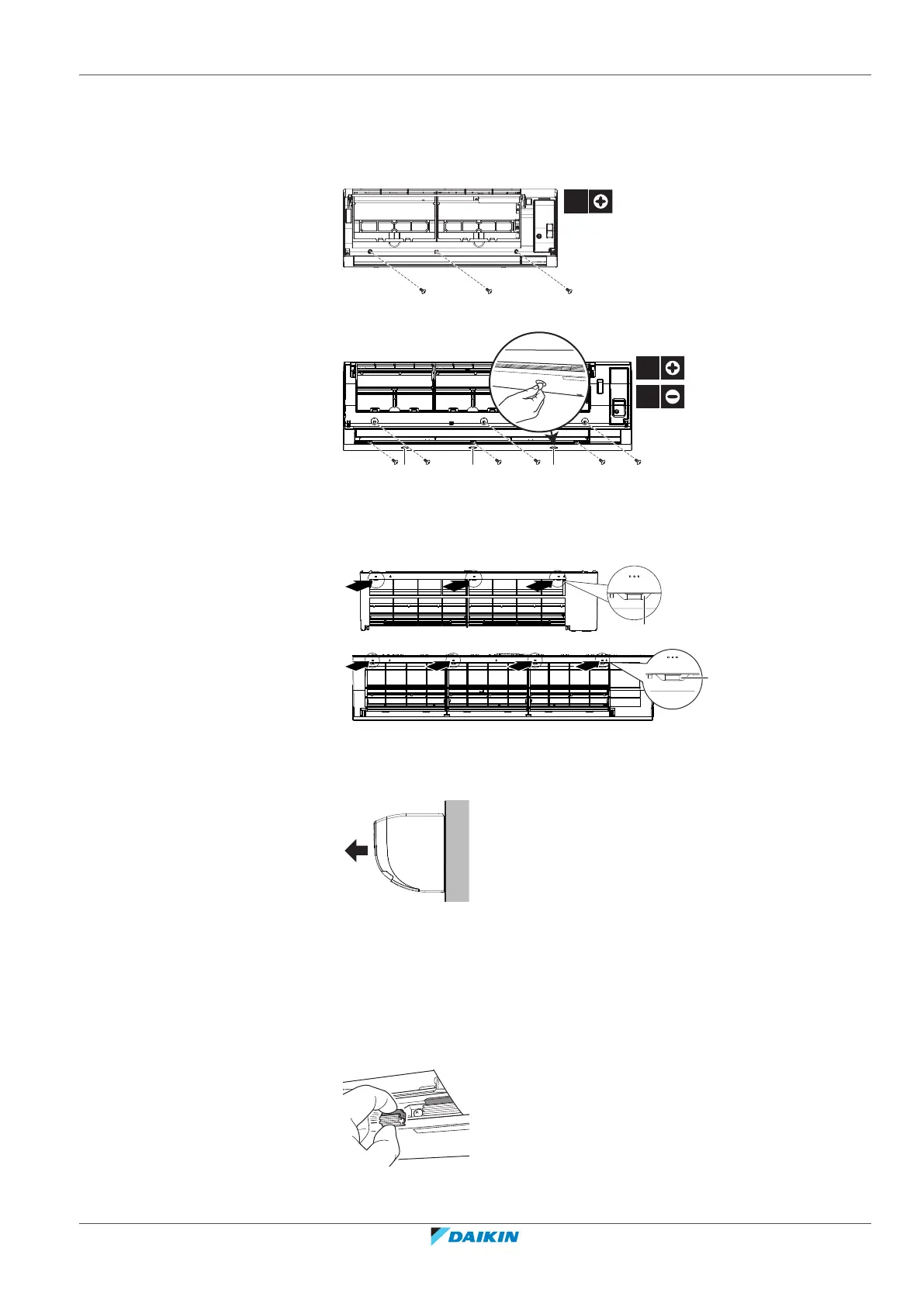

1 Remove the front panel ("16.2.1To remove the front panel"[452]).
2 Remove the screws (3 for class 71, 6 for class 100) and remove grille clamps
(only for class 100) with the flat screwdriver or a coin.
▪ 3 for class 71:
3×
▪ 6 for class 100:
6×
3×
aa a
a Grille clamps
3 Push down the upper hooks marked with a symbol with 3 circles in the
direction of the arrows (3 for class 71, 4 for class 100).
a
a
a Hook
4 Making sure not to catch the horizontal flaps, remove the front grille by
pulling in the direction of the arrow.
16.2.4 To re-install the front grille
1 Install the front grille and firmly engage the upper hooks (3 for class 71, 4 for
class 100).
2 Install the screws back (3 for class 71, 6 for class 100).
3 For class 100, re-install grille clamps and install the 3 screw covers (accessory).
4 Re-install front panel ("16.2.2To re-install the front panel"[452]).
