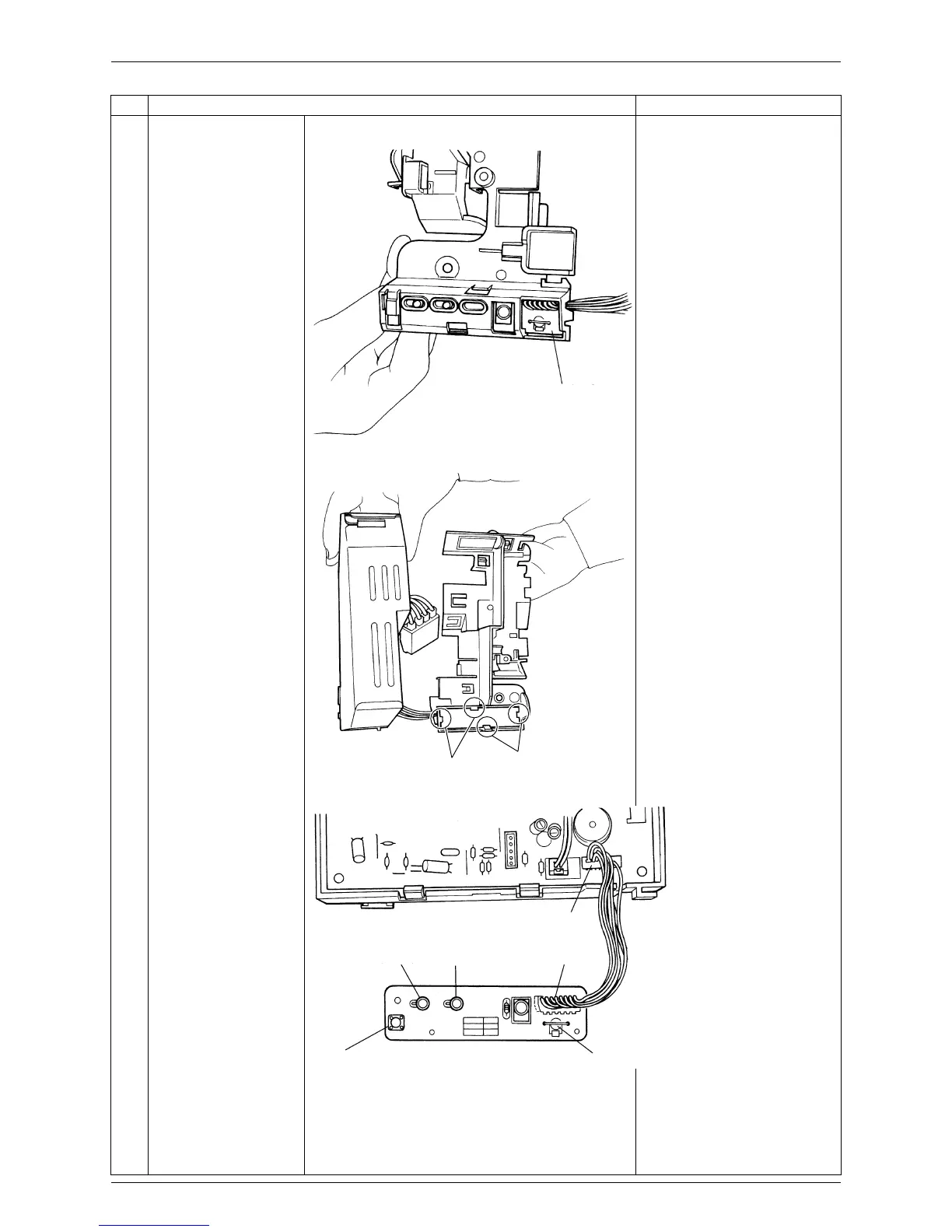

Si04-960 Removal of Electrical Box / PCB / Swing Motor
Removal Procedure 11
4
Disengage the 4 hooks
on the back of the
signal receiver PCB.
5
Signal receiver PCB
Step Procedure Points
Signal receiver PCB
(R10740)
(R2539)
Hook
Hook
[S26]
[S27]
LED1
(Green)
LED2
(Yellow)
[SW7]
ON/OFF button
Thermistor
(R18641)
