Daikin FTE09JV2S - Page 14

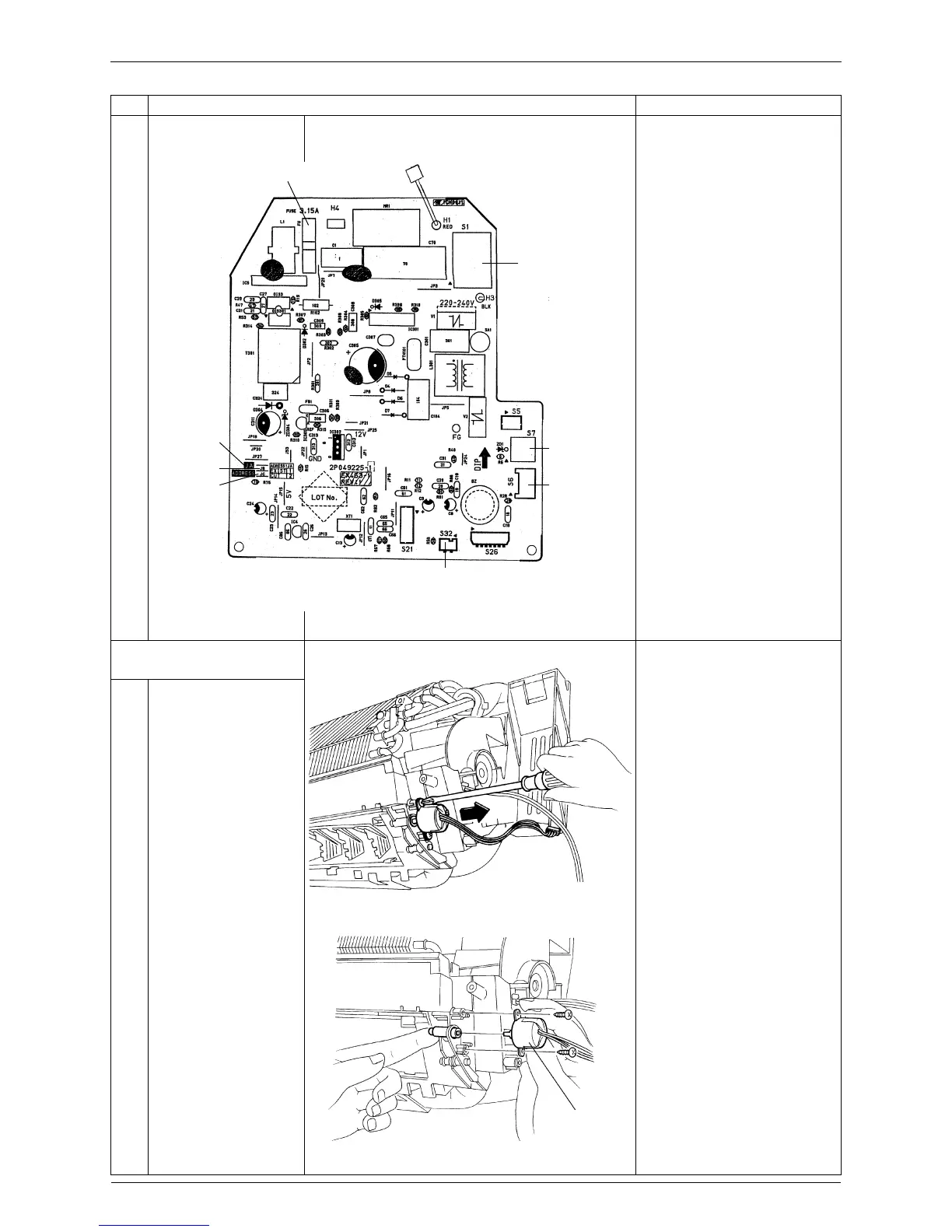

Removal of Electrical Box / PCB / Swing Motor Si04-960
12 Removal Procedure
6
Control PCB
3. Remove the swing motor
assembly.
1
To remove the swing
motor assembly,
remove the 2 screws.
Step Procedure Points
JB
JC
[S1] (Fan motor)
Glass tube fuse 3.15A 250V
(R18642)
[S7]
(Fan motor)
[S6]
(Swing motor)
[S32]
(Indoor heat exchanger thermistor)
JA
(Address)
(R2542)
Swing motor
(R2543)
