Daikin FTE35KV16 - Removal of PCBs

Si041048 Removal of Electrical Box
Removal Procedure 11
Step Procedure Points
5

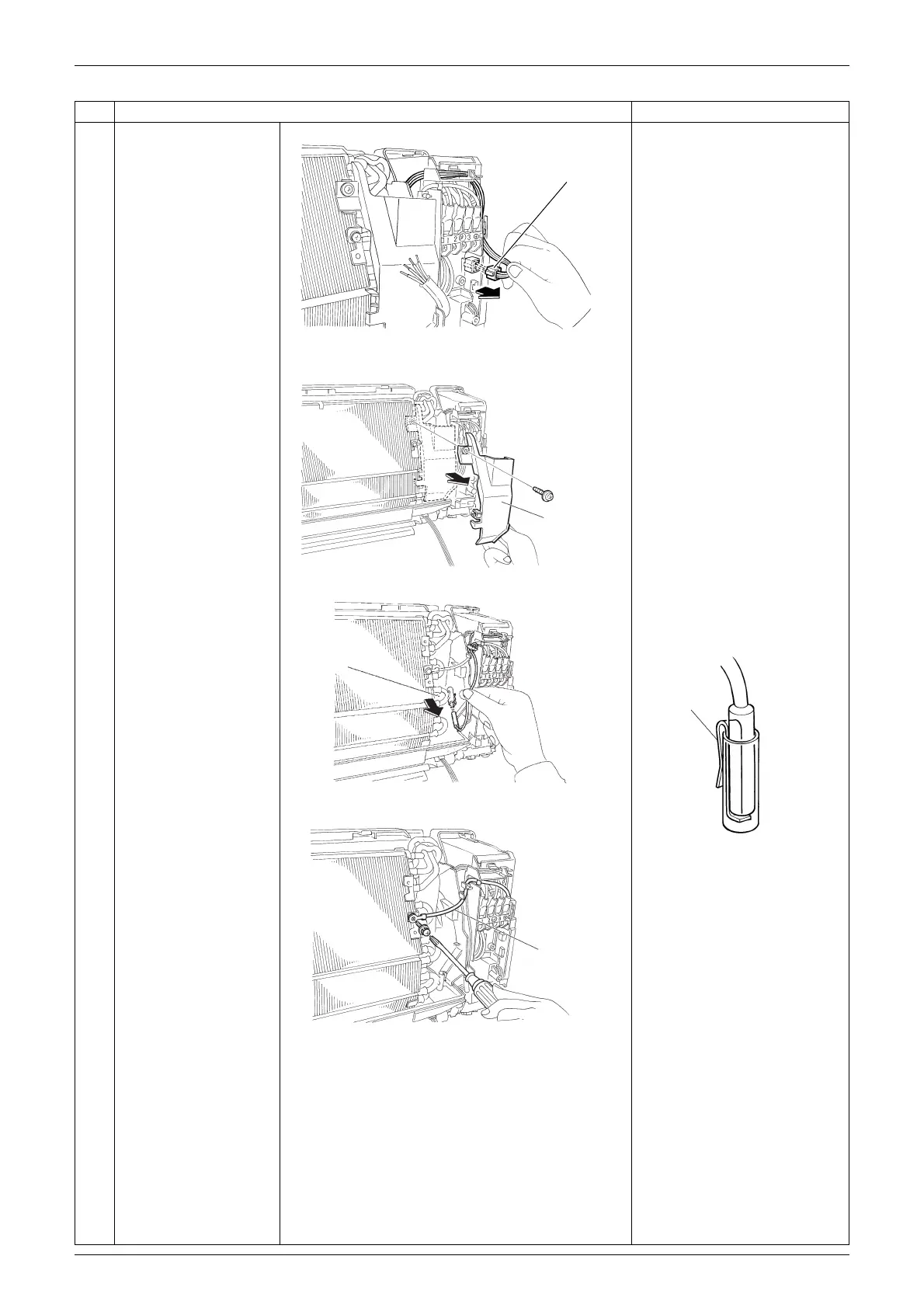

Disconnect the
connector for the fan
motor [S7].

Some models have no
harness for [S7].
6
7
8
Remove the screw and
remove the drip proof
plate.
Pull out the indoor heat
exchanger thermistor.
Remove the screw of
the earth wire.

Be careful not to lose the
clip for the thermistor.
(R11470)
[S7]
(R10880)
Drip proof plate
Indoor heat
exchanger
thermistor
(R17236)
(R10882)
Earth wire
Clip
(R11234)
