Daikin FTE35KV16 - Remove Service Cover; Detach Front Grille; Removal of Horizontal Blades; Vertical Blades

Si041048 Removal of Front Grille
Removal Procedure 5

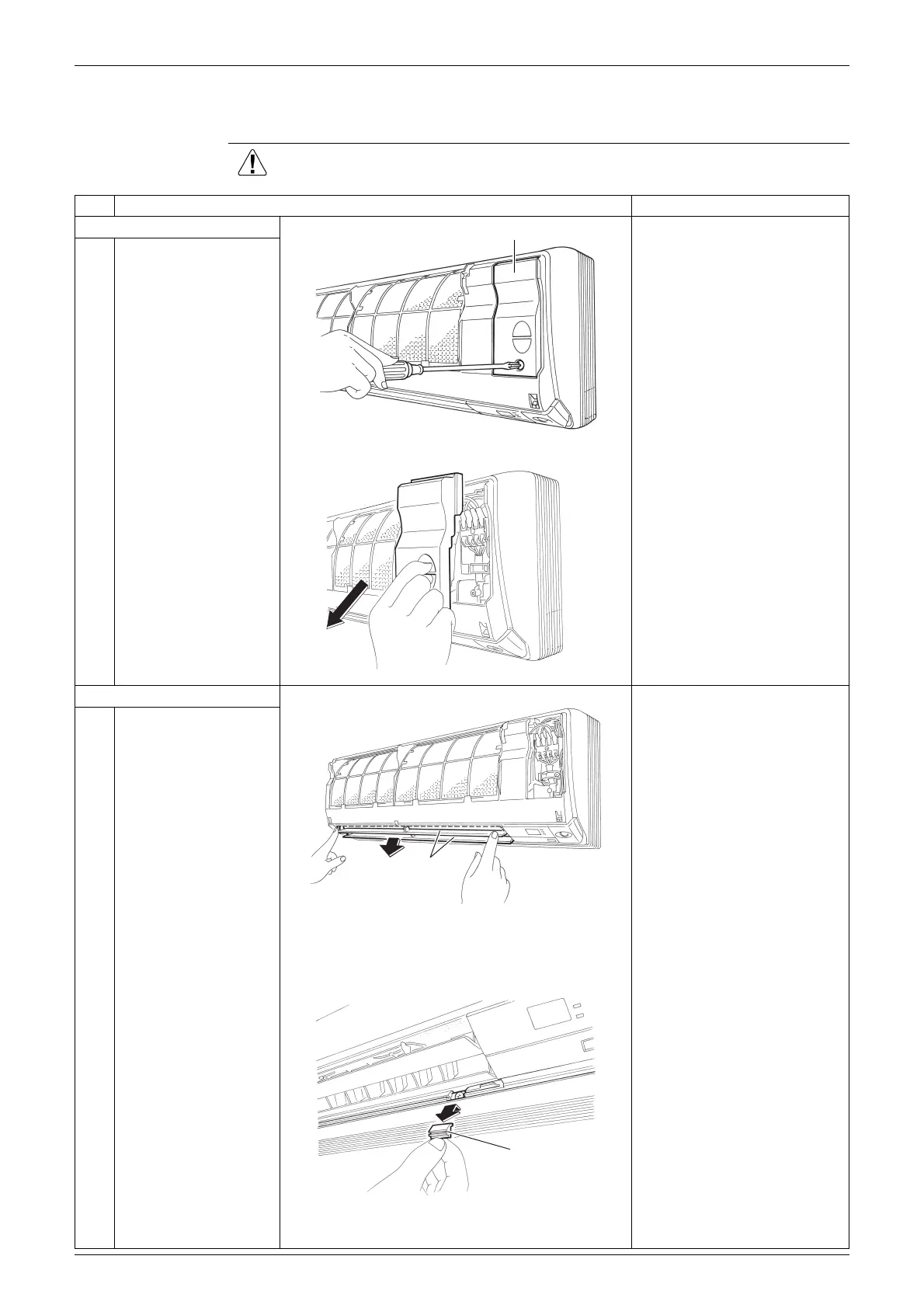

3. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the service cover. Preparation

Remove the front panel
according to the “Removal
of Front Panel.”
1
Remove the screw of
the service cover.
2
Remove the service
cover.

You can remove the front
grille without detaching the
service cover.
2. Remove the front grille.
1
Open the horizontal
blades.
2
Remove the 2 screw
covers.
(R4317)
(R4318)
Service cover
(R4320)
Horizontal blade
(R4321)
Screw cover
