Daikin FTE35KV16 - Remove Right Side Plate; Remove Fan Motor Fixing Plate Screws

Removal of Fan Rotor Si041048
28 Removal Procedure

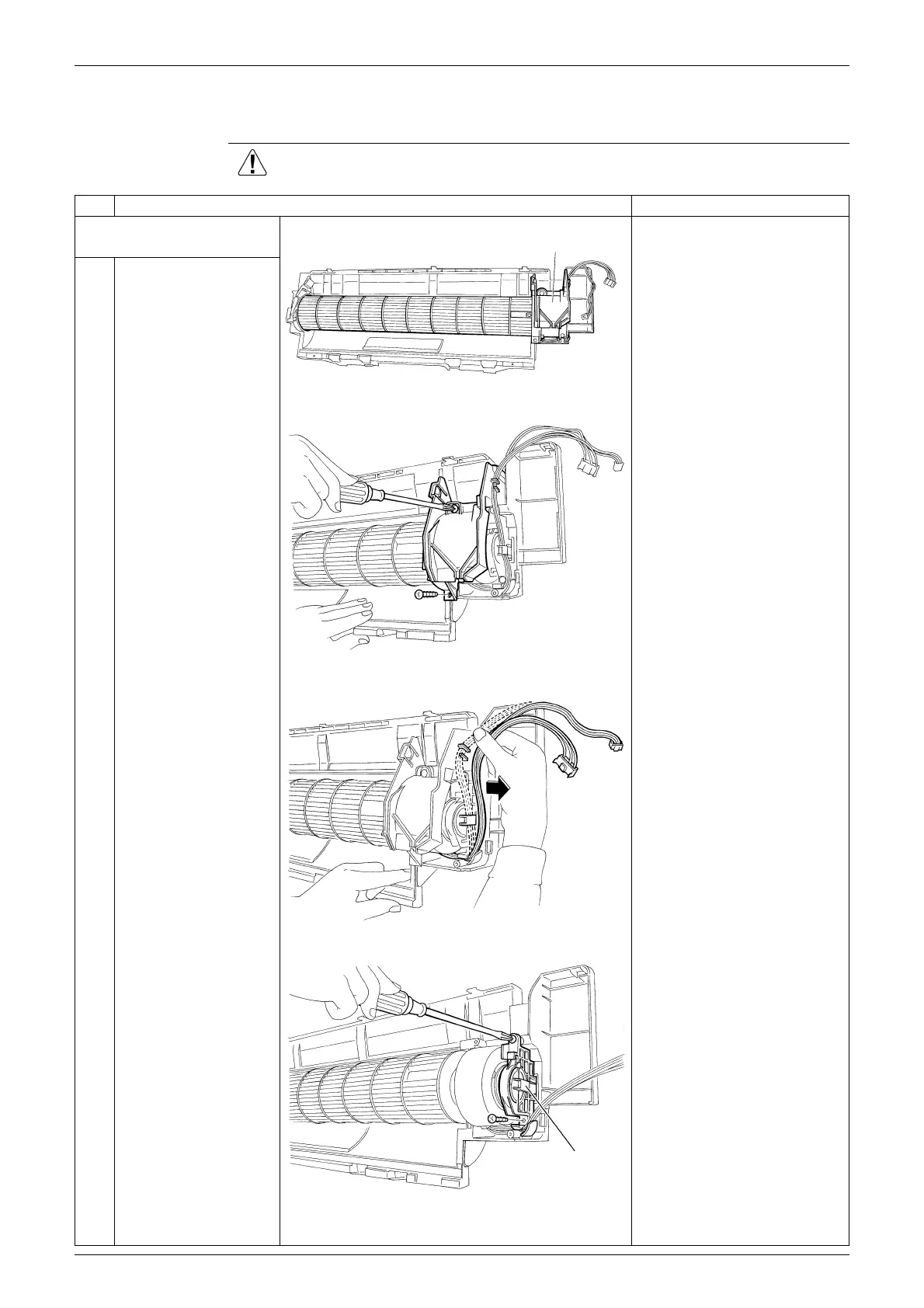

10.Removal of Fan Rotor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
plate.
Preparation

Remove the indoor heat
exchanger according to the
“Removal of Indoor Heat
Exchanger.”
1
Remove the 2 screws
of the right side plate.
2
Release the fan motor
lead wires from the
hooks and remove the
right side plate.
3
Remove the 2 screws
of the fan motor fixing
plate.
(R4406)
Right side plate
(R4407)
(R4408)
Fan motor
fixing plate
(R4409)
