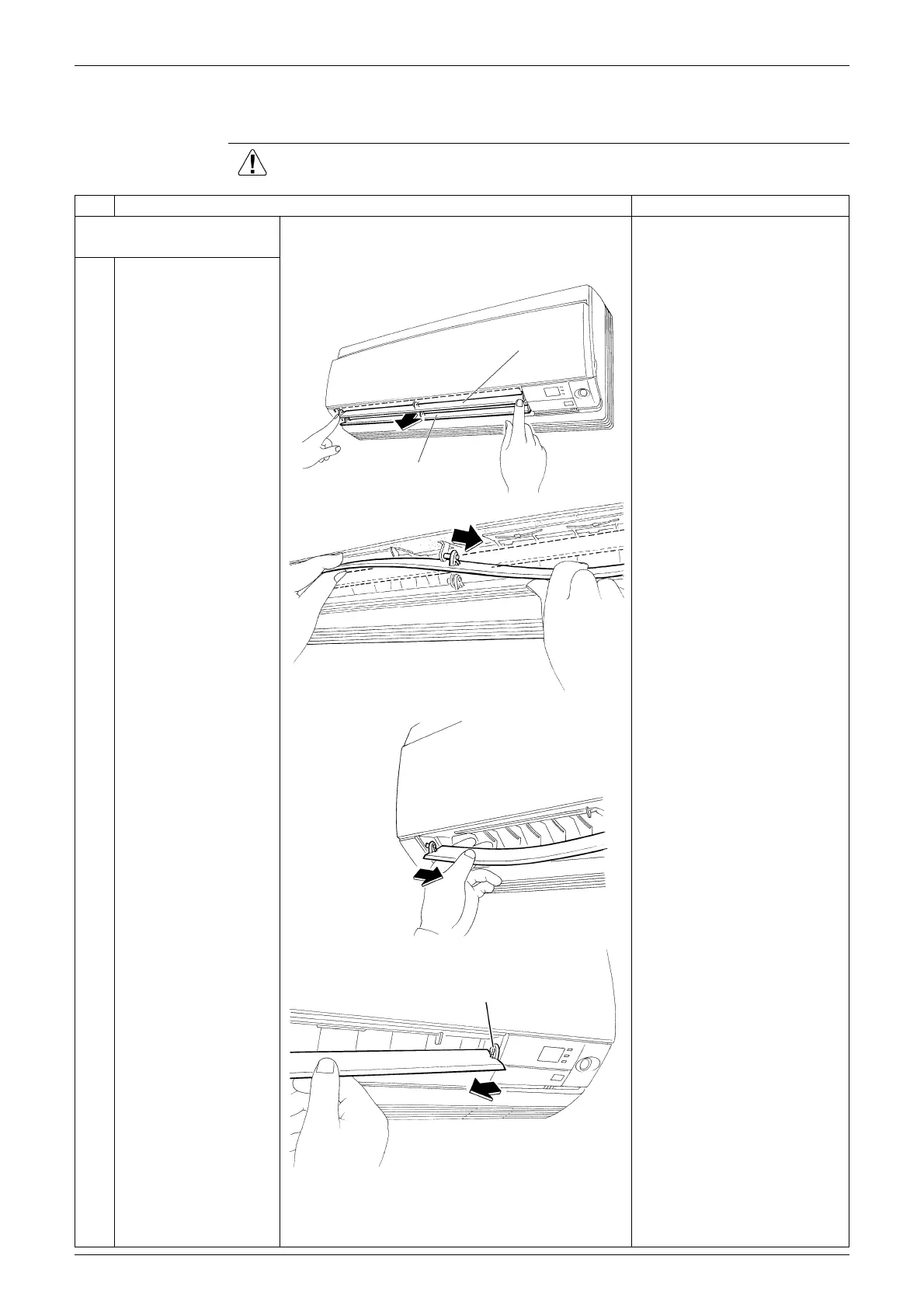

Daikin FTE35KV16 - Remove Large Horizontal Blade

Si041048 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 7
4. Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the horizontal
blade (large).
1
2
3
4
Open the horizontal
blade (large).
Unfasten the center
shaft while bending the
horizontal blade (large)
slightly.
Unfasten the left shaft.
Unfasten the right shaft.

When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
Do not put them in the
wrong place.

There is a key alignment at
the right shaft. When
reassembling, insert the
right shaft first while turning.

After inserting the right
shaft, mount the horizontal
blade to the center shaft and
then to the left shaft.
Horizontal blade (small)
Horizontal blade (large)
(R11233)
(R4329)
(R4330)
Key alignment
(R4331)
