Daikin FTE35KV16 - Remove Small Horizontal Blade; Removal of Electrical Box

Removal of Horizontal Blades / Vertical Blades Si041048
8 Removal Procedure
Step Procedure Points

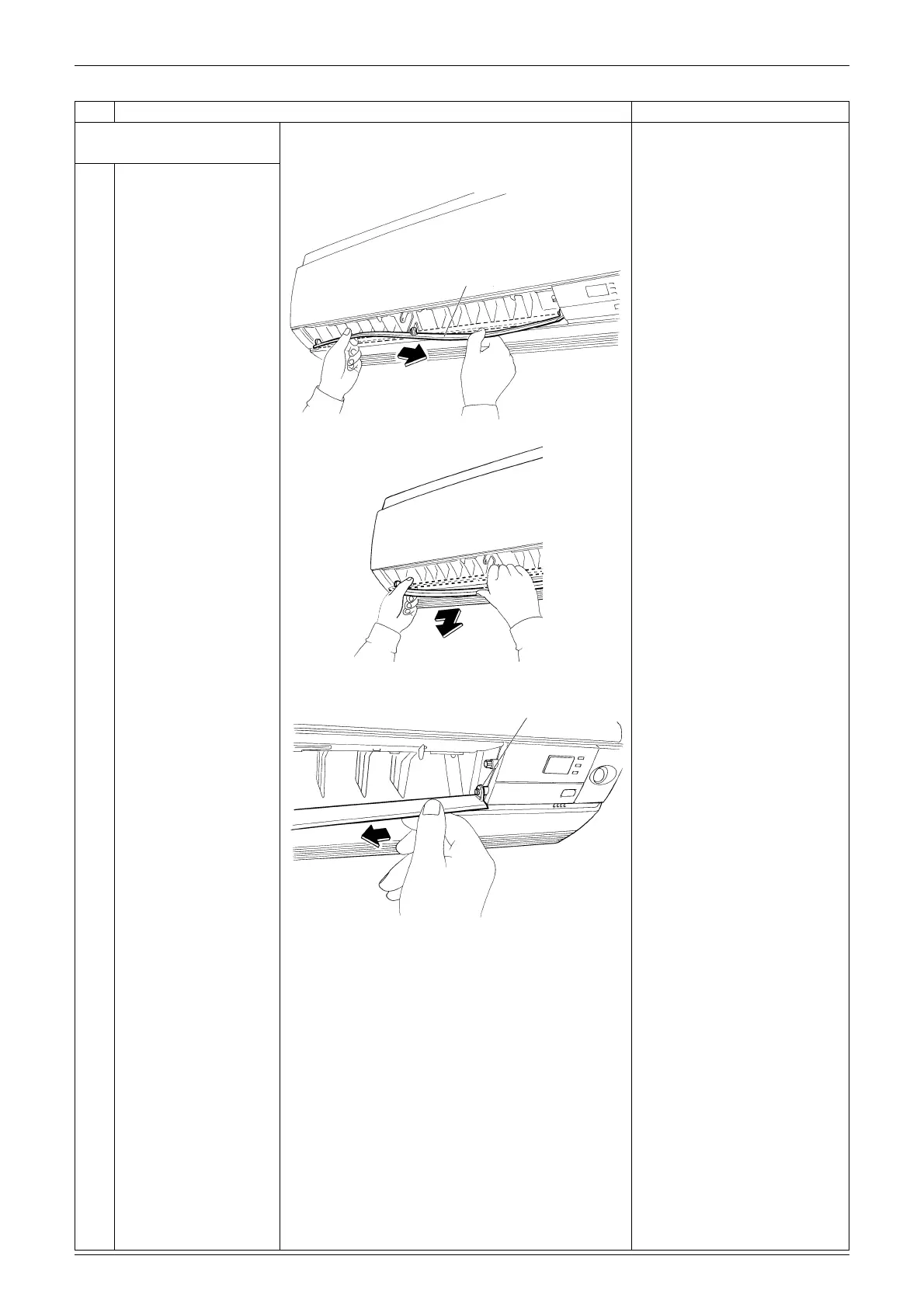

2. Remove the horizontal
blade (small).
1
2
3
Unfasten the center
shaft while bending the
horizontal blade (small)
slightly.
Unfasten the left shaft.
Unfasten the right shaft.

There is a key alignment at
the right shaft. When
reassembling, insert the
right shaft first while turning.

After inserting the right
shaft, mount the horizontal
blade to the center shaft and
then to the left shaft.
Horizontal blade (small)
(R4332)
(R12716)
Key alignment
(R4334)
