Daikin FTE35KV16 - Remove Vertical Blade Assembly

Si041048 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 9
Step Procedure Points
3. Remove the vertical blade
ASSY.
1
2

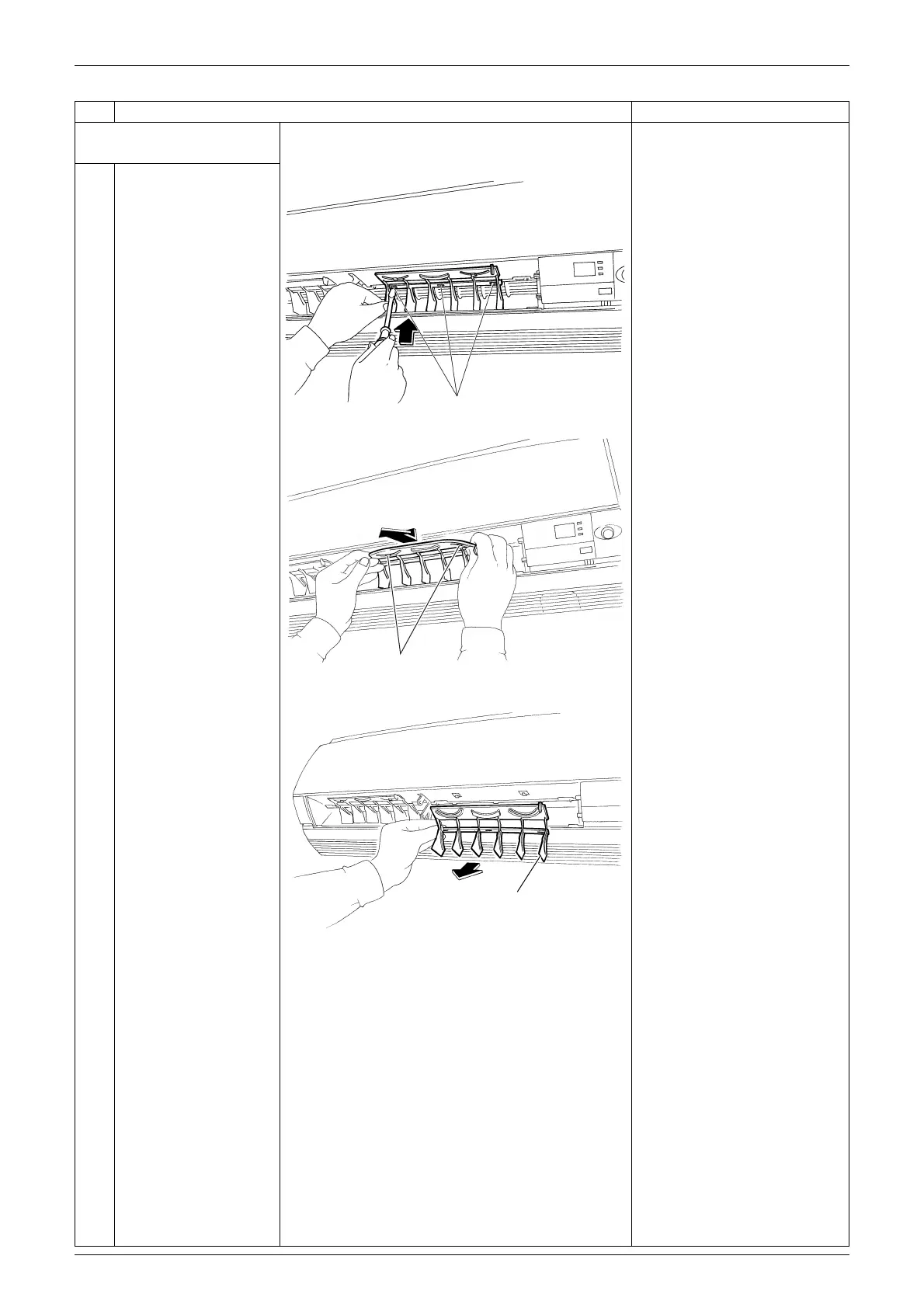

Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
Unfasten the hooks at
the upper 2 positions.
3
Remove the vertical
blade ASSY.

A vertical blade ASSY has 6
fins. It is impossible to
replace only one fin.

The vertical blade ASSY is
not marked for difference
between right and left.
Hook
(R4335)
(R4336)
Hook
(R12546)
Vertical blade ASSY
