Daikin FTE35KV16 - Removal of Electrical Box

Removal of Electrical Box Si041048

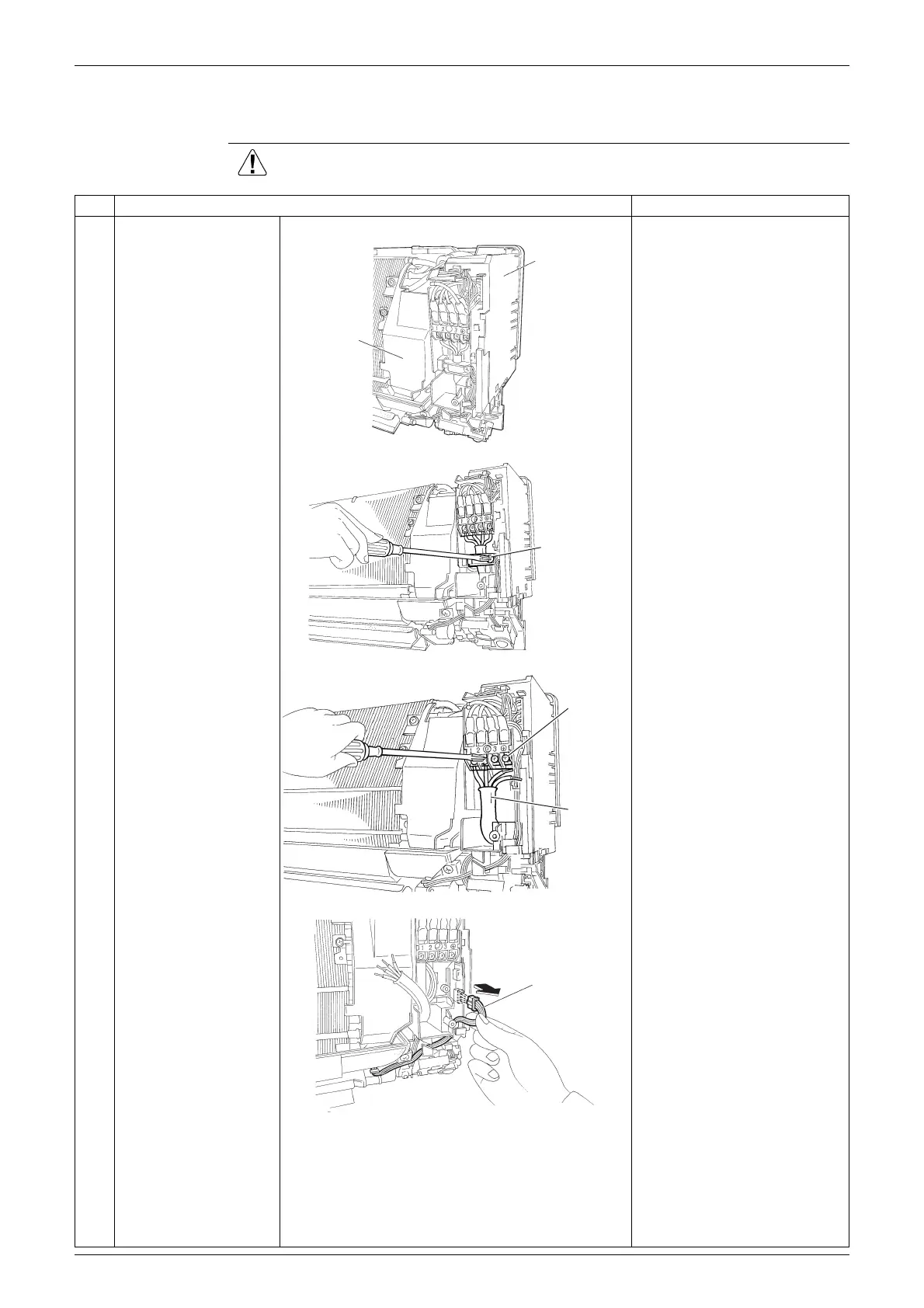

10 Removal Procedure
5. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
2
3
4
The figure shows the
connections of wire
harnesses.
Remove the screw of
the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wire.
Disconnect the
connector for the swing
motor [S6].
Preparation

Remove the front grille
according to the “Removal
of Front Grille.”

Put any excess wires behind
the power supply lead wire.
(R10876)
Drip proof
plate
Electrical box
(R17044)
Wire fixture
Terminal
board
Connecting
wire
(R16495)
(R10879)
[S6]
