Daikin FTE35KV16 - Remove Shield Plate

Si041048 Removal of PCBs
Removal Procedure 13

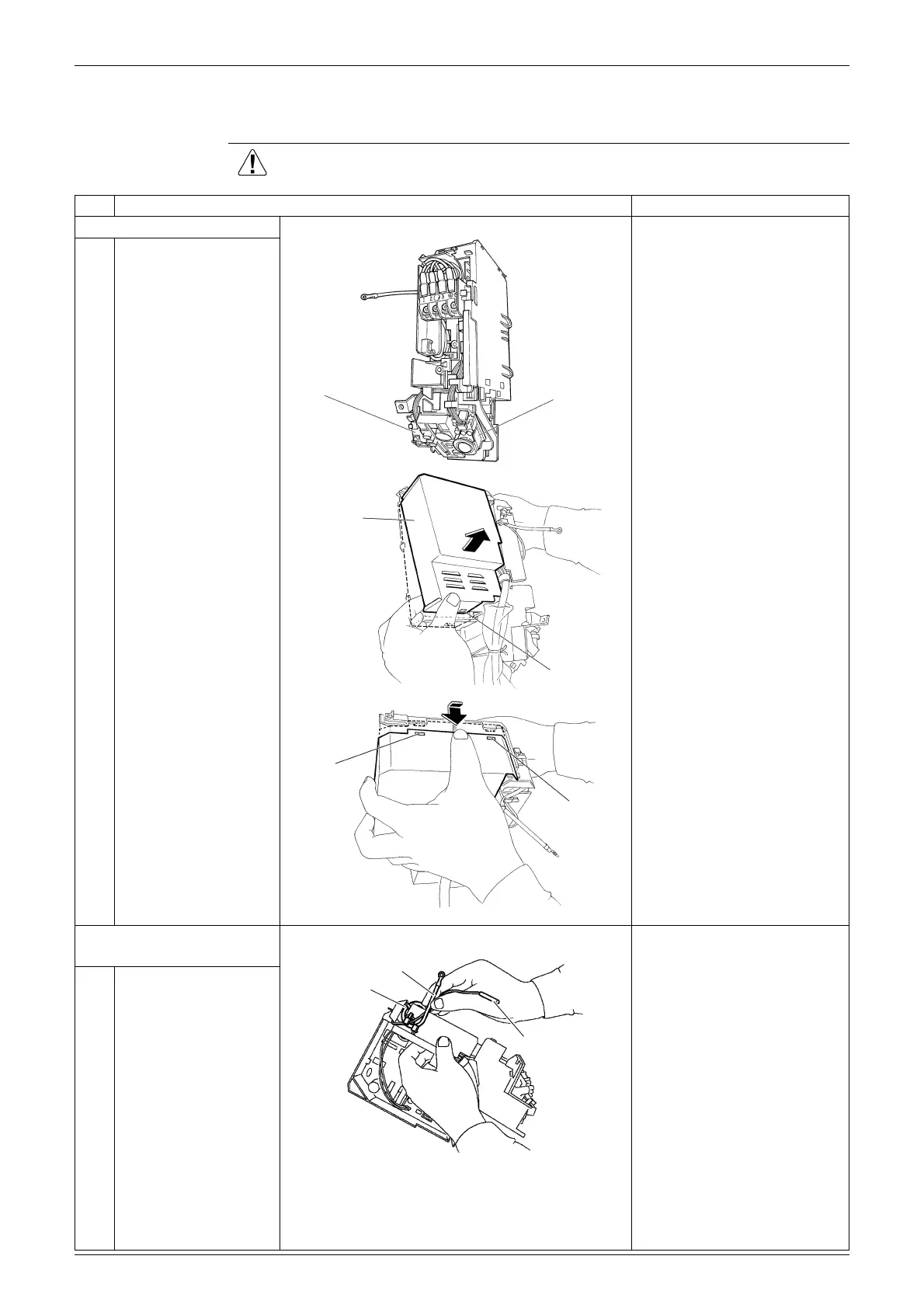

6. Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the shield plate. Preparation

Remove the electrical box
according to the “Removal
of Electrical Box.”
1
2
3
The figure shows the
appearance of the
electrical box.
Open the shield plate.
Push the upper center
of the shield plate and
unfasten the 2 hooks.
Remove the shield
plate.
2. Release the indoor heat
exchanger thermistor.
1
Release the indoor heat
exchanger thermistor
and the earth wire from
the hooks.
Signal receiver
PCB
Signal receiver unit
(R4350)
Shield plate
Hook
(R13208)
Hook
Hook
(R4352)
Earth wire
Clamp
(R4353)
Indoor heat
exchanger
thermistor
