Removal of Front Panel Si041048
4 Removal Procedure

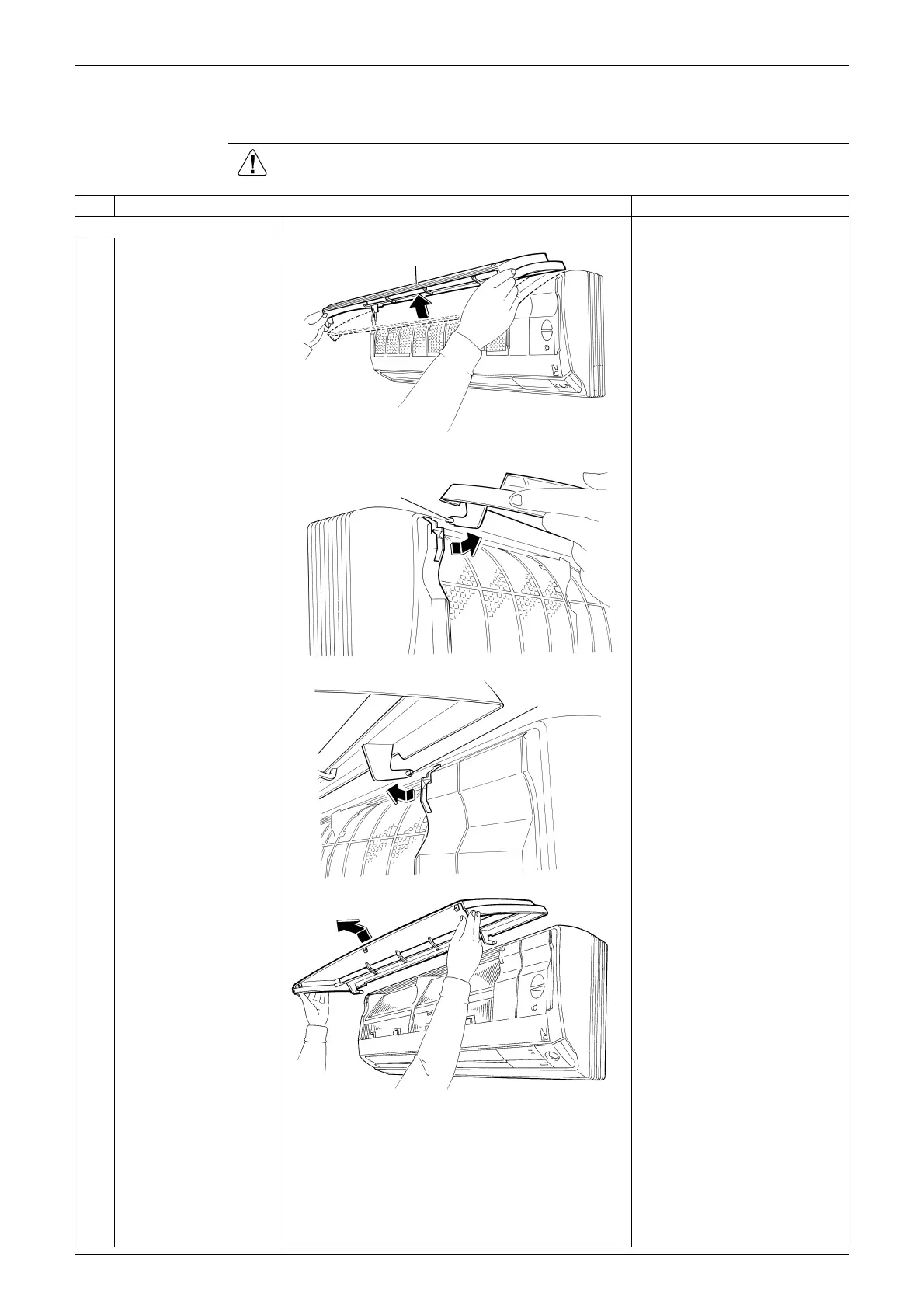

2. Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the front panel.
1
Open the panel over
the position where it
stops.
2
Slide the left rotary
shaft to the right and
release it.
3
Slide the right rotary
shaft to the left and
release it.
4
Remove the front panel.
When reassembling the
front panel, fit the right and
left rotary shafts one by one
into the grooves and fully
push them into position.
Rotary shaft
Rotary shaft
(R4312)
(R4313)
(R4315)
Front panel
(R17126)
To Next Page
