Si041048 Removal of Air Filters
Removal Procedure 3

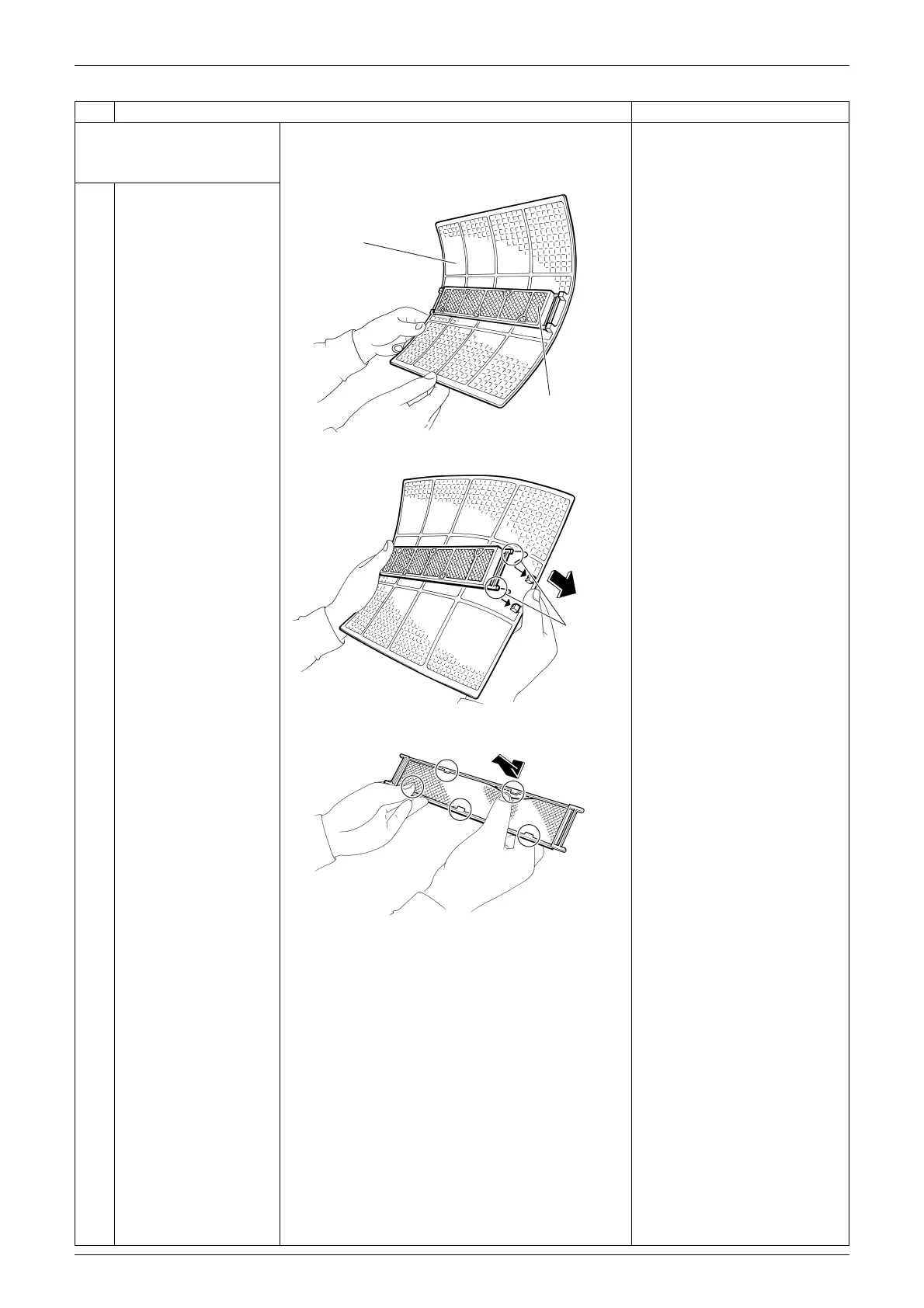

3. Remove the Titanium
apatite photocatalytic air-
purifying filters.
Some models have no
Titanium apatite
photocatalytic air-purifying
filter.
The right and left filters are
interchangeable.
1
The Titanium apatite
photocatalytic air-
purifying filter ASSY is
attached to the back of
the air filter.
2
3
Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by bending the air filter
and releasing the
projections from the air
filter frame.
Remove the Titanium
apatite photocatalytic
air-purifying filter from
its frame (at 5 positions)
by bending it.
Step Procedure Points
Air filter
(R4309)
Titanium apatite
photocatalytic
air-purifying filter
ASSY
Projection
(R16029)
(R13174)
To Next Page
