Si041048 Removal of Indoor Heat Exchanger
Removal Procedure 27
4

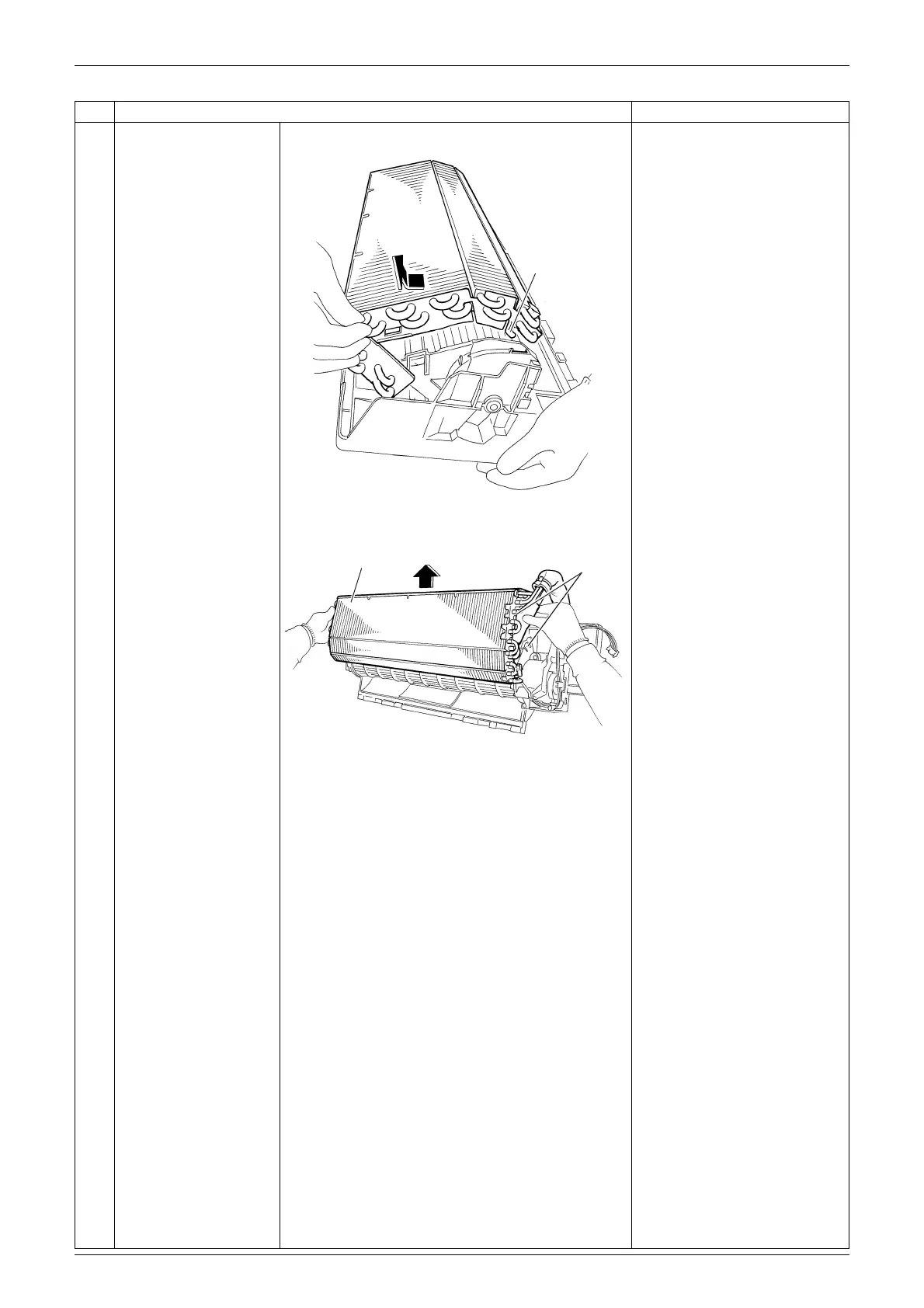

Unfastening the left
lower hook, hold up the
indoor heat exchanger
by its left side and lift it
up.

When reassembling the
indoor heat exchanger,
make sure that the hook
(left) is fastened.
5
When the left side is
lifted, the 2 hooks at the
right side comes off
position.
6
Remove the indoor heat
exchanger.
Step Procedure Points
Lower hook
(R17045)
Indoor heat exchanger
Hook (right)
(R4405)
