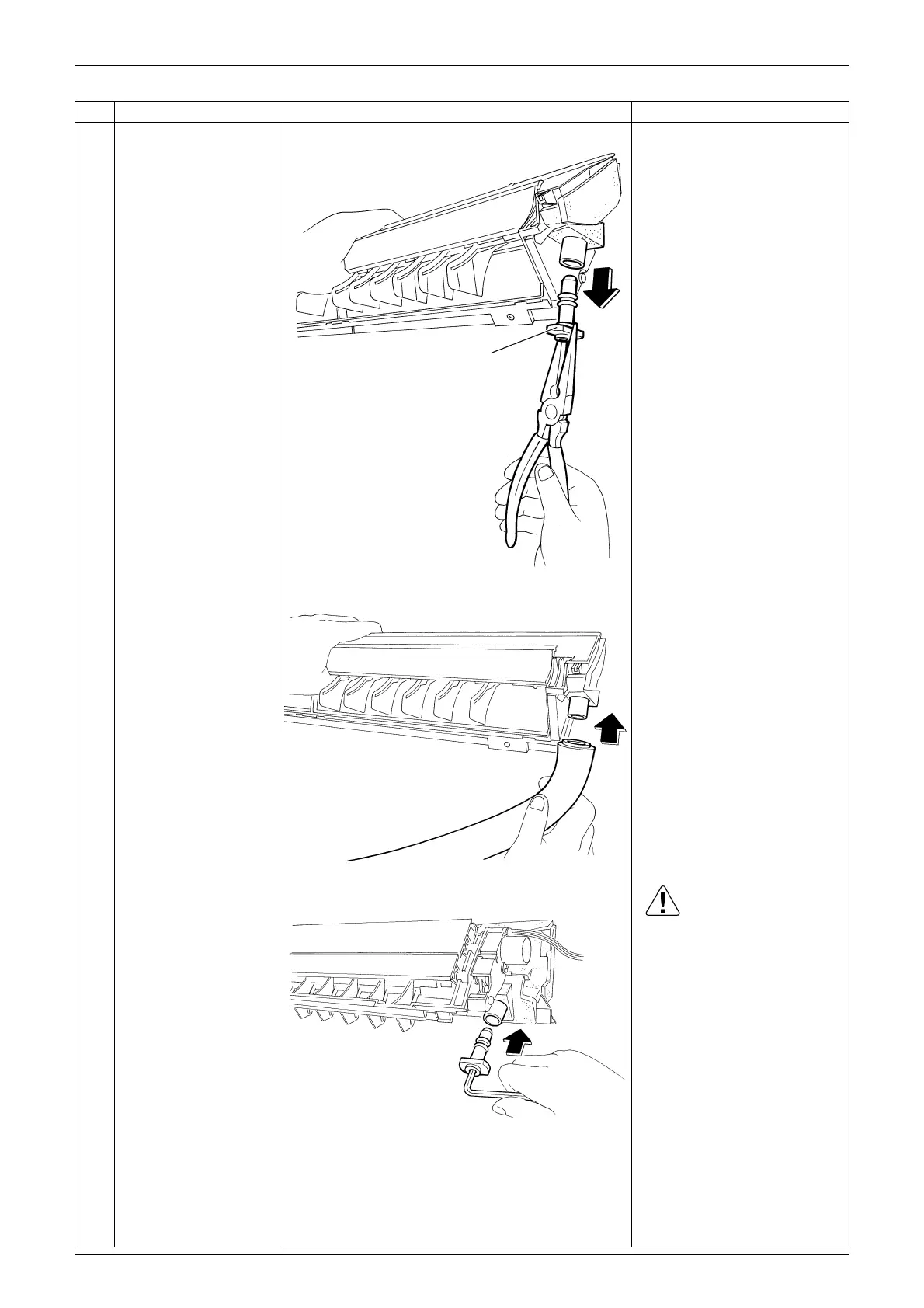

Removal of Drain Pan Unit / Swing Motor Si041048
22 Removal Procedure
2
Remove the drain plug
located at the left side
of the drain pan unit.
3
Insert the drain hose to
the left side.
4
Insert the removed
drain plug into the right
side with a hexagonal
wrench (4 mm).
Caution
Do not thrust the drain plug
in with a sharp-pointed tool
like a screwdriver. (The drain
plug may be broken, resulting
in water leakage.)
Step Procedure Points
(Left side)
Drain plug
(R11235)
(Left side)
(R4387)
(Right side)
(R4388)
