Daikin FTXP35M5V1B9 - To Adjust Vertical Airflow Direction; To Adjust Horizontal Airflow Direction; To Use 3-D Airflow Direction

5 | Operation
User Reference Guide
22
FTXP20~35M5V1B9
Daikin room air conditioners
4D520466-7C – 2020.03
Setting Airflow direction
[—] Stays in a fixed position.
CAUTION
ALWAYS use a user interface to adjust the position of the flaps and louvers. When
the flaps and louvers are swinging and you move them forcibly by hand, the
mechanism will break.

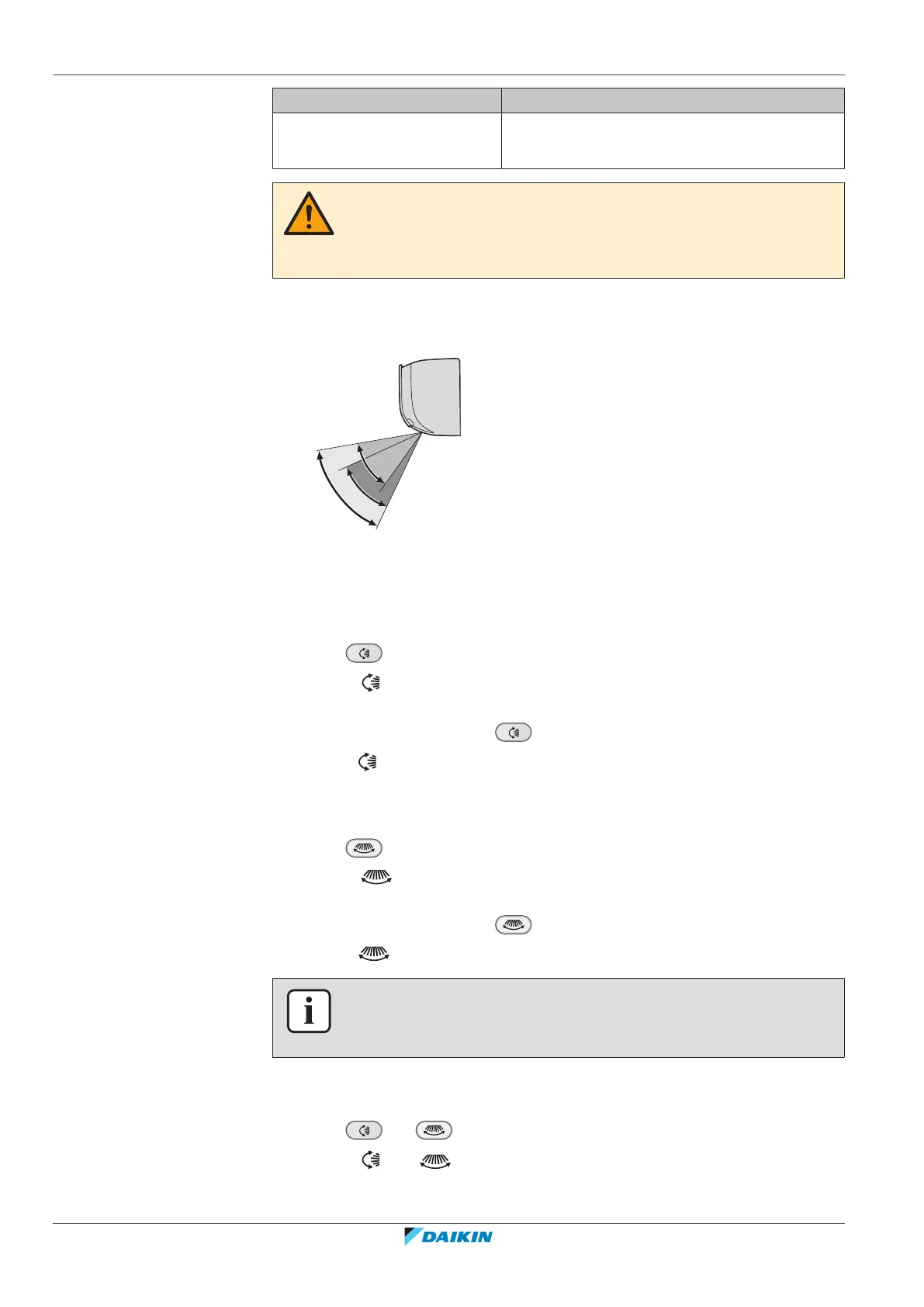

The movable range of the flap varies according to the operation mode. The flap will
stop at the upper position when the airflow rate is changed to low during the up
and down swing setting.
a
b
c
a Flap range in cooling or drying operation
b Flap range in heating operation
c Flap range in fan only operation
5.5.1 To adjust vertical airflow direction
1 Press .
Result: appears on the LCD. The flaps (horizontal blades) will begin to
swing.
2 To use fixed position, press when the flaps reach the desired position.
Result: disappears from the LCD. The flaps will stop moving.
5.5.2 To adjust horizontal airflow direction
1 Press .
Result: appears on the LCD. The louvers (vertical blades) will begin to
swing.
2 To use fixed position, press when the louvers reach the desired position.
Result: disappears from the LCD. The louvers will stop moving.
INFORMATION
When the unit is installed in a corner of a room, the direction of the louvers should
be facing away from the wall. Efficiency will drop if a wall blocks the air.
5.5.3 To use 3-D airflow direction
1 Press and .
Result: and appear on the LCD. The flaps (horizontal blades) and
louvers (vertical blades) will begin to swing.
