Daikin FVXM35A3V1B9 Installer's Reference Guide

6 | Unit installation
Installer reference guide
30
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09
5×

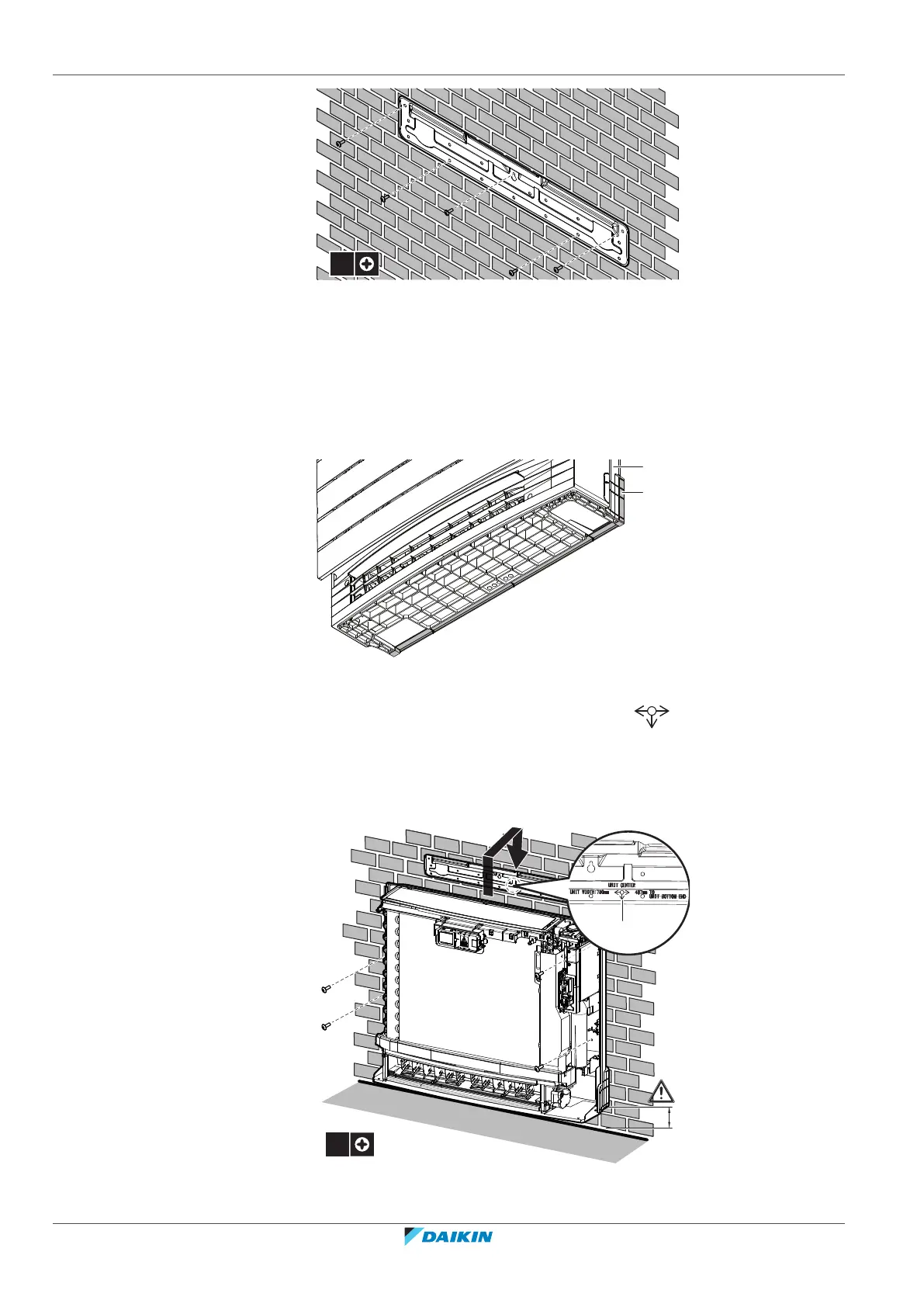

10 Drill a wall hole, depending on which side piping is taken out. See "6.3.2 To
drill a wall hole"[432].
11 Open the front panel and remove the front grille.
12 Remove the slit portions using nippers. See "6.3.3 To remove the slit
portions"[432].
13 If necessary for the skirting board, remove the slit portion on the bottom
frame.
a
b
a Bottom frame
b Slit portion
14 Align the unit using the alignment symbol on the mounting plate:
375 mm from the alignment symbol to the each side (unit width 750 mm),
487mm from the alignment symbol to the bottom of the unit.
15 Hook the unit on the mounting plate and secure the unit to the wall using 4
screws M4×25L (field supply).
≤60
4×
a
a Alignment symbol
