Names of Parts and Operations
Read First
Water supply lamp (Red)
• When water in the water tank is depleted during
Humidifying Operation, a tone (3 long beeps) will sound
and the lamp will light up.
• Stop operation, unplug the power supply plug, and then ll
the water tank with water.
► Page 16, 17
• To stop the notication tone (3 long beeps) from sounding,
change the setting.
► Page 33, 34
• If 3 long beeps sound and the lamp lights up even though
water is in the water tank.
► Page 50
Streamer lamp (Blue)
Lights up according to the operation status of the streamer.
► Page 28
Operations and operating status
will be notied by tones.
• Operation start ................. 2 quick beeps
• Setting change ................. 1 short beep
• Operation end .................. 1 long beep
• When not usable .............. 3 short beeps
• Notication ....................... 3 long beeps
Humidity sensor lamp
Indicates the level of humidity in 3 colours: blue, orange, red.
Lamp colour
Red Orange Blue Orange Red
Indoor humidity
(%)
0-20 21-29 30-60 61-70 71-100
 After operation is started, the lamp will light blue for
about the rst 30seconds regardless of humidity level.

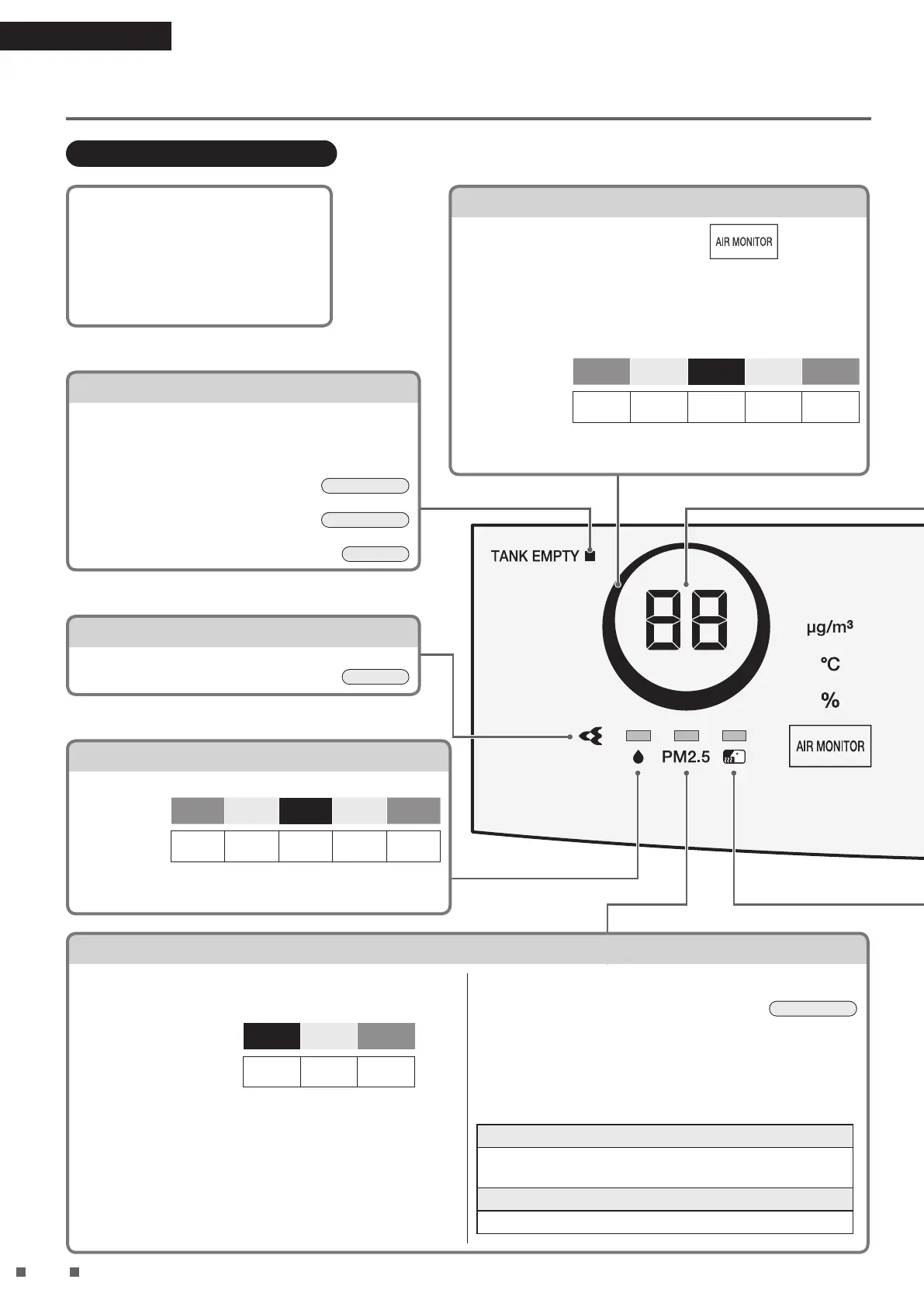

Operating / Indicator panel
PM2.5 sensor lamp
Indicates the volume of dust in 3 colours: blue, orange, red.
• Blue indicates that the air is clean.
Lamp colour
Blue Orange Red
PM2.5 concentration
(μg/m
3
)
0-12 13-24 ≥ 25
 After operation is started, the lamp will light blue for
about the rst 1minute regardless of volume of dust.
 If the responsiveness of the PM2.5 sensor is poor, change
the sensitivity setting of the sensor.
► Page 29, 30
 The responsiveness of the PM2.5 sensor may be poor
when airow rate is high such as “Turbo”. This is not a
malfunction because the airow rate is strong and the dust
is sucked into the air inlet before it reaches the
PM2.5sensor.
PM2.5 sensor detection range
Detectable matter
house dust, tobacco smoke, pollen, mite droppings and
remains, pet hairs, diesel particulate matter
Sometimes detectable
steam, oil smoke
Daikin eye
Displays the condition of the air selected with in 3 colours:
blue, orange, red.
• If “μg/m
3
” is selected
Lights up in the same colour as the PM2.5 sensor lamp.
• If “°C” is selected
Lights up in the colours displayed below, according to the current
indoor temperature.
Lamp colour
Red Orange Blue Orange Red
Indoor temperature
(°C)
≤ 10 11-17 18-28 29-35 ≥ 36
• If “%” is selected
Lights up in the same colour as the humidity sensor lamp.
