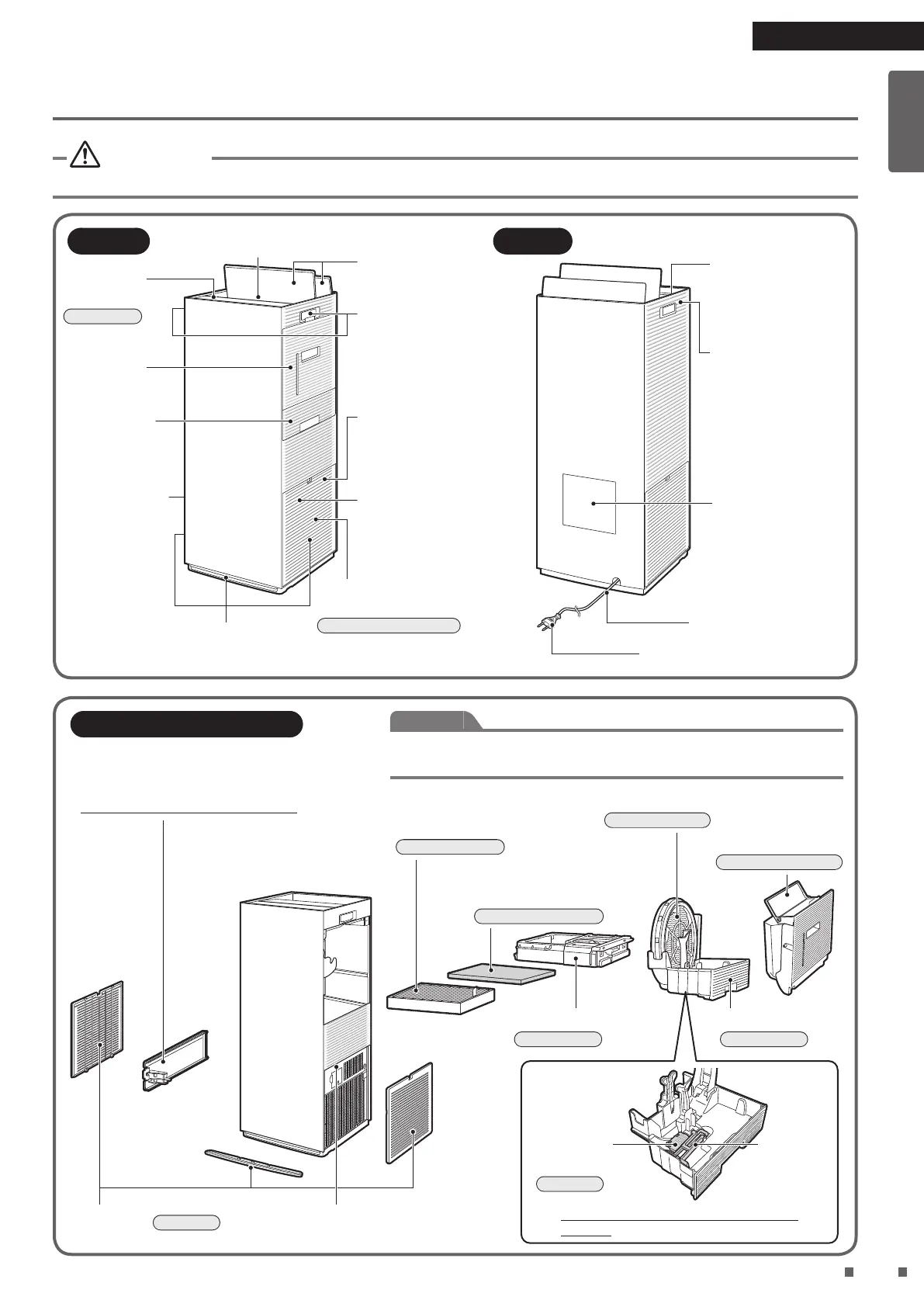

Names of Parts and Operations
Read First
CAUTION
Do not lift up the unit holding the grip on the water tank or humidifying tray. (Injury may result from the unit falling)
Front
Operating/
Indicator panel
► Page 9-12
Water tank
Grip
(for carrying the unit)
Louvre
(Hand-operated)
Odour sensor
Inside the air inlet
(right-side).
Temperature sensor
and Humidity sensor
Inside the air inlet (right-
side).
Air outlet
PM2.5 sensor
Inside the air inlet (right-side).
► Page 9, 29, 30, 35, 45
Air inlets
Front/Side
Streamer unit
Inside the air inlet
(left-side).
Humidifying
tray
Grip is below.
Back
Model name/
Production no.
Power supply plug
Power supply cord
Active plasma ion
generation unit
Inside the air outlet.
Wireless LAN
connection
adapter
For operating the air
purier via
smartphone.
(Inside of the unit)
Main Removable Parts
Pre-lter
► Page 35
SSID/KEY sticker
Can be checked if the pre-lter is removed.
Deodorising lter
(Black lter)
► Page 14, 15, 36, 45
Silver ion
cartridge
► Page 46
Float
Filter xing unit
► Page 15, 36
Humidifying lter unit
► Page 36, 39-41
Water tank
► Page 16, 17, 36-38
Humidifying tray
► Page 36, 39
Dust collection lter
(White lter)
► Page 36, 43, 45
Streamer unit cover
Do not remove streamer unit cover.
Attention
To prevent injury or malfunction, be sure to only operate the unit with all
parts attached.
Do not remove both the silver ion cartridge
and oat.
