Daikin MPS050F - Appendix - Keypad;Display Menu Structure

The following is a description of the MicroTech III menu structure. These menus and items can all be displayed with the keypad/
display. Menu items displayed will change based on the selected unit conguration.

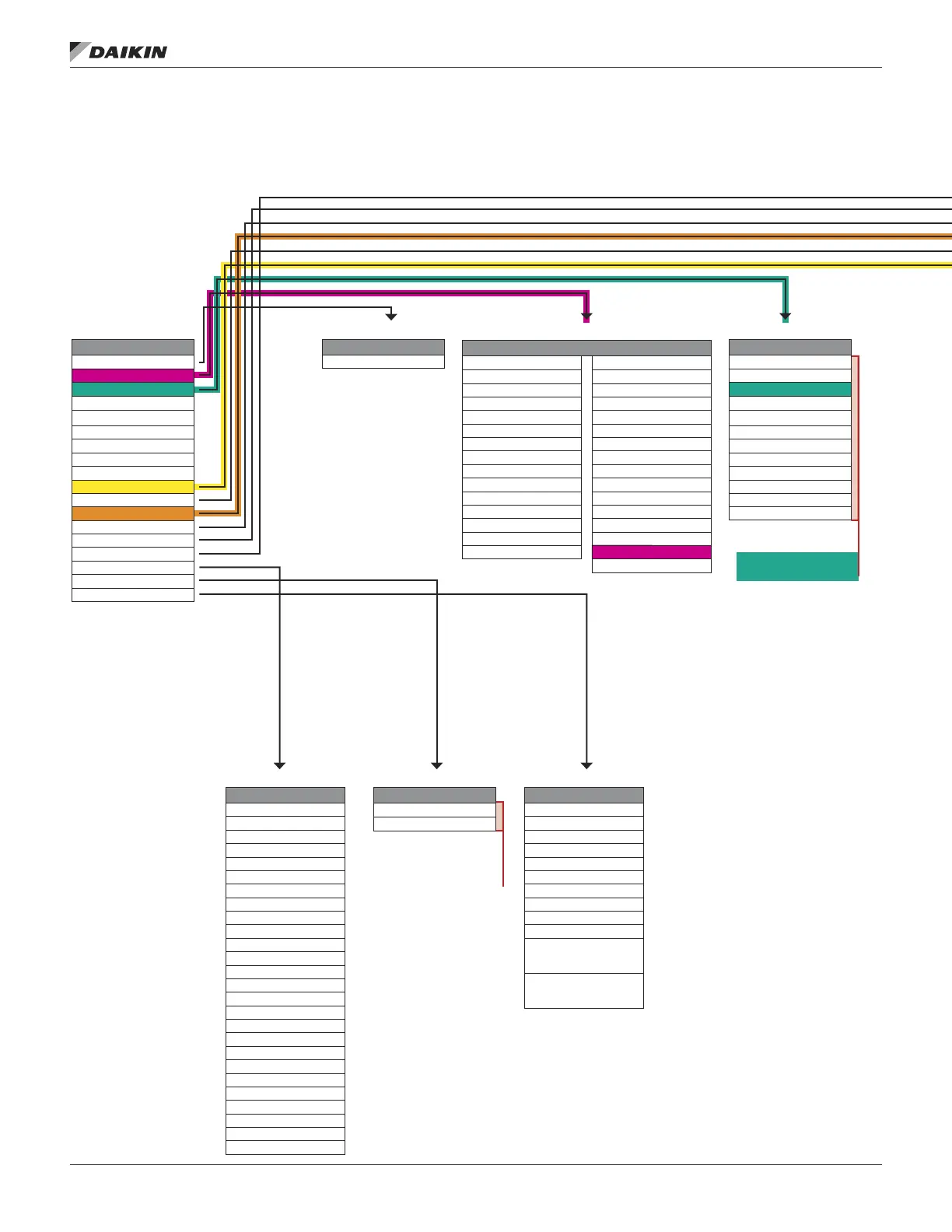

Figure 96: Main Menu – Keypad/Display Menu Structure
For more detail go to:
Figure 97, page 122
For more detail go to:
Figure 99, page 126
Main Menu
Enter Password
►
Quick Menu
►
View/Set Unit
►
Unit State=_________
Unit Status=________
Dehum Status=______
Ctrl Mode= Off
Occ Mode= Auto
HP Mode= HeatCool
Commission Unit
►
Manual Control
►
Service Menus
►
Trending
►
Unit Maintenance
►
BMS Communications
►
Unit Conguration
►
Alarm Lists
►
About This Unit
►
Quick Menu
Unit State=__________ DAT Clg Spt= 55.0°F
Unit Status=_________ DAT Htg Spt= 85.0°F
Dehum Status=______ Min DAT Limit= 55.0°F
Ctrl Mode= Off Unocc Clg Spt= 85.0°F
Occ Mode= Auto/Net Unocc Htg Spt= 55.0°F
HP Mode= HeatCool SAF Speed= XXX%
Clg Capacity= XXX% Duct Press= X.Xin
OAD/Econ Cap= XXX% DuctSP Spt= 1.0in
Htg Capacity= XXX% RF/EF Cap= XXX%
Supl Htg Cap= XXX% Bldg Press= X.XXin
Reheat Cap= XXX% BldgSP Spt= 0.05in
Control Temp= XXX% IAQ PPM= XXXXppm
Occ Clg Spt= 72.0°F OA Flw= XXXXXCFM
Occ Htg Spt= 68.0°F MinOAFlw Spt= 2000CFM
Disch Air= XXX°F OA Temp= XXX°F
Rel Humidity= XXX%
About This Unit
SO_Item= 123456_12345
Unit SN= FBOU123456789
App Version= 2506018xxx
Cf1-15= xxxxxxxxxxxxxxxx
Cf6-29= xxxxxxxxxxxxxxxx
Main BSP= X.XX
LON BSP= X.XX
LON App Ver= X.XX
BACnet BSP= X.XX
D-Net BSP= X.XX
HMI GUID=
xxxxxxxx-xxxx-xxxx-xxxx-
xxxxxxxxxxxx
OBH GUID=
xxxxxxxx-xxxx-xxxx-xxxx-
xxxxxxxxxxxx
View/Set Unit
Unit Status/Settings
►
Occupancy
►
Temperatures
►
Flow Status
►
SAF Spd Control
►
RF/EF Control
►
Cooling
►
Economizer
►
Min OA Damper
►
Heating
►
Dehumidication
►
Date/Time/Schedules
►
Enter Password
Enter Password *******
►
Unit Conguration
Apply Changes= No
Unit Type= DPS(3)
Control Type= DAT(1)
Clg Type= INV(4)
Comp Cong= INV1(M)
Gen Clg Stgs= 1
Low Ambient= No(0)
Cond Ctrl= INV(8)
OA Dmpr/Econ= AirEc(3)
OA Flow Stn= None(0)
Htg Type= None(0)
Htg Stages= 1
Max Heat Rise= 100
SAF Type= EBMCAV(6)
RAF Type= None(0)
RF/EF Ctrl= None(0)
2ndDSPSnsr= No(0)
EFT/LCT Snsr= No(0)
Energy Rcvy= None(0)
Clg Circ Type= 2Air(2)
Head P Ctrl= No(0)
Bypass Ctrl= Slave(0)
Unit Size= 012
Refrig Type= R410A(2)
Reheat Type= None(0)
Unit Voltage= 460/60(2)
Alarm Lists
Active Alarms
►
Alarm Log
►
