Daikin RKD50GVMV - Page 10

PCBs / Electrical Box Si001270EB

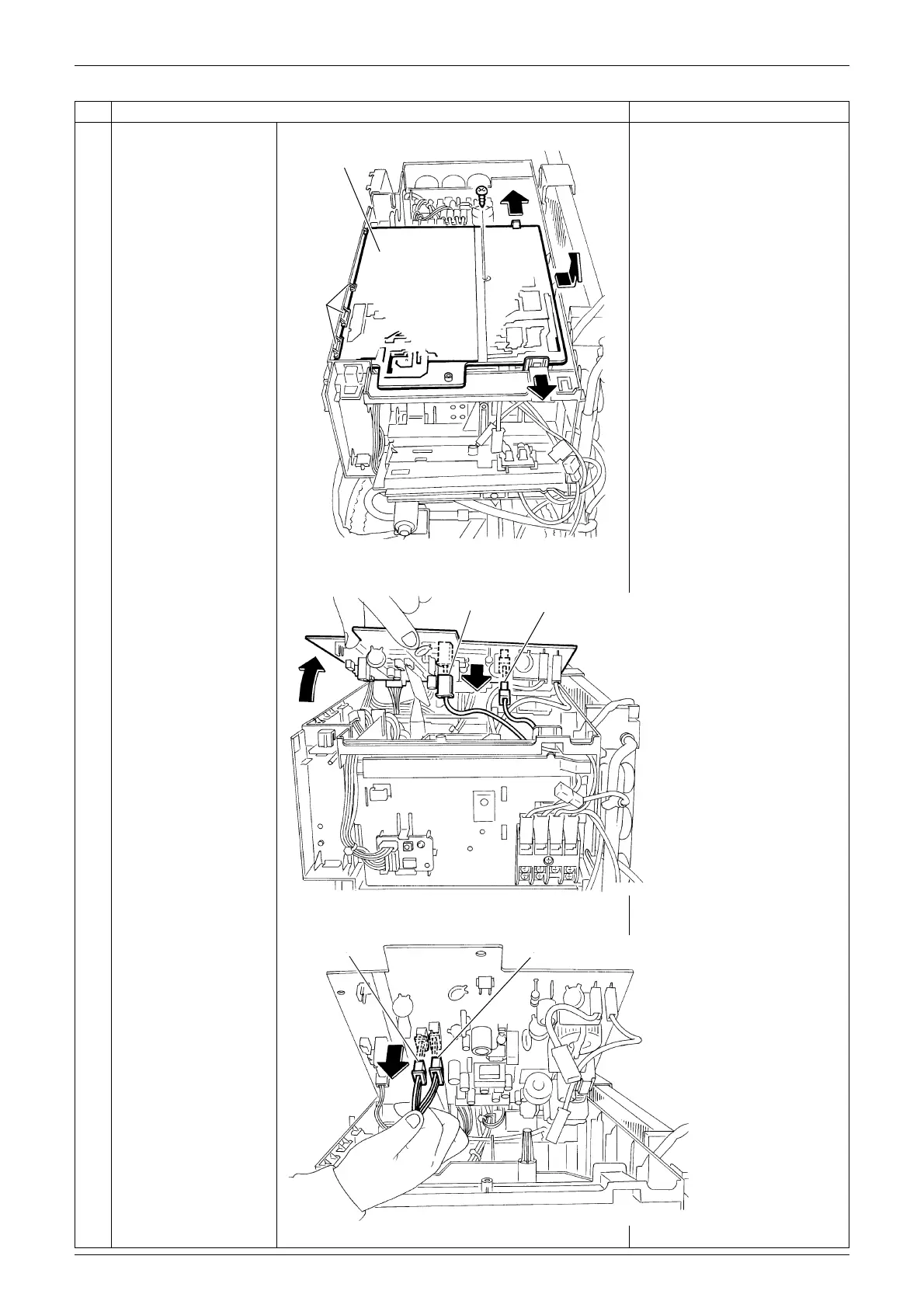

8 Removal Procedure
5
Remove the screw of
the main PCB.
6
Unfasten the 2 hooks
and release the main
PCB from the ditch of
the front side.
7
Disconnect the
harnesses [S10] [AC2]
while lifting the main
PCB.
8
Disconnect the
connectors [S51]
[S101].
Step
Procedure Points
Main PCB
Ditch
(R2709)
[S10]
[AC2]
(R17728)
[S10] [AC2]: terminal board
(R2711)
[S101]
[S51]
[S51] [S101]: service monitor
PCB
