SiBE121135_A Troubleshooting for SA Indoor Unit
Service Diagnosis 192

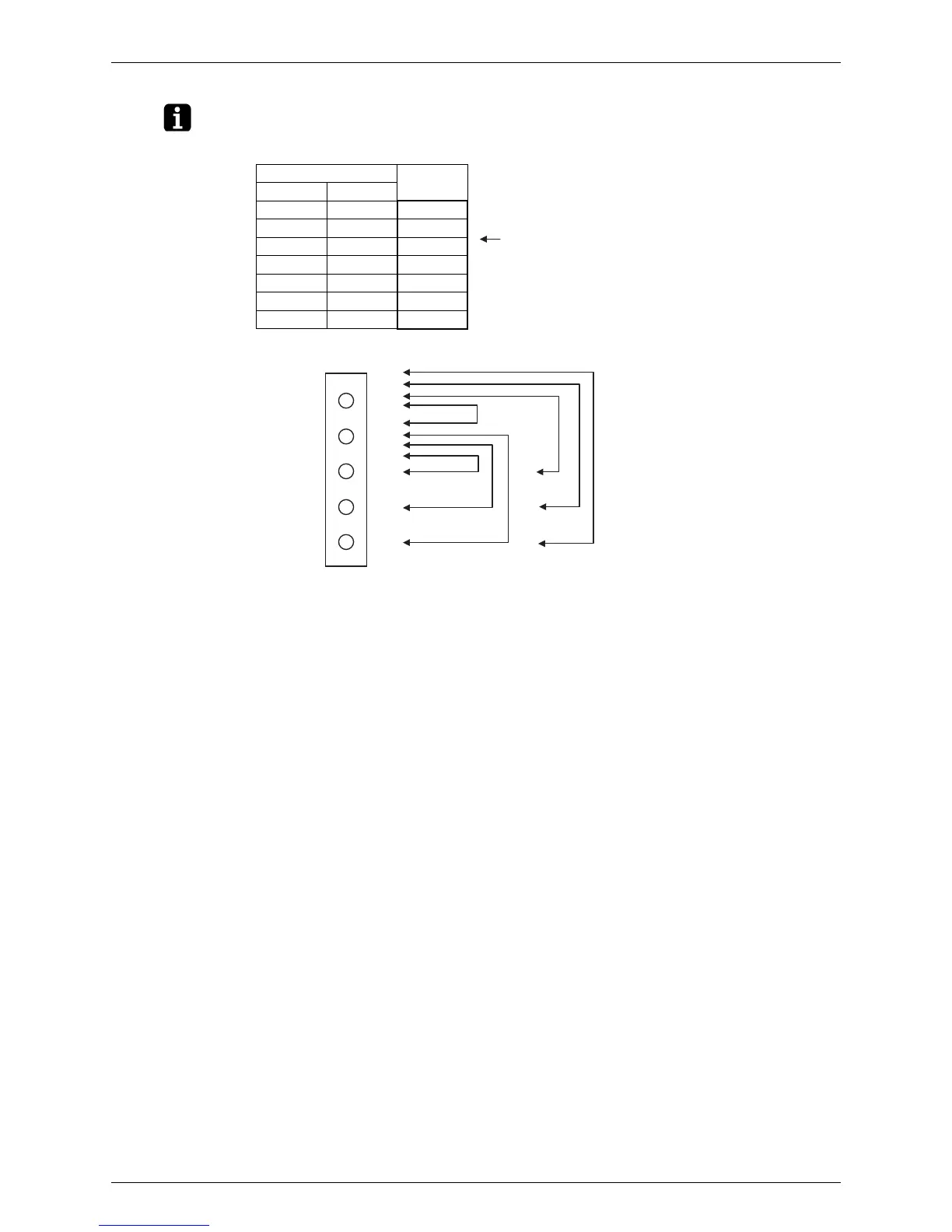

Note: Check the resistance between each pin with the fan motor connector disconnected.
Criterion value: Higher than 1Ω on the basis of GND and Vcc.
Tester
Resistance
Please fill in the blanks
with the resistance.
Red Black
GND Hu Ω
GND Hv Ω
GND Hw Ω
GND Vcc Ω
Vcc Hu Ω
Vcc Hv Ω
Vcc Hw Ω
(R19167)
X2A
5
Pink
Gray
Orange3
2 Blue
1 Yellow
4
GND
Vcc
Hw
Hv
Hu
