1.4 Airflow Direction Control
Power-Airflow
Dual Flaps
The large flap sends a large volume of air downward to the floor. The flap provides an optimum
control in cooling, dry, and heating operation.
<Cooling / Dry>
During cooling or dry operation, the flap retracts into the indoor unit. Then, cool air can be blown
far and distributed all over the room.
<Heating>
During heating operation, the large flap directs airflow downward to spread the warm air to the
entire room.
Wide-Angle
Louvers
The louvers, made of elastic synthetic resin, provide a wide range of airflow that guarantees
comfortable air distribution.

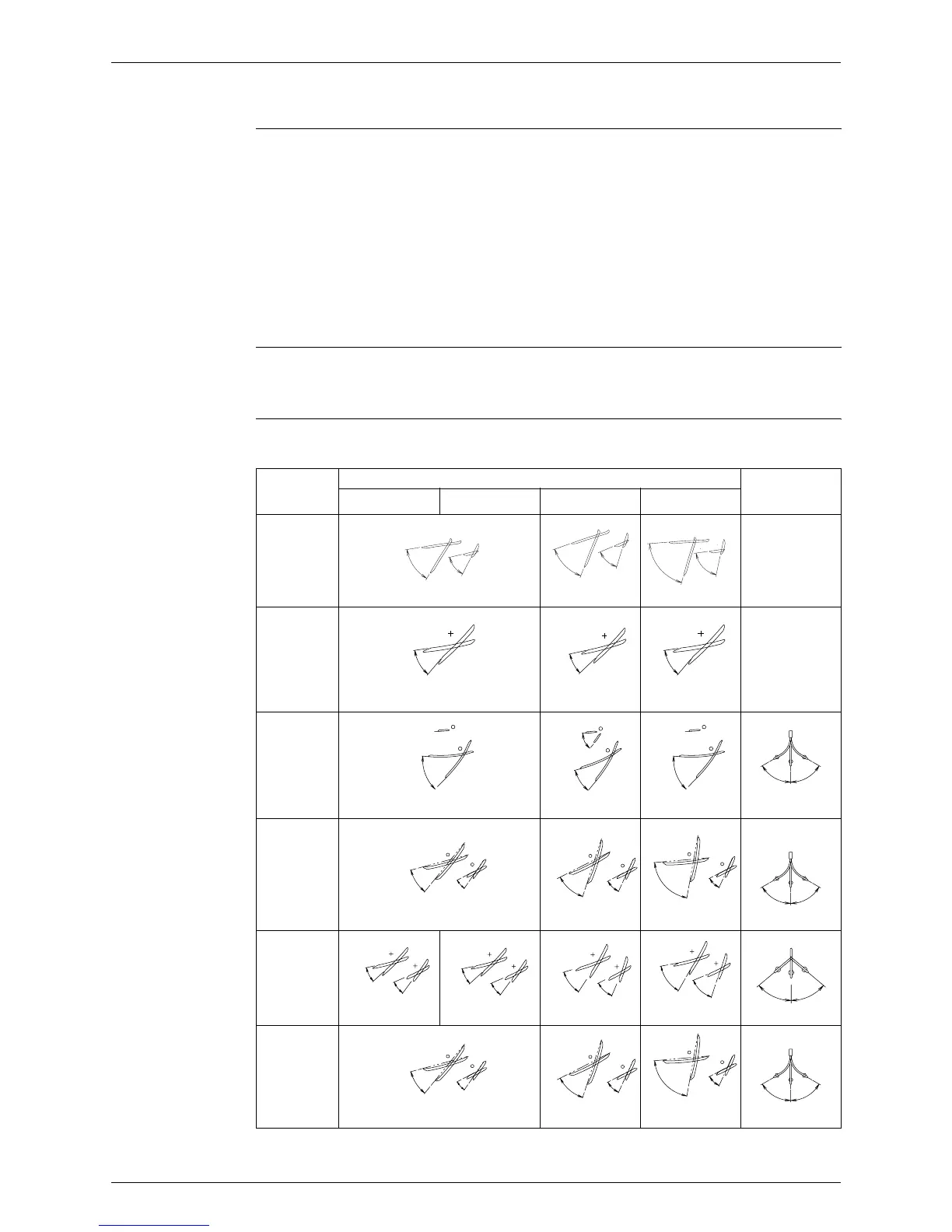

Auto-Swing The following table explains the auto-swing process for cooling, dry, heating, and fan:
Wall Mounted Type
Series
Vertical Swing (up and down) Horizontal
Swing (right
and left)
Cooling Dry Heating Fan
FTXG
(R11662)
(R11664)
(R11663)
—
CTXS
FTXS20/
25K
(R11256) (R11257)
(R11256)
—
FTXS35/42/
50K
(R18422) (R18423) (R18422) (R11404)
FTXS-J
(R12182) (R11402) (R14208) (R11404)
FTXS-G
(R2814) (R2815) (R2813) (R2816) (R2817)
ATXS
(R12182)
(R11402)
(R11403)
(R11404)
10˚
15˚
60˚
65˚
20˚
70˚
25˚
75˚
5˚
10˚
80˚
75˚
5˚
45˚
15˚
45˚
5˚
45˚
10˚
10˚
60˚
10˚
60˚
30˚
65˚
10˚
10˚
60˚
45˚
45˚
15˚
50˚
30˚
55˚
30˚
70˚
30˚
65˚
8˚
80˚
30˚
65˚
45˚
45˚
10˚
40˚
10˚
40˚
5˚
35˚
5˚
35˚
15˚
55˚
15˚
55˚
5˚
55˚
5 ˚
55˚
50˚
50˚
15˚
50˚
30˚
55˚
30˚
70˚
30˚
65˚
5˚
80˚
30˚
65˚
45˚
45˚
