SiBE121135_A Field Settings
Trial Operation and Field Settings 258
5.3 SA Indoor Unit
5.3.1 How to Change the Field Settings
Outline If optional accessories are mounted on the indoor unit, the indoor unit setting may have to be
changed. Refer to the instruction manual for each optional accessory.
Wired remote
controller
BRC1D528
To set the field settings, you have to change:
îš„ Mode No.
îš„ First code No.
îš„ Second code No.
Step Action
1 Press the [INSPECTION/TEST OPERATION] button for 4 seconds during normal
mode to enter the field setting mode.
2 Press the [TEMPERATURE ADJUST] button to select the desired mode No.
3 îš„ If the indoor unit is under group control, all settings for all the indoor units are
set at the same time. Use the codes 10 to 15 to apply this group control and
proceed to the next step.
îš„ If you want to set the indoor units of one group individually or if you want to
read out the last settings, use the codes 20 to 25 which are displayed in
brackets. Press the [PROGRAMMING] button to select the indoor unit No. for
which you want to adjust the field settings.
4 Press the upper part of the [TIME ADJUST] button to select the first code No.
5 Press the lower part of the [TIME ADJUST] button to select the second code No.
6 Press the [SCHEDULE TIMER] button to confirm the setting.
7 Press the [INSPECTION/TEST OPERATION] button to return to normal mode.

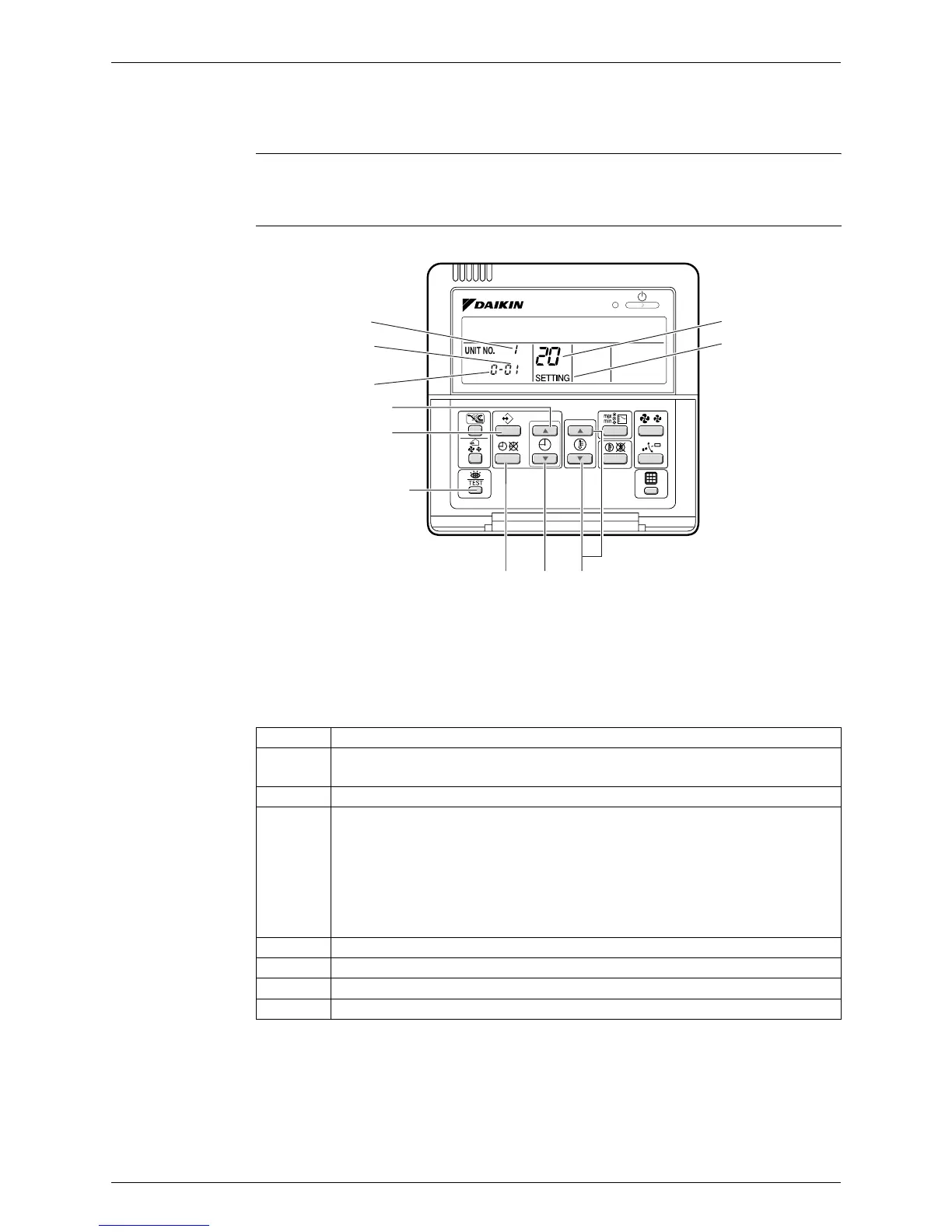

Mode No.
Unit No.
(4)
(3)
(6) (5) (2)
(1) (7)
(R14595)
Second
code No.
First
code No.
Field
setting
mode
To Next Page
