SiBE121135_A Wired Remote Controller
Printed Circuit Board Connector Wiring Diagram 70
3. Wired Remote Controller
3.1 BRC1D528
Connectors and
Other Parts

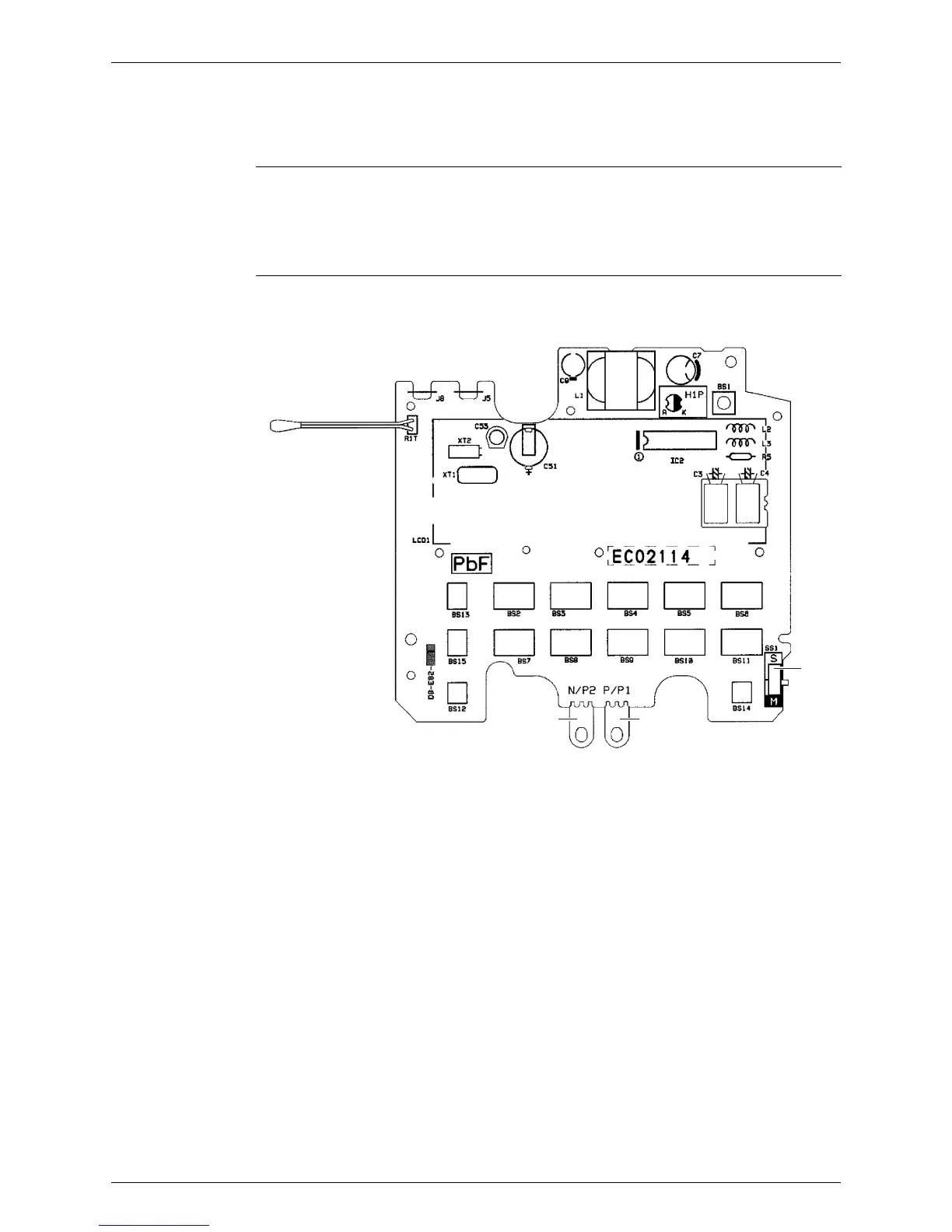

PCB Detail
1) P1, P2 Terminal for indoor unit
2) R1T Room temperature thermistor
3) SS1 MAIN / SUB setting switch
∗ Refer to page 261 for detail.
R1T
P2
P1
SS1
2P113638-2
