Daikin Super multi NX E Series User Manual

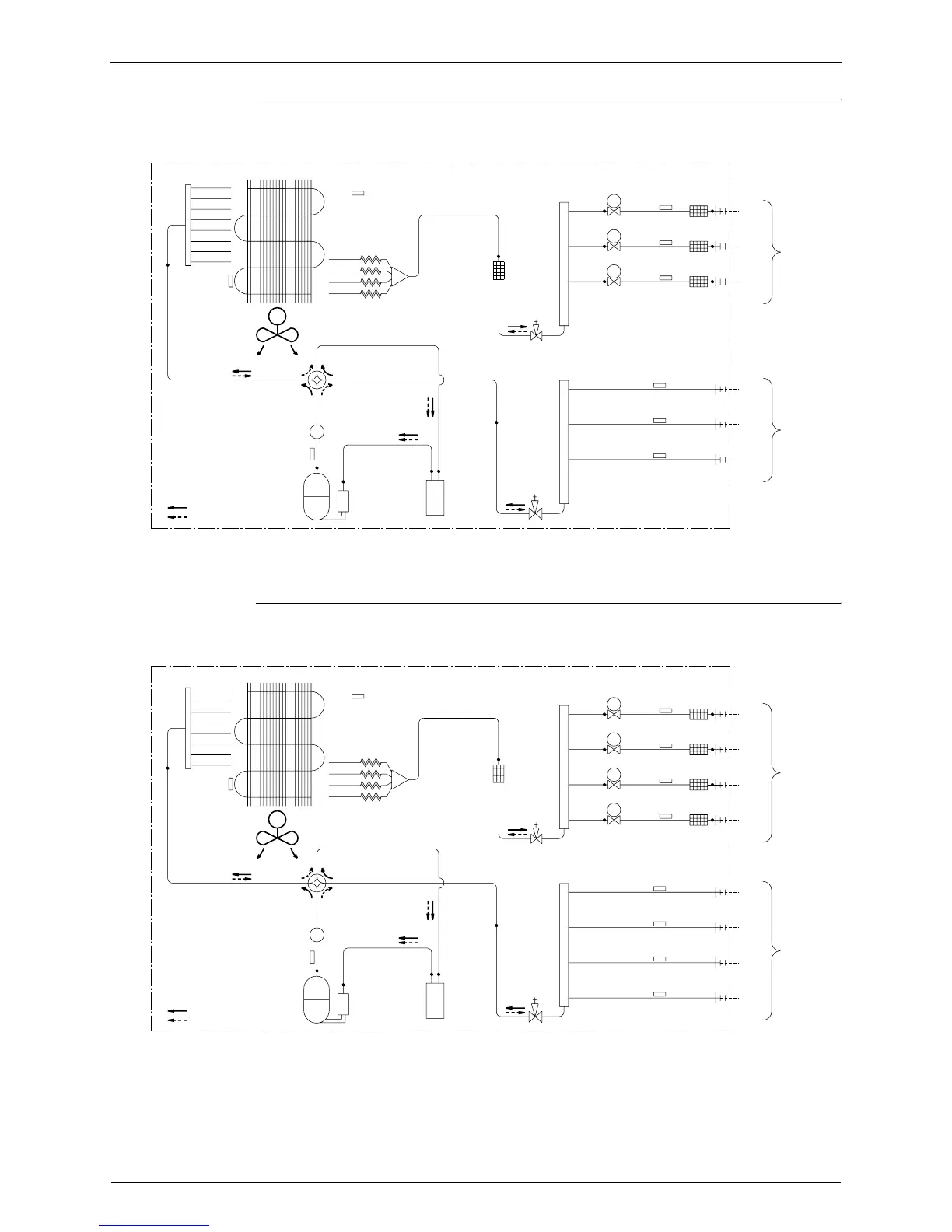

Piping Diagrams SiBE121135_A
267 Appendix
3MXS68G2V1B, 3MXS68G3V1B
4MXS68F2V1B, 4MXS68F3V1B
OUTDOOR UNIT
HEAT EXCHANGER
HEADER
HEADER
9.5CuT
6.4CuT
MOTOR OPERATED VALVE
MOTOR OPERATED VALVE
MOTOR OPERATED VALVE
FILTER
6.4CuT
FILTER
FILTER
DISTRIBUTOR
6.4CuT
CAPILLARY TUBE
DC FAN MOTOR
FILTER
M
PROPELLER FAN
12.7CuT
12.7CuT
12.7CuT
12.7CuT
HEADER
12.7CuT
12.7CuT
MUFFLER
12.7CuT
7.9CuT
12.7CuT
REFRIGERANT FLOW
ACCUMULATOR ACCUMULATOR
COOLING
COMPRESSOR
HEATING
OUTDOOR TEMPERATURE
THERMISTOR (DOA)
HEAT EXCHANGER
THERMISTOR (DE)
DISCHARGE PIPE
THERMISTOR (DO)
GAS LINE
STOP VALVE
LIQUID LINE
STOP VALVE
REVERSING
SOLENOID
VALVE
EVA
EVB
EVC
LIQUID PIPE
THERMISTOR
(
DLA
)
LIQUID PIPE
THERMISTOR
(
DLB
)
LIQUID PIPE
THERMISTOR
(
DLC
)
ROOM A
(
6.4 CuT
)
ROOM B
(
6.4 CuT
)
ROOM C
(
6.4 CuT
)
FIELD
PIPING
LIQUID
GAS PIPE THERMISTOR
(
DGA
)
GAS PIPE THERMISTOR
(
DGB
)
GAS PIPE THERMISTOR
(
DGC
)
ROOM A
(9.5 CuT)
ROOM B
(12.7 CuT)
ROOM C
(12.7 CuT)
FIELD
PIPING
GAS
3D058888A
OUTDOOR UNIT
HEAT EXCHANGER
HEADER
HEADER
9.5CuT
6.4CuT
MOTOR OPERATED VALVE
MOTOR OPERATED VALVE
MOTOR OPERATED VALVE
MOTOR OPERATED VALVE
FILTER
6.4CuT
FILTER
FILTER
DISTRIBUTOR
6.4CuT
6.4CuT
CAPILLARY TUBE
DC FAN MOTOR
FILTER
FILTER
M
PROPELLER FAN
12.7CuT
12.7CuT
12.7CuT
12.7CuT
HEADER
12.7CuT
12.7CuT
MUFFLER
12.7CuT
7.9CuT
12.7CuT
REFRIGERANT FLOW
ACCUMULATOR ACCUMULATOR
COOLING
COMPRESSOR
HEATING
OUTDOOR TEMPERATURE
THERMISTOR (DOA)
HEAT EXCHANGER
THERMISTOR (DE)
DISCHARGE PIPE
THERMISTOR (DO)
GAS LINE
STOP VALVE
LIQUID LINE
STOP VALVE
REVERSING
SOLENOID
VALVE
EVA
EVB
EVC
EVD
LIQUID PIPE
THERMISTOR
(
DLA
)
LIQUID PIPE
THERMISTOR
(
DLB
)
LIQUID PIPE
THERMISTOR
(
DLC
)
LIQUID PIPE
THERMISTOR
(
DLD
)
ROOM A
(
6.4 CuT
)
ROOM B
(
6.4 CuT
)
ROOM C
(
6.4 CuT
)
ROOM D
(
6.4 CuT
)
FIELD
PIPING
LIQUID
GAS PIPE THERMISTOR
(
DGA
)
GAS PIPE THERMISTOR
(
DGB
)
GAS PIPE THERMISTOR
(
DGC
)
12.7CuT
GAS PIPE THERMISTOR
(
DGD
)
ROOM A
(9.5 CuT)
ROOM B
(9.5 CuT)
ROOM C
(12.7 CuT)
ROOM D
(12.7 CuT)
FIELD
PIPING
GAS
3D055041A
