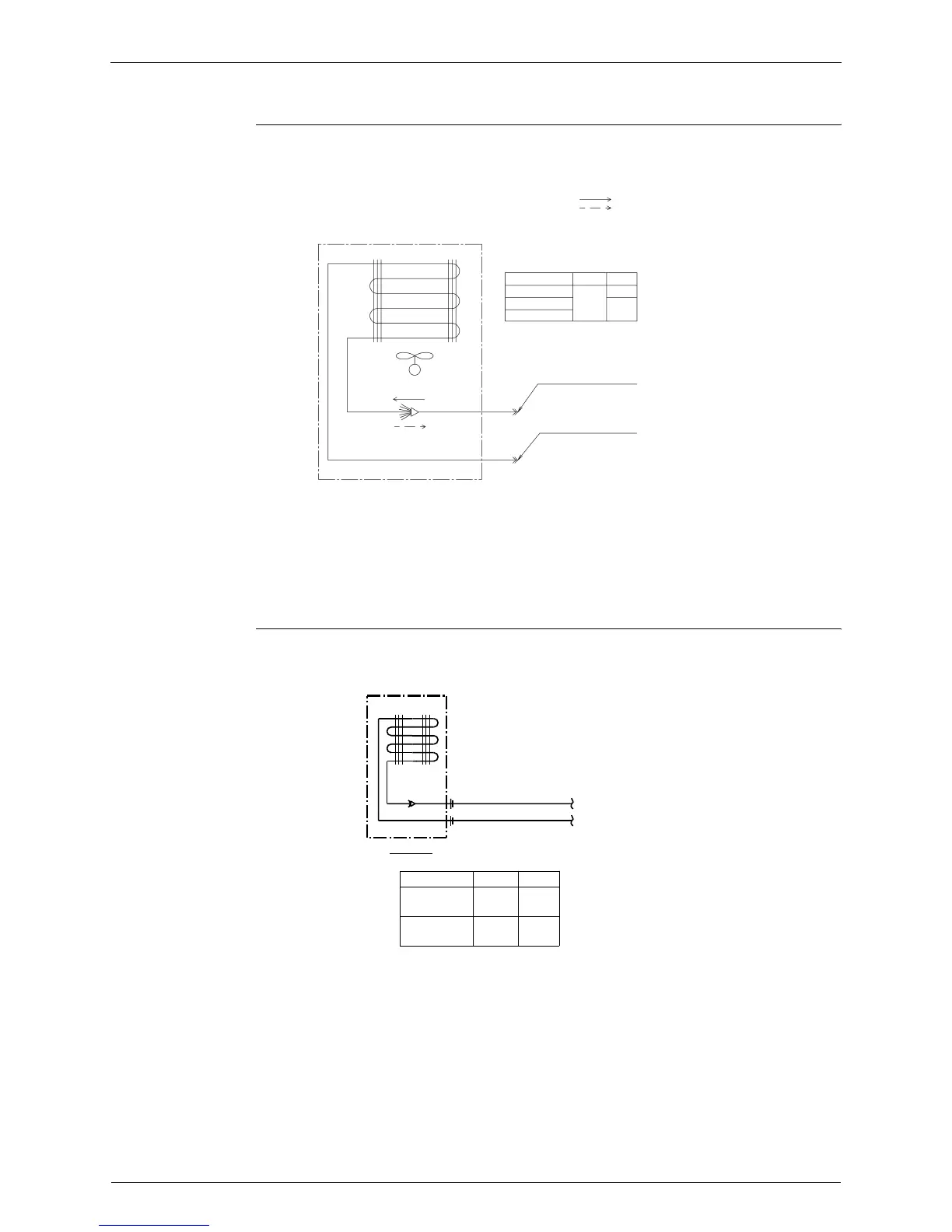

Piping Diagrams SiBE121135_A
273 Appendix
1.2.5 Ceiling Mounted Cassette Type
FCQG35/50/60FVEB
FFQ25/35/50/60B9V1B
MODEL
AB
REFRIGERANT FLOW
COOLING
HEATING
FCQG35FVEB
FCQG50FVEB
FCQG60FVEB
6.35
9.52
12.7
M
FAN
LIQUID PIPE
CONNECTION PORT
φ A
GAS PIPE
CONNECTION PORT
φ B
HEAT EXCHANGER
C: 4D076993
Indoor heat exchanger
Field piping
φ
C1220T-O
Field piping
φ
C1220T-O
Indoor unit
MODEL
6.4
6.4
9.5
12.7
FFQ25/35B9V1B
FFQ50/60B9V1B
To
Outdoor unit
A
AB
B
C: 4D039335B
