Piping Diagrams SiBE121135_A
275 Appendix

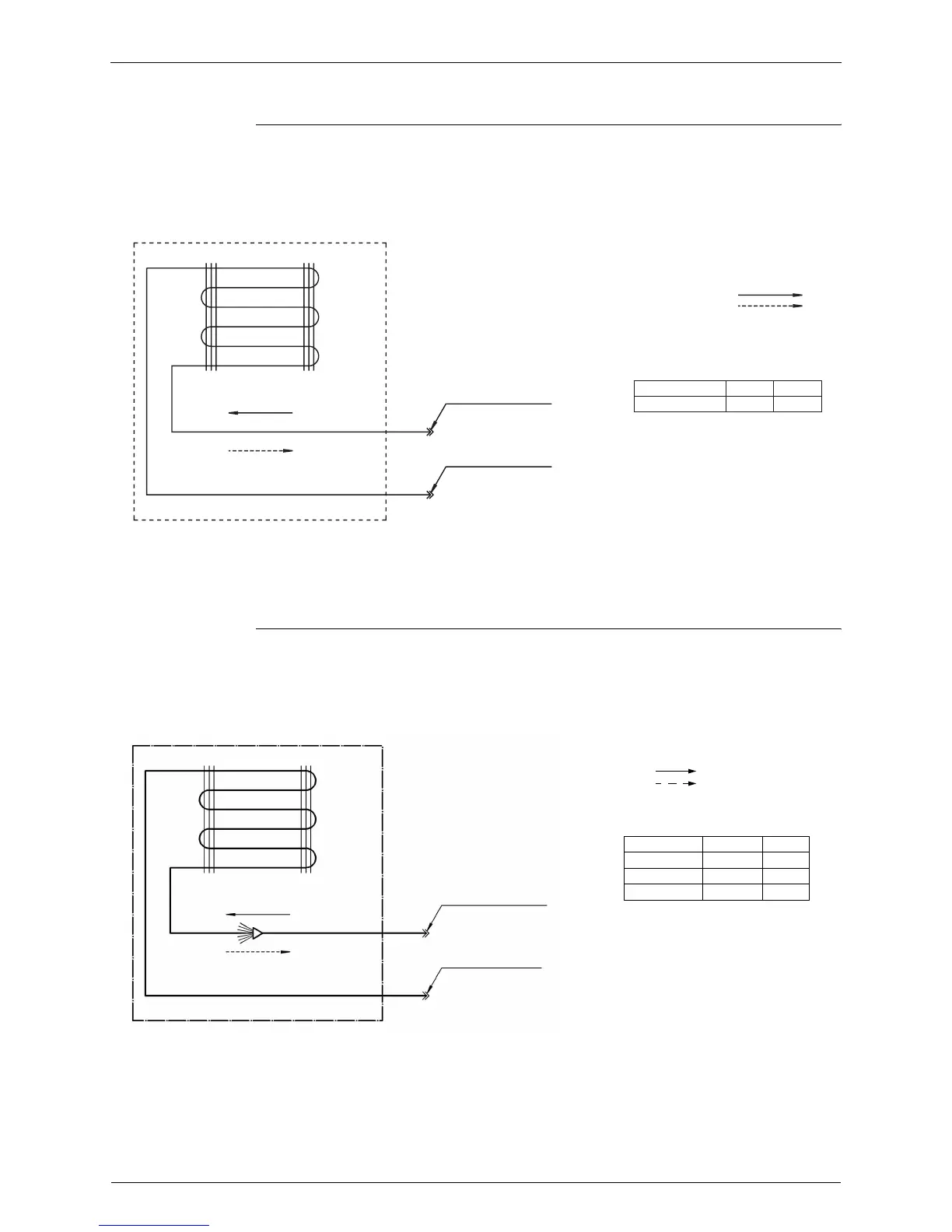

1.2.7 Ceiling Mounted Built-in Type
FDBQ25B8V1
FBQ35/50/60C8VEB
C: 3TW20815-1B
Model
FDBQ25B8V1
Gas
φ9.52
Liquid
φ6.35
Refrigerant pipe connection port diameters
Refrigerant flow
Cooling
Heating
Heat exchanger
Liquid pipe connection port
Gas pipe connection port
C: 3TW31275-1
FBQ35C
FBQ50C
FBQ60C
9.52
12.70
12.70
6.35
6.35
6.35
Refrigerant pipe connection port diameters
Model Gas
Liquid
Liquid pipe connection port
Gas pipe connection port
Heat exchanger
Refrigerant flow
Cooling
Heating
