SiBE121135_A Indoor Unit

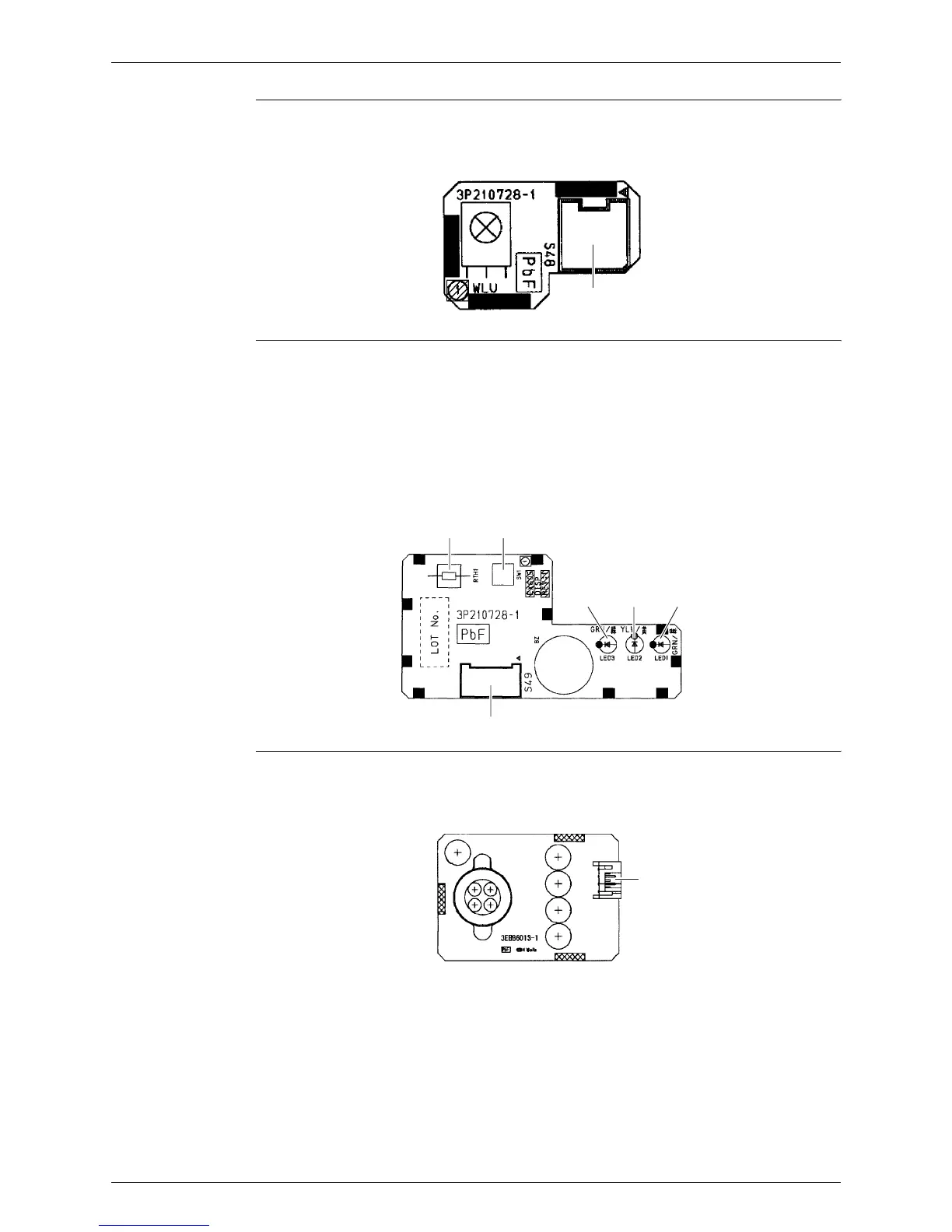

Printed Circuit Board Connector Wiring Diagram 52
Signal Receiver
PCB
Display PCB
INTELLIGENT
EYE Sensor PCB
1) S48 Connector for control PCB
3P210728-1
S48
1) S49 Connector for control PCB
2) SW1 Forced cooling operation [ON/OFF] button
3) LED1 (H1P) LED for operation (green)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for INTELLIGENT EYE (green)
6) RTH1 (R1T) Room temperature thermistor
3P210728-1
RTH1 SW1
LED3 LED2 LED1
S49
1) S26 Connector for control PCB
3EB86013-1
S26
