SiBE121135_A Indoor Unit

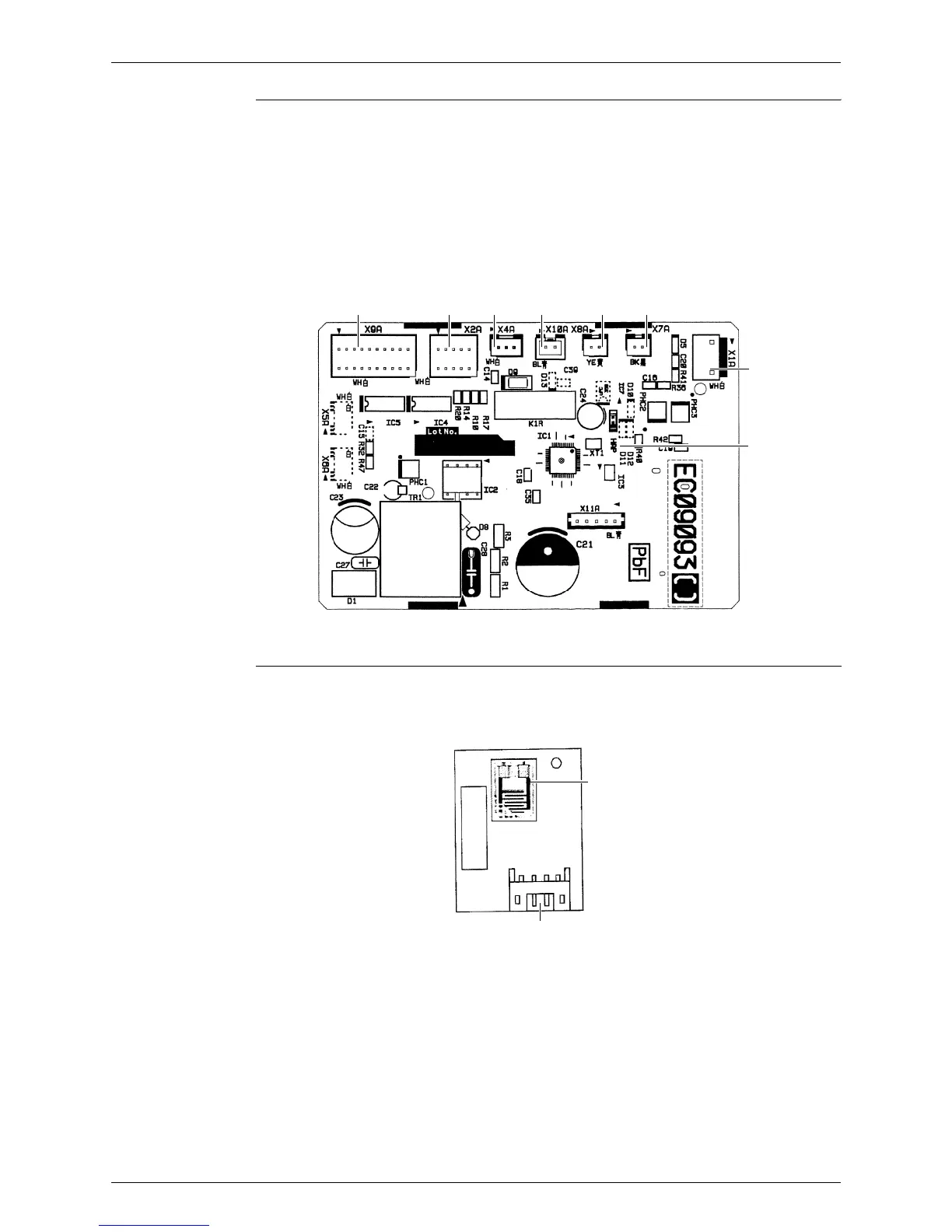

Printed Circuit Board Connector Wiring Diagram 64
[A2P]
[A3P]: Humidity
Sensor PCB
1) X1A, X7A Connector for [A1P]
2) X2A Connector for sensor kit (option)
3) X4A Connector for humidity sensor PCB [A3P]
4) X8A Connector for self-cleaning decoration panel (option)
5) X9A Connector for swing motors
6) X10A Connector for drain pump motor
7) HAP LED for service monitor (green)
X9A X2A X4A X10A X8A X7A
X1A
HAP
2P263045-1
1) CN1 Connector for [A2P]
Humidity
sensor
CN1
4EB86011-3
