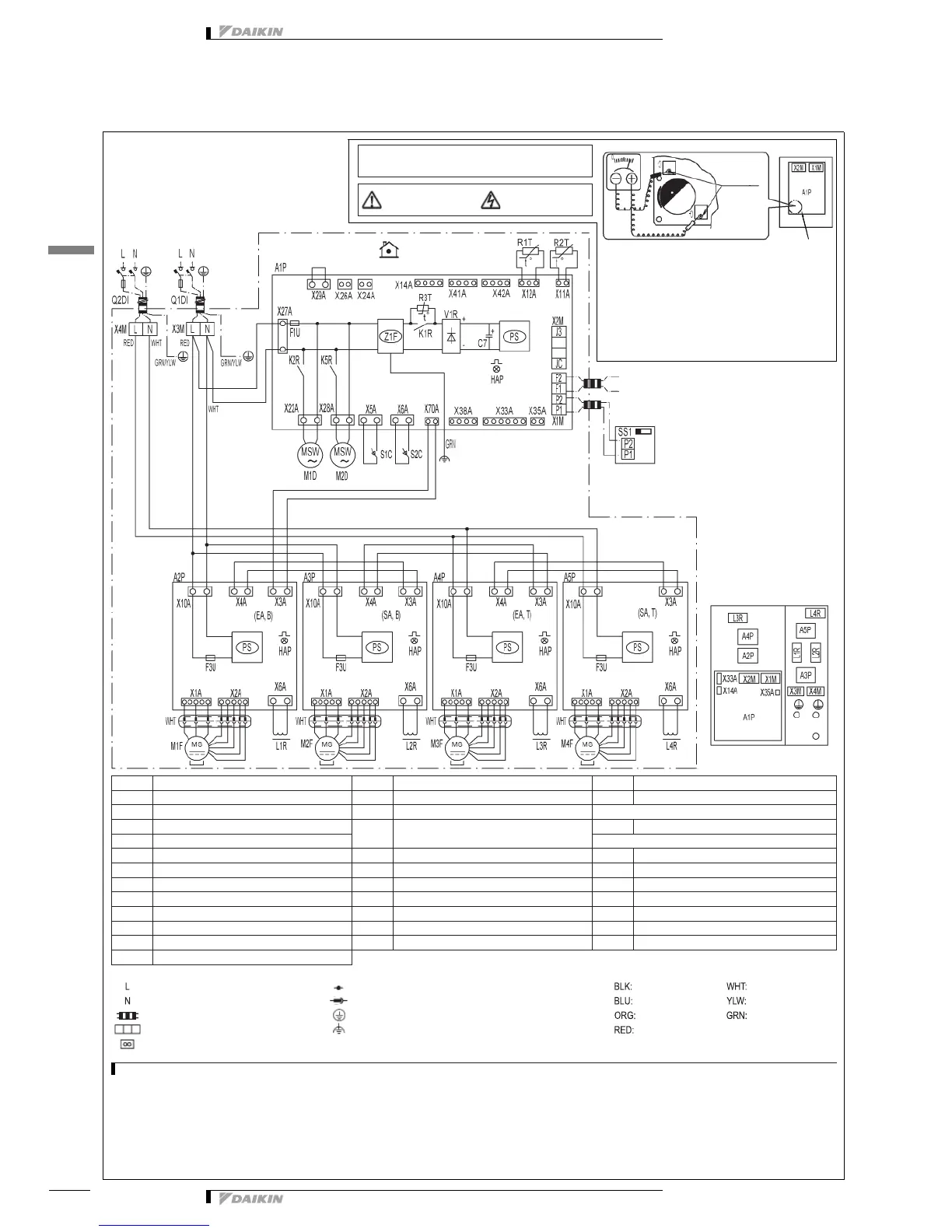

VAM1500-2000FB
NOTES
1 In case you use the central remote control, connect it to the unit in accordance with the attached manual.
2 When connecting the input wires from outside, fresh-up or on/off control operation can be selected. (Contact with a minimum applicable load of 12V DC, 1mA)
3 For details of connection see the attached manual of the option kit.
4 SS1 (A1P) has already been set to “nor.” at factory set. The unit will not run if the setting is changed.
1 Do not open the EL. Compo. box cover for 10 minutes
after the power supply is turned off.
2 After opening the EL. Compo. box, measure the points
shown at the right with a tester and confirm that the
voltage of the capacitor in the main circuit is less than
DC50V
A1P Printed circuit board M4F Motor (Supply air fan) (Top) V1R Diode bridge
A2P - A4P
Printed circuit board assy (Fan)
M1D,M2D
Motor (Damper) Z1F Noise fi lter
A5P Printed circuit board assy (Fan) PS Switching power supply (A1P) REMOTE CONTROL
C1 Capacitor (M1F)
Q1DI,
Q2DI
Field earth leak detector
(Max. 300 mA)
SS1 Selector switch
F1U Fuse T, 6.3A 250V (A1P) CONNECTOR FOR OPTION (See note 3)
F3U Fuse T, 5A, 250V (A1P) R1T Thermistor (Indoor air) X14A Connector (CO
2
sensor)
HAP Pilot lamp (Service monitor - green) R2T Thermistor (Outdoor air) X24A Connector (Outside damper)
K1R Magnetic relay R3T Thermistor (PTC) X26A Connector (Filter sign)
K2R, K5R Magnetic relay S1C, S2C Limit switch damper motor X33A Connector (Contact PCB)
L1R - L4R
Reactor X1M Terminal (A1P) X35A Connector (Appendices PCB)
M1F Motor (Exhaust air fan) (Bottom) X2M Terminal (Outside input) (A1P) X41A Connector (Humidity sensor 1)
M2F Motor (Supply air fan) (Bottom) X3M Terminal (Power supply) X42A Connector (Humidity sensor 2)
M3F Motor (Exhaust air fan) (Top)
: Live : Connection Colors: Black White
: Neutral : Relay connector Blue Yellow
: Field wiring : Protective earth (screw) Orange Green
: Terminal strip : Noiseless earth Red
: Connector
See note 1
Control box
Wired remote control
(opt. accessory)
Indoor
220-240V/220V
~
50/60Hz
Measuring
points for
voltage
Caution when performing service inside the EL. Compo. box
WARNING
Caution for ELECTRIC SHOCK
2D080684A
Printed circuit board
