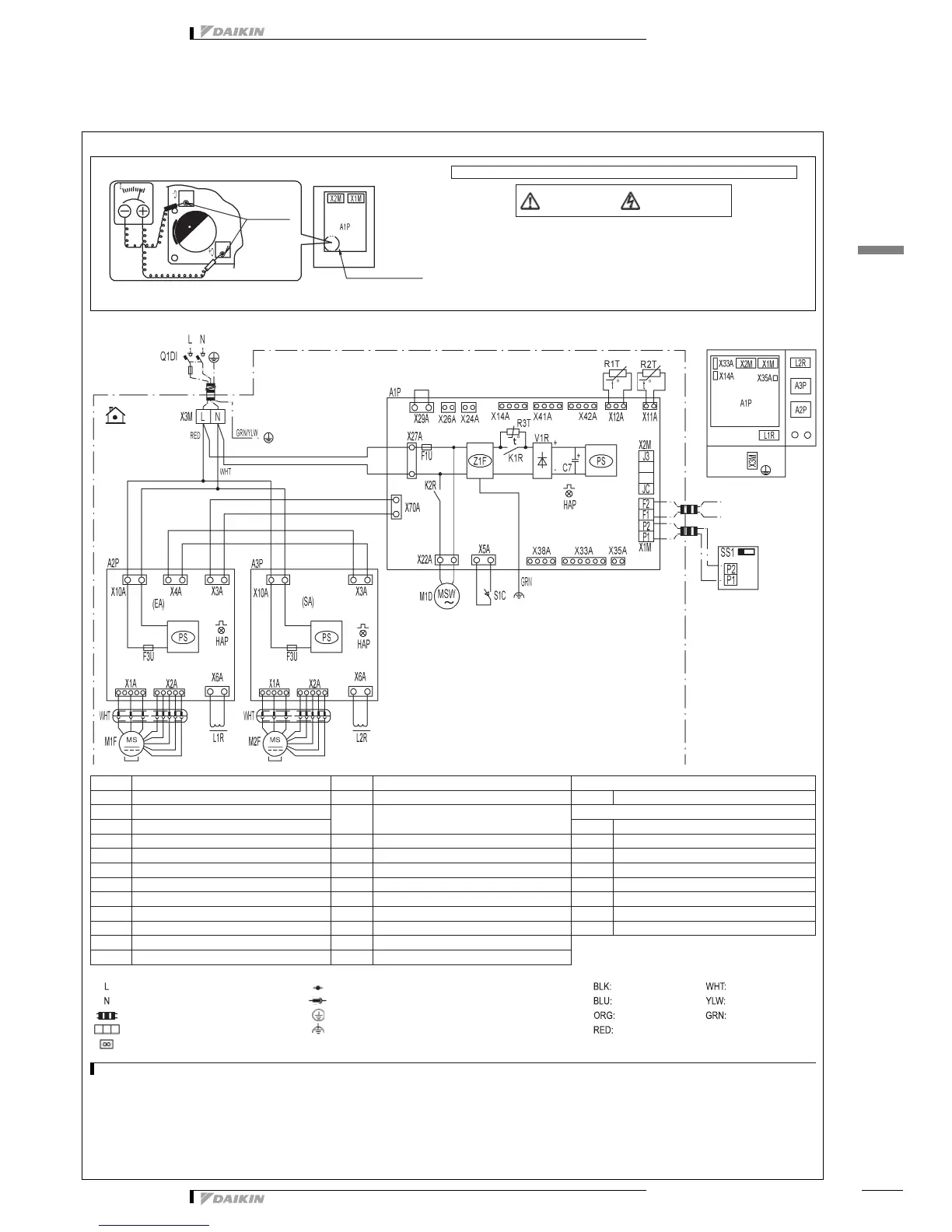

VAM800-1000FB
NOTES
1 In case you use the central remote control, connect it to the unit in accordance with the attached manual.
2 When connecting the input wires from outside, fresh-up or on/off control operation can be selected. (Contact with a minimum applicable load of 12V DC, 1mA)
3 For details of connection see the attached manual of the option kit.
4 SS1 (A1P) has already been set to “nor.” qt factory set. The unit will not run if the setting is changed.
1 Do not open the EL. Compo. box cover for 10 minutes after the power supply is turned
off.
2 After opening the EL. Compo. box, measure the points shown at the right with a tester
and confirm that the voltage of the capacitor in the main circuit is less than DC50V
A1P Printed circuit board M1D Motor (Damper) REMOTE CONTROL
A2P Printed circuit board assy (Fan) PS Switching power supply (A1P) SS1 Selector switch
A3P Printed circuit board assy (Fan)
Q1DI
Field earth leak detector
(Max. 300 mA)
CONNECTOR FOR OPTION (See note 3)
C1 Capacitor (M1F) X14A Connector (CO
2
sensor)
F1U Fuse T, 6.3A 250V (A1P) R1T Thermistor (Indoor air) X24A Connector (Outside damper)
F3U Fuse T, 5A, 250V (A1P) R2T Thermistor (Outdoor air) X26A Connector (Filter sign)
HAP Pilot lamp (Service monitor - green) R3T Thermistor (PTC) X33A Connector (Contact PCB)
K1R Magnetic relay S1C Limit switch damper motor X35A Connector (Appendices PCB)
K2R Magnetic relay X1M Terminal (A1P) X38A Connector (Multi tenant)
L1R Reactor X2M Terminal (Outside input) (A1P) X41A Connector (Humidity sensor 1)
L2R Reactor X3M Terminal (Power supply) X42A Connector (Humidity sensor 2)
M1F Motor (Supply air fan) V1R Diode bridge
M2F Motor (Exhaust air fan) Z1F Noise fi lter
: Live : Connection Colors: Black White
: Neutral : Relay connector Blue Yellow
: Field wiring : Protective earth (screw) Orange Green
: Terminal strip : Noiseless earth Red
: Connector
Printed circuit board
See note 1
Control box
Wired remote control
(opt. accessory)
Indoor
220-240V/220V
~
50/60Hz
Measuring points
for voltage
Caution when performing service inside the EL. Compo. box
WARNING
Caution for ELECTRIC SHOCK
