Daikin VRV III - Piping Diagrams

Piping Diagrams ED34-862
130 FXCQ-M

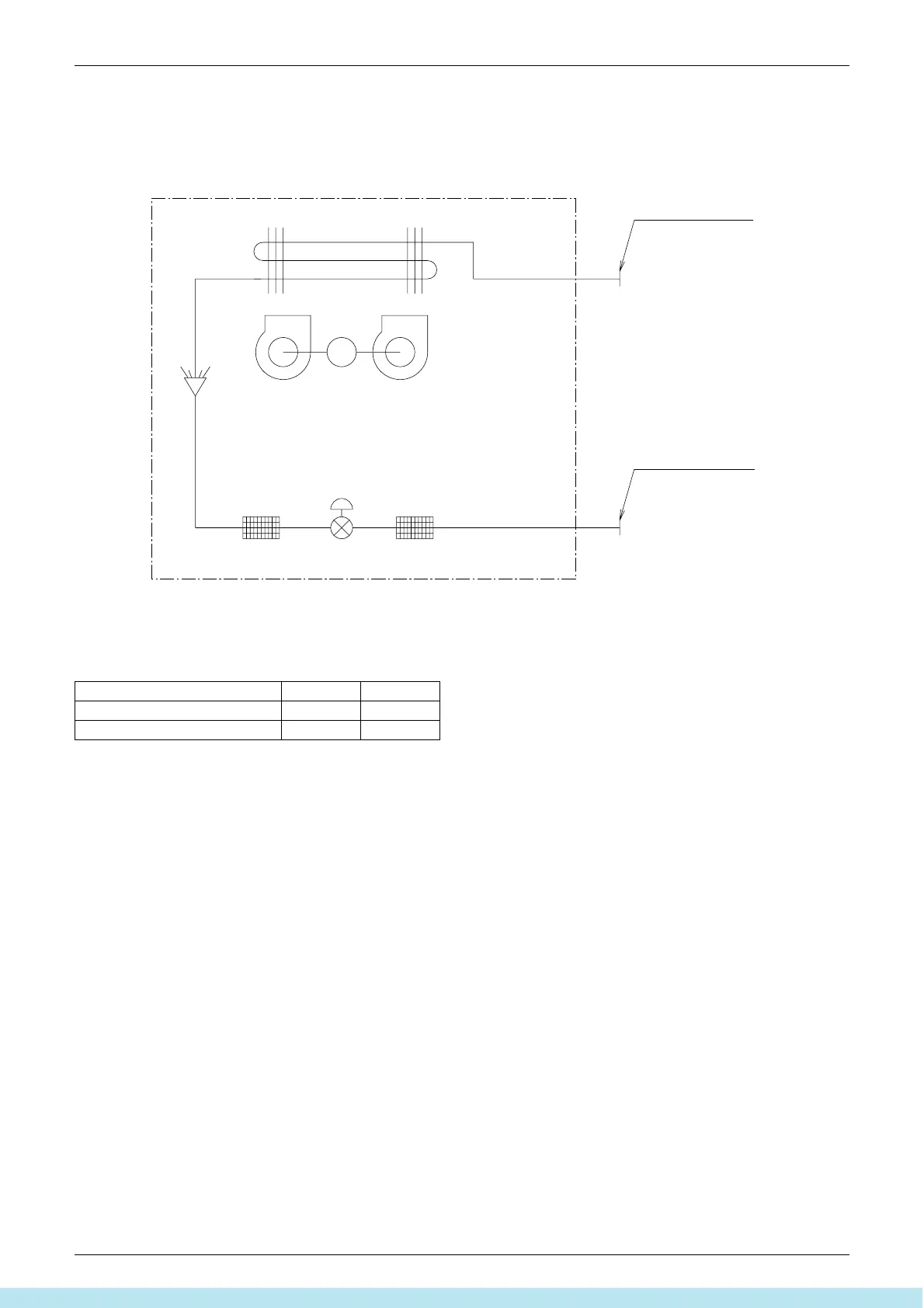

4. Piping Diagrams
 Refrigerant pipe connection port diameters
Electronic
expansion valve
Filter
M
Heat exchanger
Filter
Fan
Liquid pipe
connection port
Gas pipe
connection port
4D034245C
(mm)
Model Gas Liquid
FXCQ20 · 25 · 32 · 40 · 50M
φ12.7 φ6.4
FXCQ63 · 80 · 125M
φ15.9 φ9.5
