Daikin VRV III - Installation

ED34-862 Installation
FXKQ-MA 153
4

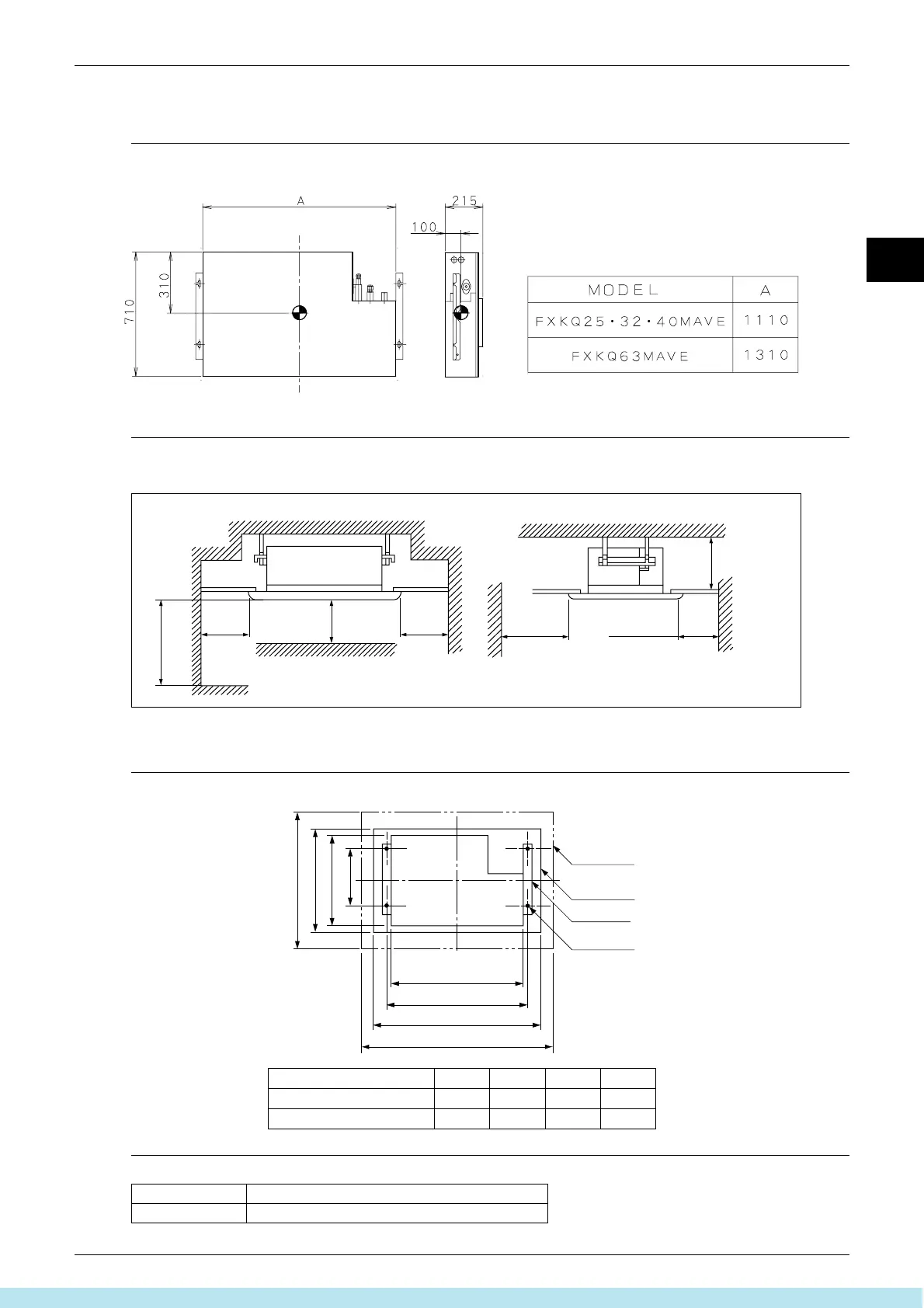

9. Installation
Center of Gravity
Service Space
Note:
Above figure means minimum value. Please keep these value at least.
Bolt Pitch
3P086156-8V
Drain Pump Kit
Unit (mm)
Model A B C D
FXKQ25 · 32 · 40MAVE 1110 1150 1200 1240
FXKQ63MAVE 1310 1350 1400 1440
Indoor unit Drain pump kit
FXKQ-MA Standard (Equipped with indoor unit)
C : 4D037079A
Unit (mm)
200
or more
200
or more
1000
or more
2500 or more
For installation in high places
20 or more
(Suction side)(Discharge side)
220
or more
1500
or more
3P086156-8V
D
C
B
A
800 760 710
350
Decoration
panel
Indoor unit
Suspension
bolt (×4)
Ceiling
opening
