Daikin VRV III - Piping Diagrams

ED34-862 Piping Diagrams
FXHQ-MA 321
9

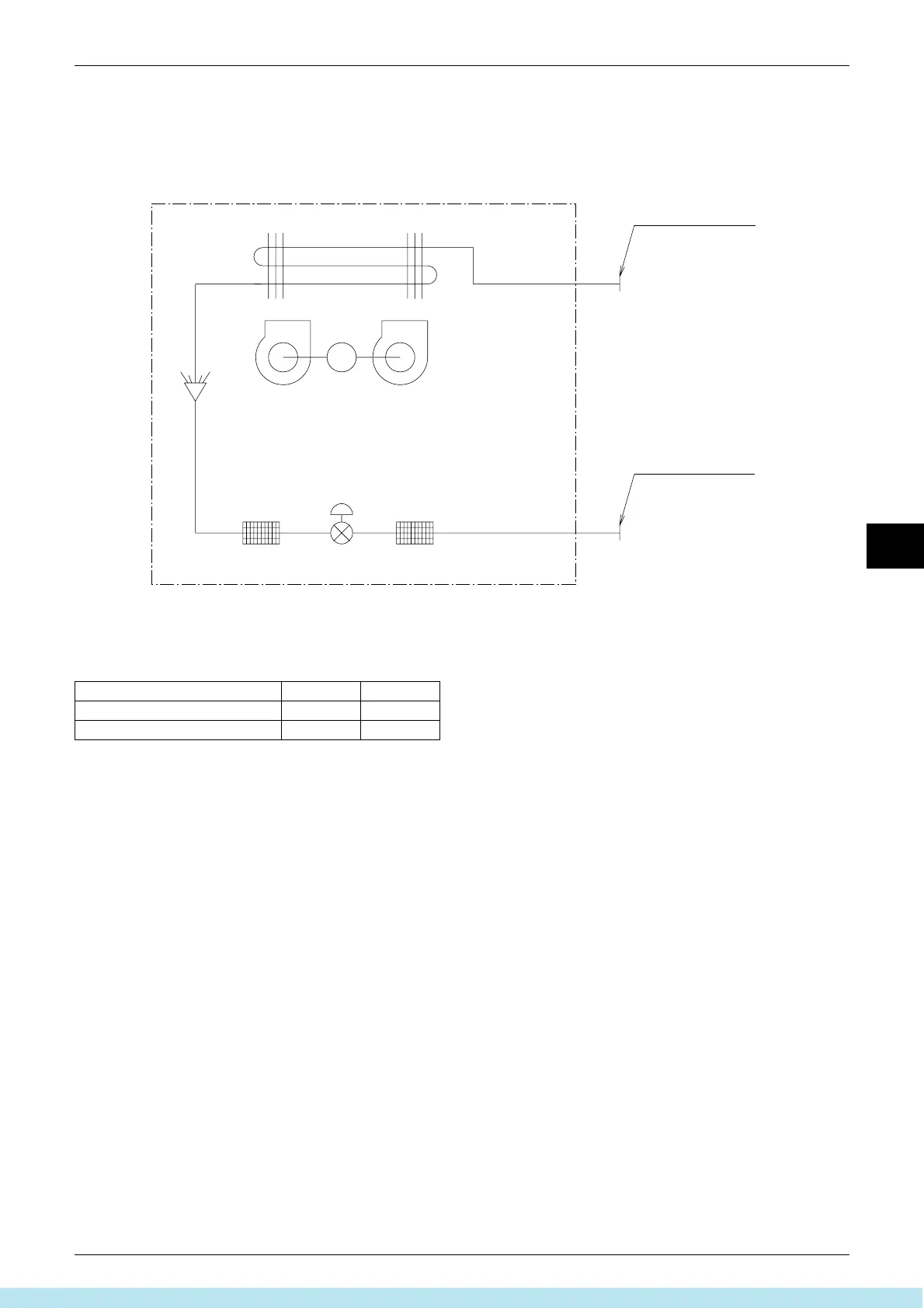

4. Piping Diagrams
 Refrigerant pipe connection port diameters
Electronic
expansion valve
Filter
M
Heat exchanger
Filter
Fan
Liquid pipe
connection port
Gas pipe
connection port
4D034245C
(mm)
Model Gas Liquid
FXHQ32MA
φ12.7 φ6.4
FXHQ63 · 100MA
φ15.9 φ9.5
