148 FXKQ-MA

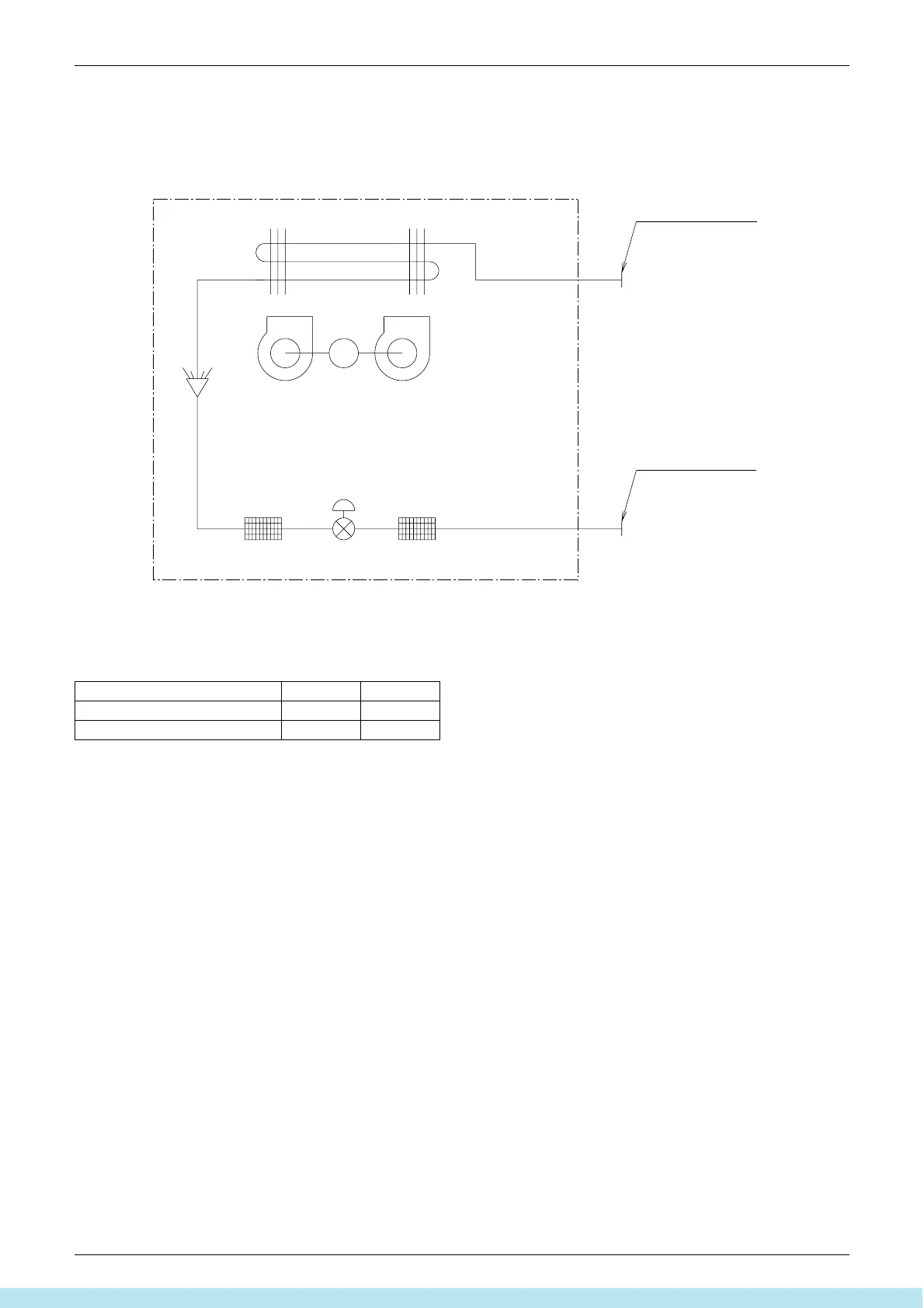

4. Piping Diagrams
 Refrigerant pipe connection port diameters
Electronic
expansion valve
Filter
M
Heat exchanger
Filter
Fan
Liquid pipe
connection port
Gas pipe
connection port
4D034245C
(mm)
Model Gas Liquid
FXKQ25 · 32 · 40MA
φ12.7 φ6.4
FXKQ63MA
φ15.9 φ9.5
