Features ED34-862
418 FXMQ-MF
1. Features
Combine fresh air treatment
and air conditioning,
supplied from a single system.
Outdoor-Air Processing Unit
FXMQ125MFV1, FXMQ200MFV1,
FXMQ250MFV1
Model Names
Fresh air treatment and air conditioning
can be achieved with
a single system by using heat pump
technology—without the usual
troublesome air supply and air
discharge balance design. Fan coil
units for air conditioning and
an outdoor-air processing unit can be
connected to the same refrigerant line.
The results are enhanced design
flexibility and a significant reduction in
total system costs.

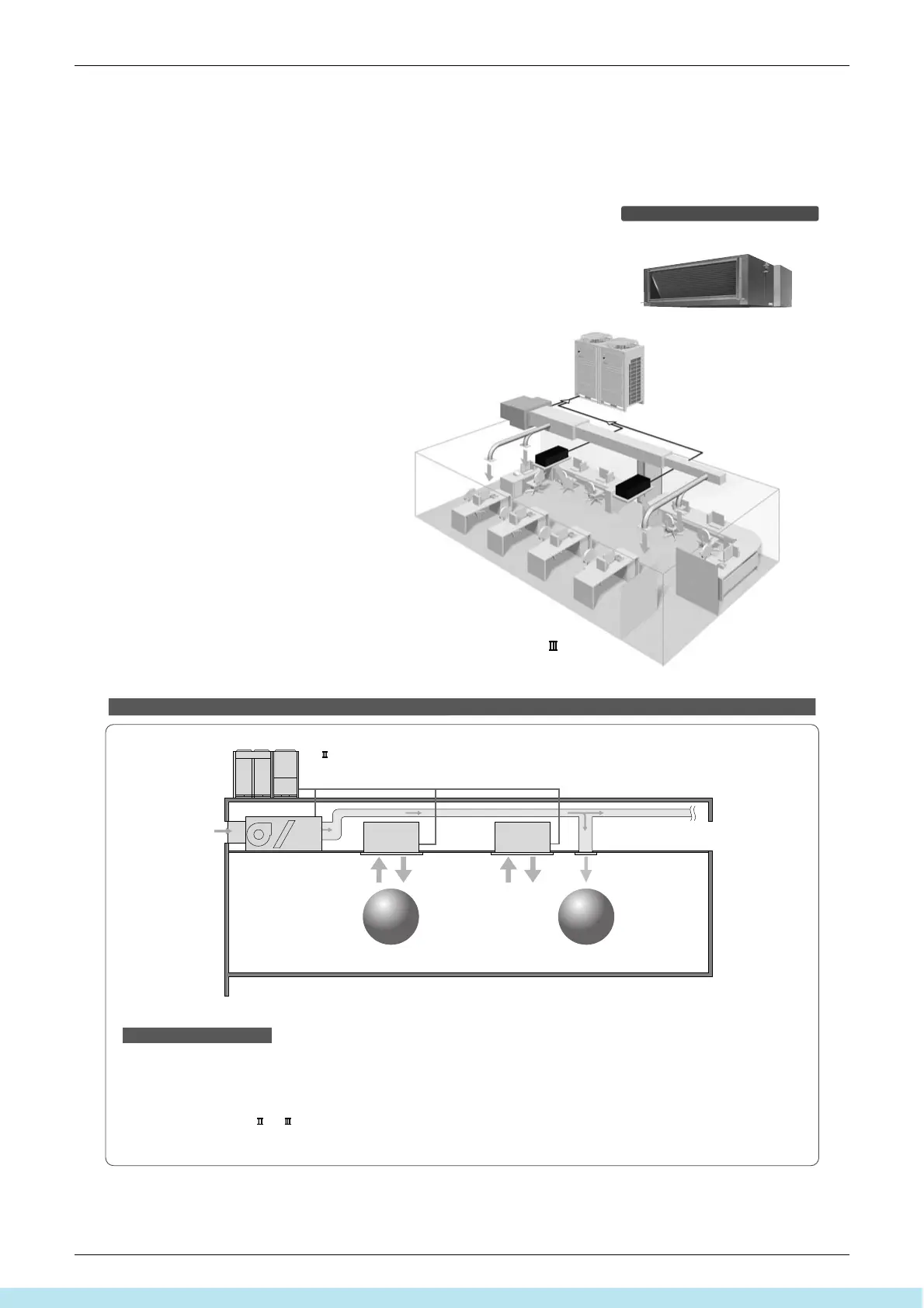

Combination with VRV
Outdoor-Air Processing Unit
Indoor Unit Indoor Unit
VRV Series
Outdoor Units
Air
Conditioning
Outdoor
Air Supply
The following restrictions must be observed in order to maintain the indoor units connected to the same system.
Connection Conditions
• When outdoor-air processing units are connected, the total connection capacity must be within 50% to 100% of that of the outdoor units.
• When outdoor-air processing units and standard indoor units are connected, the total connection capacity of the outdoor-air processing units must not exceed 30% of that of the
outdoor units.
• Outdoor-air processing units can be used without indoor units.
• Connectable outdoor units: VRV and systems.
50 Hz only
For outdoor units of 8 HP and above
Air conditioning and outdoor air processing can be accomplished using a single system.
