Features ED34-862
30 General Information

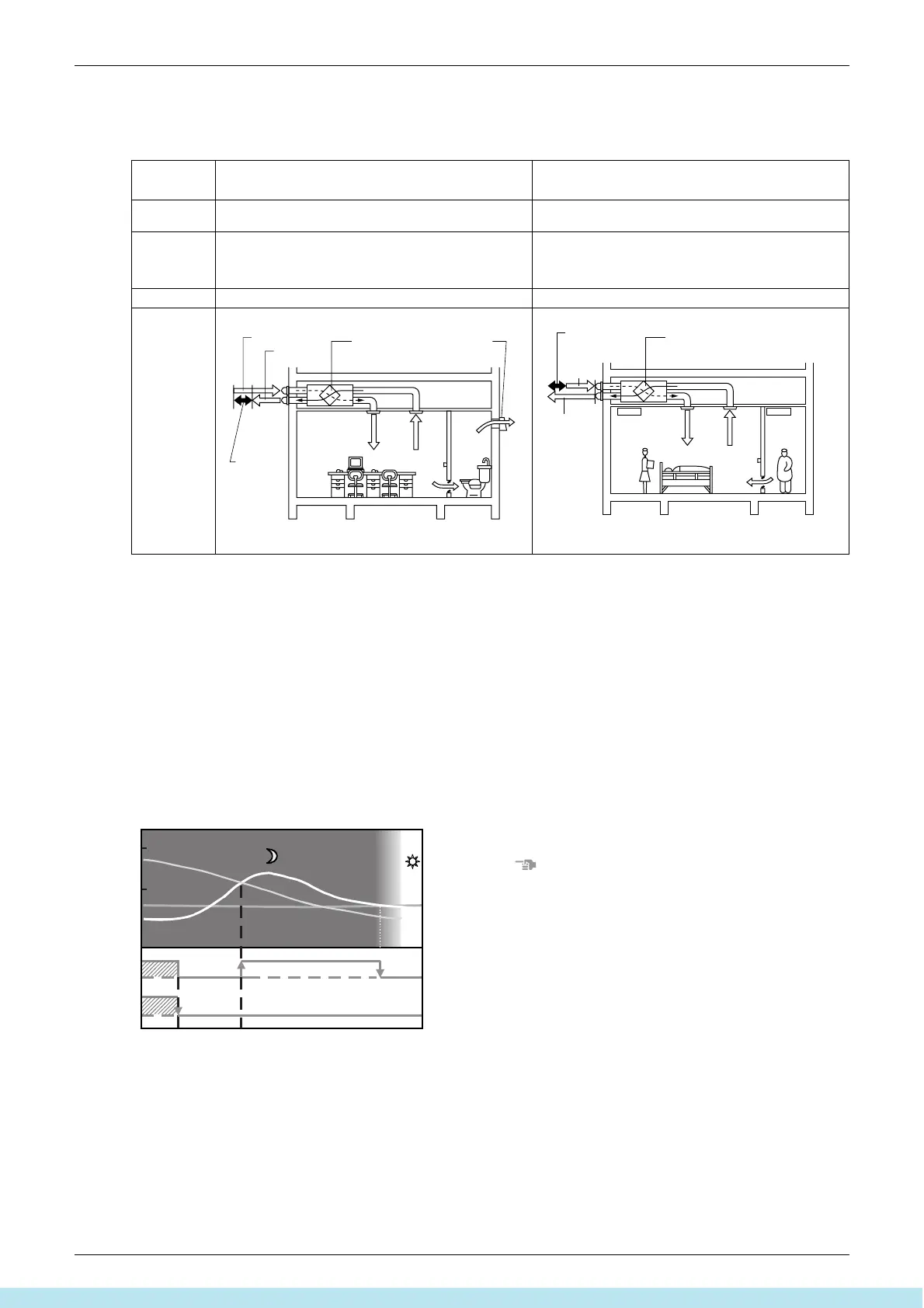

FRESH-UP Operation
Both the excessive supply mode and the excessive exhaust mode are selectable.
This function creates a more comfortable air environment.
Supply Fresh-up
(Excessive outdoor air supply)
Exhaust Fresh-up
(Excessive exhaust air supply)
Detail
Supply air volume can be set at a higher level than the
exhaust air by the remote controller.
Exhaust air volume can be set at a higher level than the
supply air by the remote controller.
Major
effects
Prevents inflow of toilet odor
Prevents inflow of outdoor air in winter
Prevents outflow of airborne bacteria from rooms in a
hospital
Prevents outflow of odors from rooms in a nursing
home
Application Offices, etc. Hospitals, Nursing homes, etc.
Example
Nighttime free cooling operation
〈AUTOMATIC HEAT PORGE FUNCTION AT NIGHT〉
The nighttime free cooling is an energy-conserving function
which works at night when the air conditioners is off, reducing
the cooling load in the morning when the air conditioner is
turned on by ventilating rooms which contain office
equipment which raises the room temperature.
• Nighttime free cooling only works during cooling and
when connected to Building Multi or VRV systems.
• Nighttime free cooling is set to “off” in the factory settings;
so request your dealer to turn it on if you intend to use it.
Operation image
(a) Outside temperature
(b) Indoor temperature
(c) Set temperature
(d) Operating state of Air conditioner
(e) Operating state of Total heat exchanger
EXPLANATION OF NIGHTTIME FREE COOLING
OPERATION IMAGE
The unit compares the indoor and outdoor temperatures
after the air conditioning operation stops for the night. If
the following conditions are satisfied, the operation starts,
and when the indoor temperature reaches the air
conditioning setting, the operation stops.
<Conditions>
1. the indoor temperature is higher than the air conditioning
setting and
2. the outdoor temperature is lower than the indoor
temperature,
If the above conditions are not satisfied, revaluation is made
every 60 minutes.
NOTE
• The nighttime free cooling operation works when the HRV
unit is off. Therefore, it is not possible to stop the nighttime
free cooling operation, though the forced off is input from
the optional controllers for centralized control.
Air supply
Air exhaust
HRV
Normal
ventilation fan
Portion of
fresh up
operation
ex. <Office>
(HC0009)
Floor areaSick room
Portion of
exhaust operation
HRV
Air supply
Air exhaust
ex. <Hospital>
(HC0010)
OFF
ON
ON
OFF
OFF
OFF
40
30
20
(time)
Following morning
22:00 24:00
(d) (e)
Operating state Temperature (˚C)
Nighttime free cooling operation
(a)
(b)
(c)
