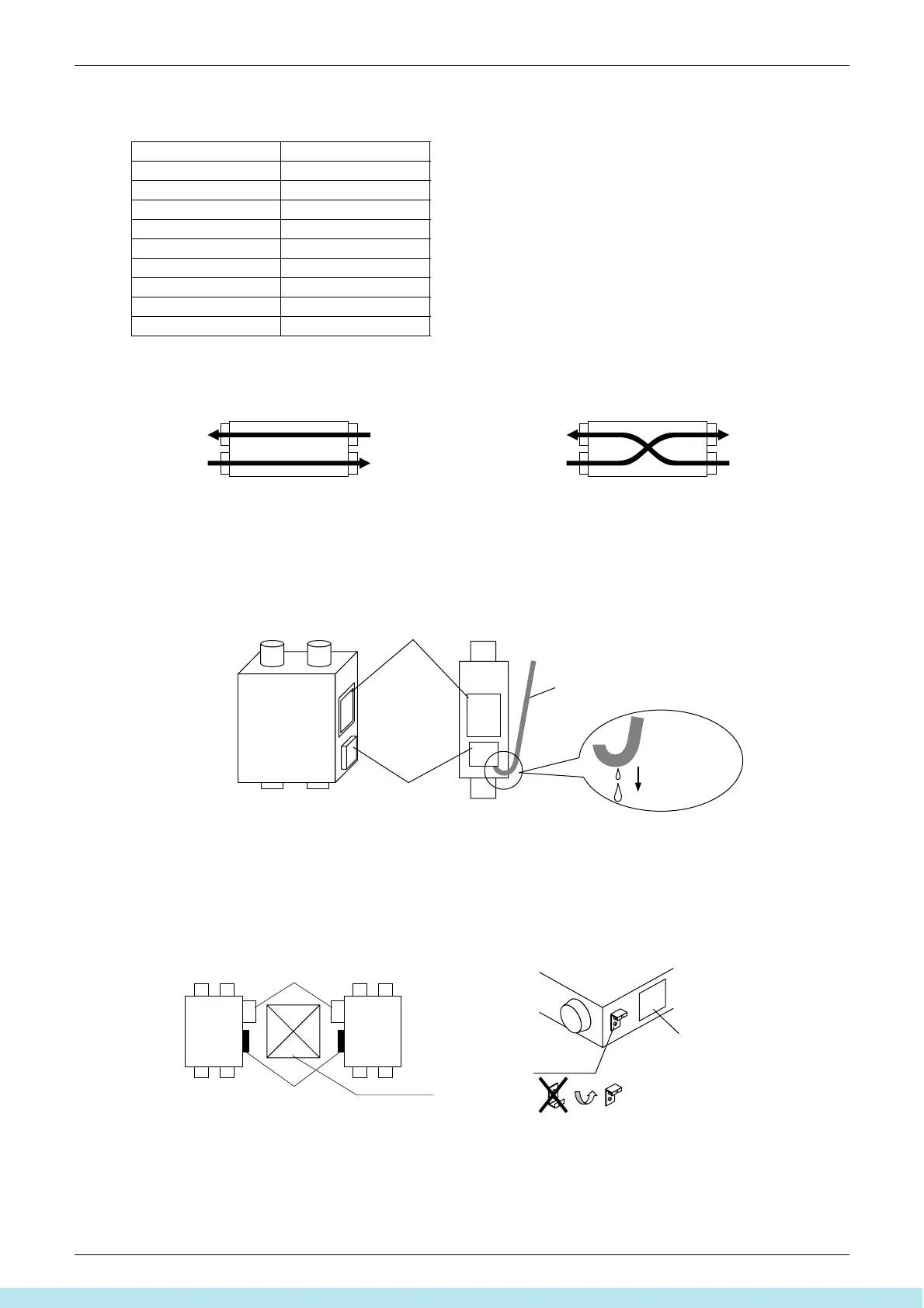

Features ED34-862
32 General Information
Easy installation and service maintenance
Downsized
Model name Height (mm)
VAM150GJVE 278
VAM250GJVE 278
VAM350GJVE 306
VAM500GJVE 306
VAM650GJVE 338
VAM800GJVE 387
VAM1000GJVE 387
VAM1500GJVE 785
VAM2000GJVE 785
Parallel air flow system (Daikin)
This system prevents misconnection and simplifies the
installation work
Cross air flow system
Service Maintenance
Vertical installation is available.
The unit must be installed with the side of RA, SA down.
It is necessary to make a trap.
Because the trap of wiring can protect against ingress of water.
Upside-down installation is available.
It allows the common use of the inspection hole and reduces the space and installation work.
For 2 units closely installed, only one inspection hole of 450 × 450 mm will do for maintenance or replacement of the
heat exchanger element, etc.
Long life filter is equipped.
SA
RA
EA
OA
(HC0234)
SA
RA
EA
OA
(HC0235)
EA OA
RA SA
Maintenance cover
Control box
Wiring
Trap
Water falls down.
Inspection hole
Maintenance cover
Control box
Maintenance cover
Celling hock
In the case of upside-down
installation, take a turn 180˚
the celling hocks.
