Features ED34-862
38 General Information
6.8.6 Easy Installation
6.8.6.1 Integrated System Includes Ventilation, Air Conditioning and Humidifying Operations
Rather than using separate ventilation, air conditioning, and humidifying components, the system incorporating HRV
(VKM) integrates all functions, reducing the total number of indoor units and facilitating a far simpler system. The
installation space becomes smaller and the labor required for installation and maintenance is reduced significantly.
6.8.7 Other Features
6.8.7.1 Interlocked Operation with VRV
1. Simultaneous ON / OFF with the indoor unit by the indoor unit remote controller.
2. HRV independent operation during air conditioning off season by the indoor unit remote controller.
3. Automatic ventilation mode changeover : Auto / Heat Recovery / Bypass
4. Fan speed changeover by the indoor unit remote controller : High / Low, Ultra-High / High
5. FRESH-UP operation setting
6. Filter sign display notifies the time for cleaning the filter.
7. No need to purchase or install the HRV exclusive remote controller
8. Advantage to IAQ (Internal Air Quality)
Note
4-6 can be set at the initial setting only. (When using the remote controller BRC1C62)
Note
1) In case of the direct duct connection system, operate interlocking with indoor units.
2) Do not connect the duct with discharge air side of indoor units.
Type Interlocked operation with air conditioner
Structure
Features
• Simultaneous operation by air conditioner’s remote controller is available.
• Fan speed can be set at the initial setting.
Connectable Indoor unit VRV (all indoor unit)
Daikin’s HRV Other types
Dust does not fall off from the air filter because the air supply fan
of the interlocked indoor unit remains activated even when the
HRV is operated independently.
If conventional HRV, with exclusive remote controller, is directly
connected to indoor unit of air conditioner, dust may fall off from
air filter when air conditioner is OFF.
● Conventional
system
● New system
The VRV III
outdoor unit
Standard indoor unit
VKM100GMV1
P56 P56 P56 P56
Standard indoor unit
HRV
(1,000 CMH)
Humidifier
Outdoor
unit
P56 P56 P56 P56 P56

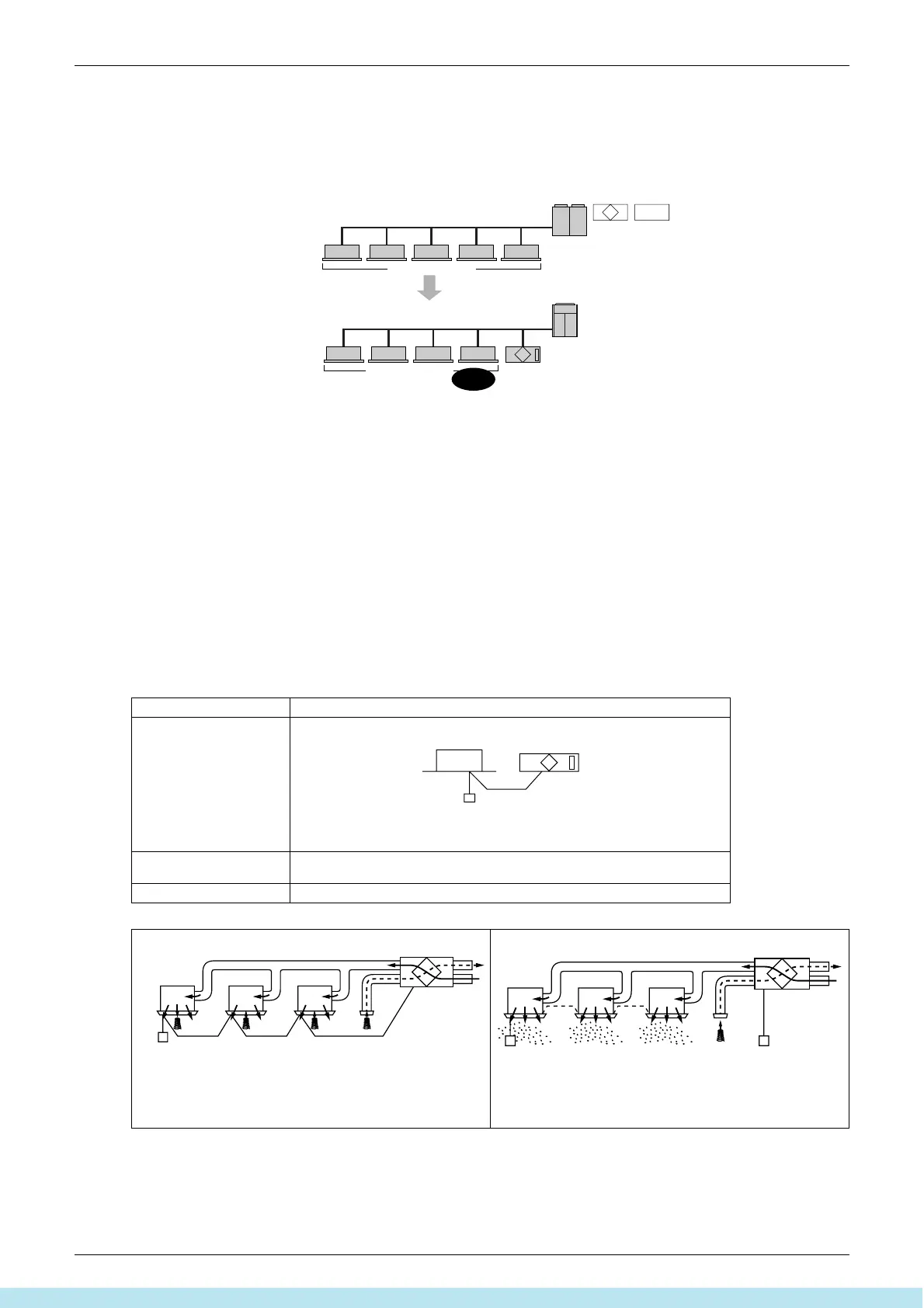

Ventilation, air conditioning,
and humidifying in a single system
One fewer
unit!
Indoor
unit
Remote
Controller
HRV (VKM)
(HC0228)
FAN mode No falling of dust
(HC0006)
OFF Dust
(HC0005)
