Daitsu DS-9KIDR - Top View

Air Conditioner Service Manual
11
18K

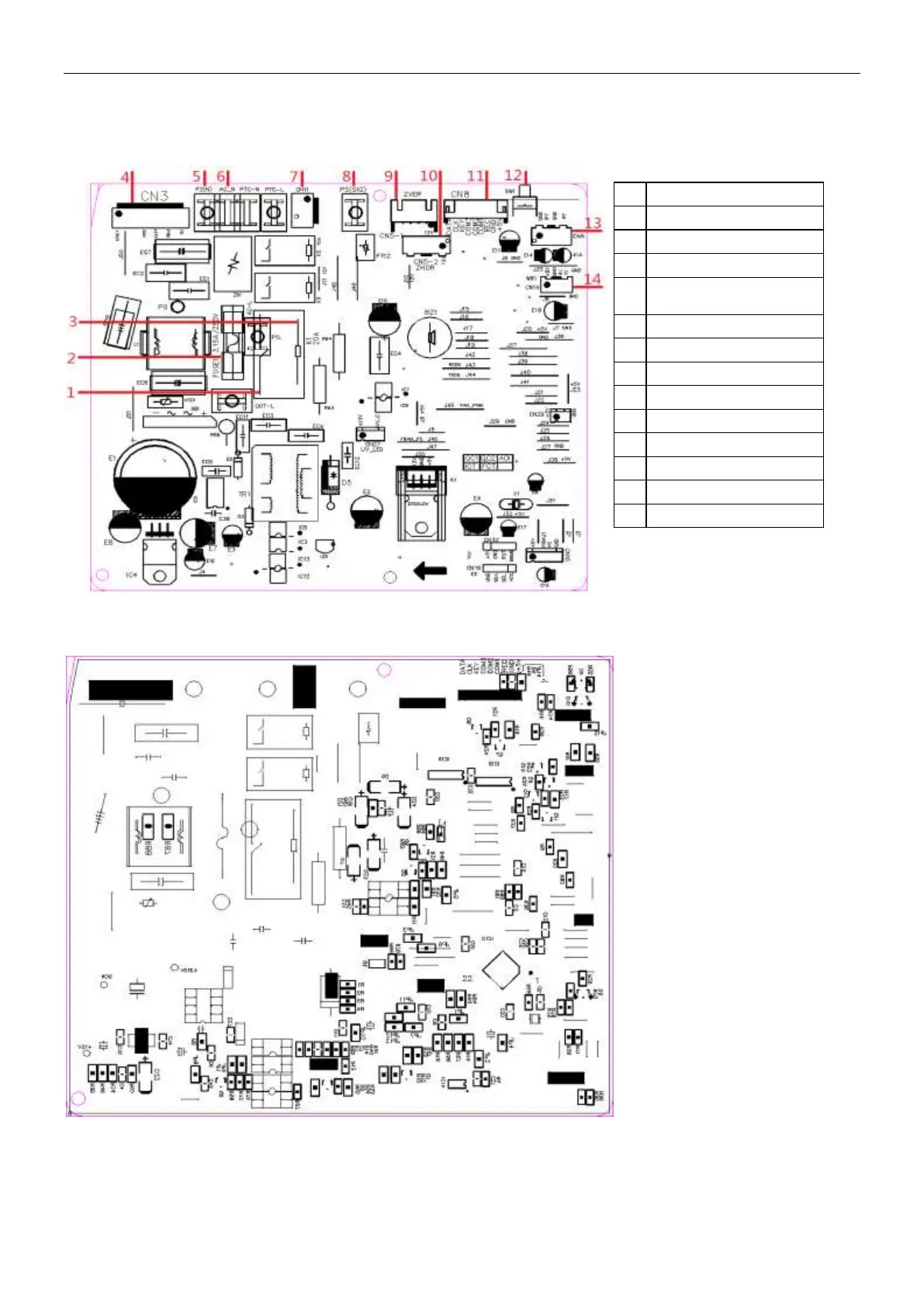

Top view
Bottom view
1
ODU AC power output
2
Fuse
3
ODU AC power input
4
DC fan motor connection
5
IDU/ODU wiring connection --N
connector
6
Power supply --N connector
7
Anion connector
8
IDU/ODU communication wiring
9
Left-Right swing connector
10
Up-Down swing connector
11
Display
12
Emergency button
13
Temperature sensor connection
14
WIFI connection
