Daitsu DS-9KIDR - Electric Diagram; 5.1 Wiring Diagrams

Air Conditioner Service Manual
8
5. Electric Diagram

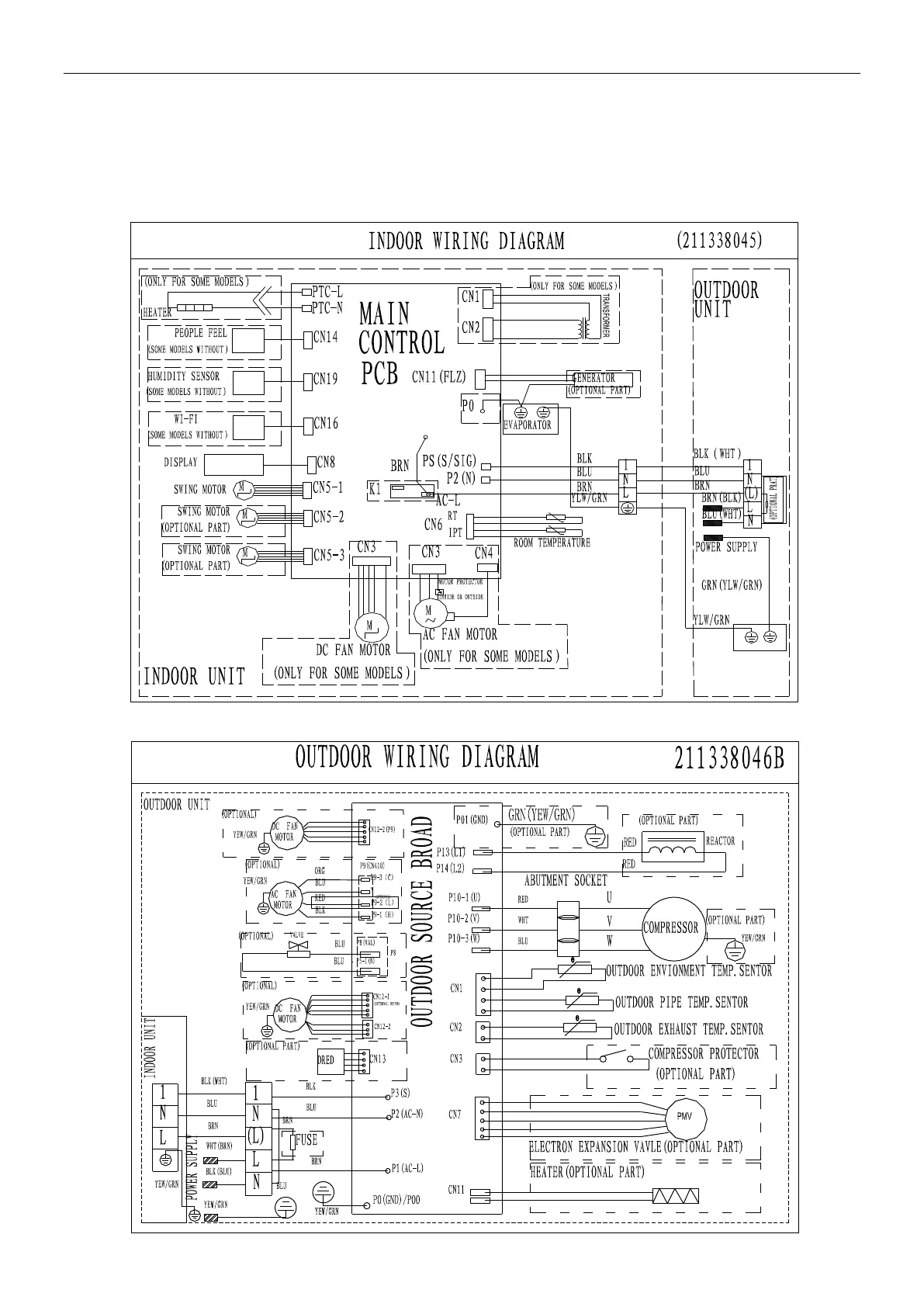

5.1 Wiring diagram
MODEL: DS-9KIDR(W)/ DOS-9KIDR(W), DS-12KIDR(W)/ DOS-12KIDR(W), DS-18KIDR(W)/ DOS-18KIDR(W),
DS-9KIDT-2(W)/ DOS-9KIDT-2(W), DS-12KIDT-2(W)/ DOS-12KIDT-2(W),
DS-18KIDT(W)/ DOS-18KIDT(W)
INDOOR UNIT：
OUTDOOR UNIT
