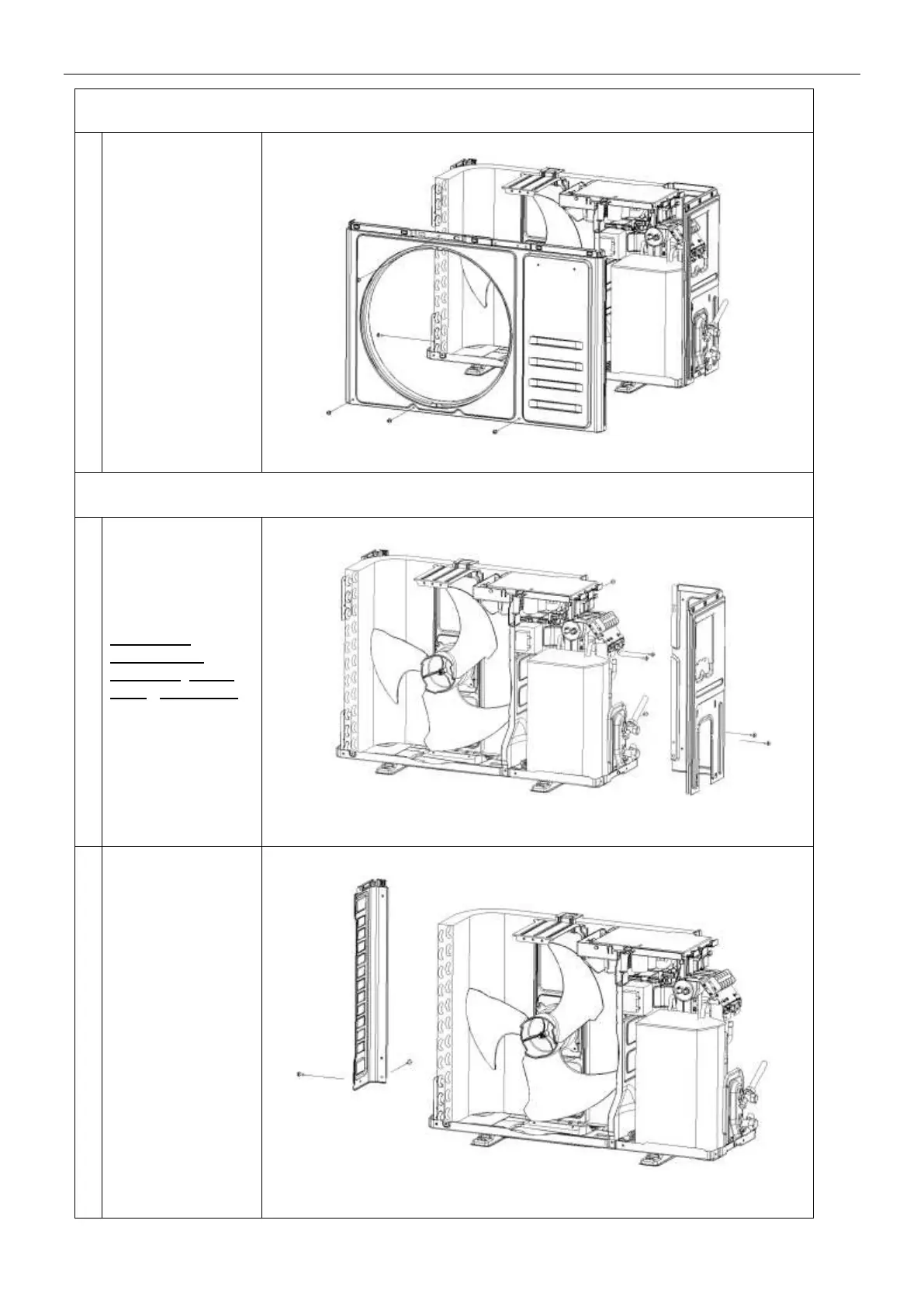

step2：Disassemble the Fan Guard and Front Panel
A
Unfix screws on
front panel with fan
guard, ODU middle
separate plate and
base plate, uplift
front panel you can
take it out from unit.
step3：Disassemble the Left and Right plate.
A
Unfix screws btw
Right Plate and the
Electric Box
assembly, Valve
Plate , Base Plate,
then you can take
the Right plate out.
B
Unfix screws btw
Left Plate, Base
plate and
Condenser plate,
you can take the left
plate out.
