Daitsu DS-9KIDR - 2. Installation Process

Air Conditioner Service Manual
31
2 Installation

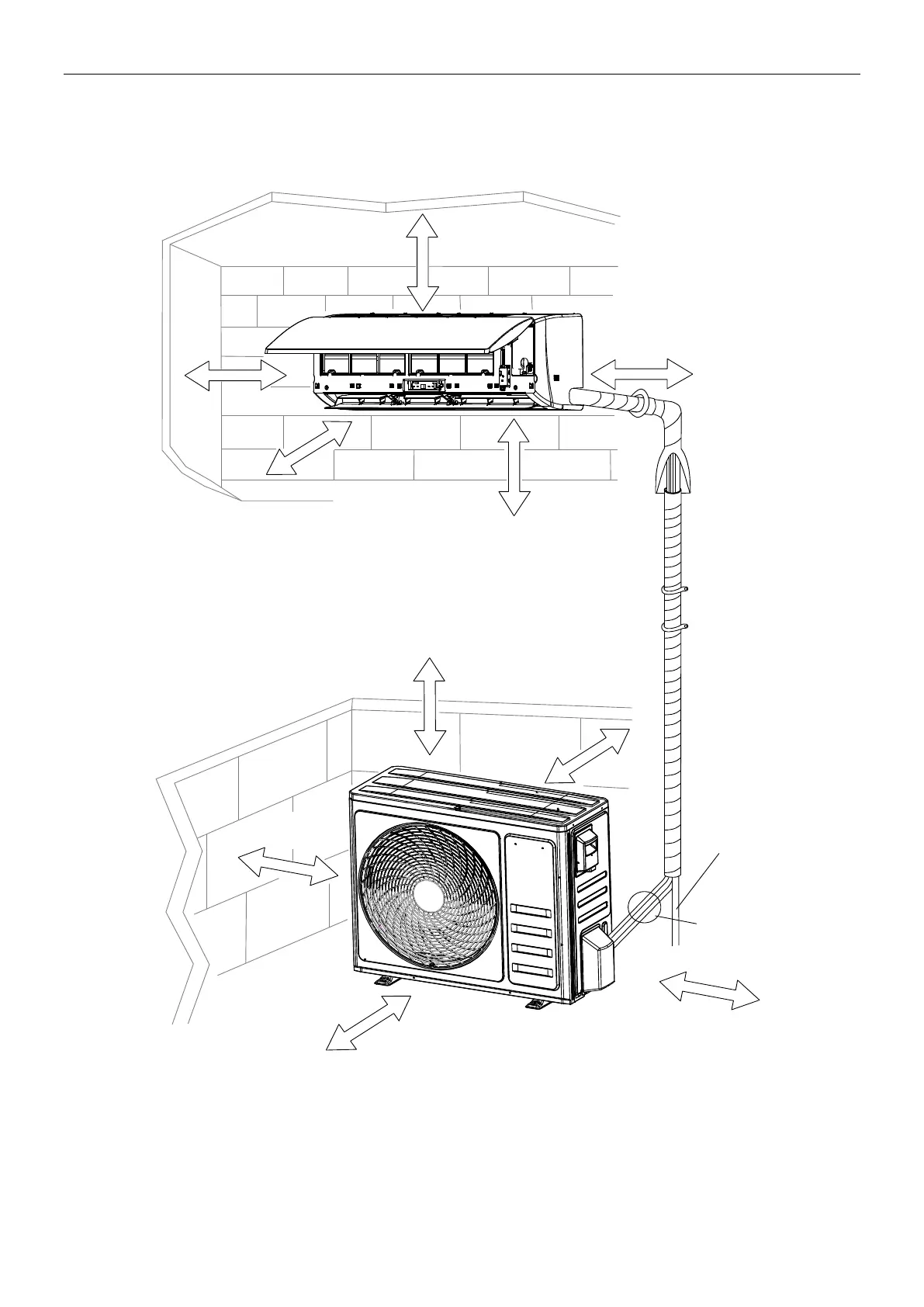

2.1 Installation Dimension Diagram
Space to the ceilling
At least 15cm
At least 15cm
At least 300cm
Space to the wall
At least 15cm
Space to the wall
Space to the obstruction
At least 250cm
Space to the floor
At least 50cm
Space to the obstruction
At least 30cm
Space to the obstruction
At least 30cm
Space to the wall
Space to the obstruction
At least 200cm
At least 30cm
Space to the obstruction
Drainage pipe
Connecting wire
